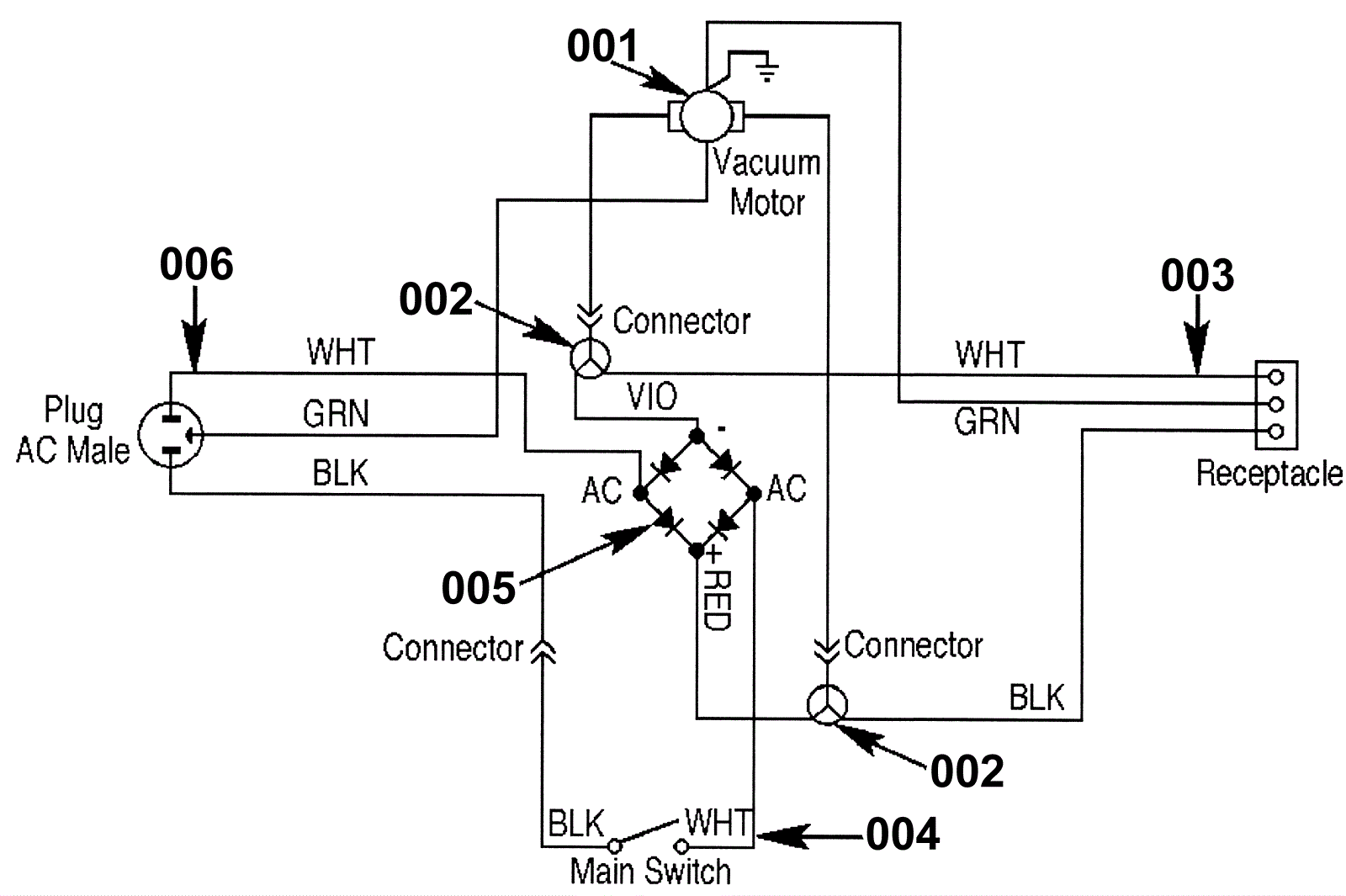

GOVAC Wiring Diagram-120V(400hz)

#PartDescriptionPriceReqNotesAvailability
001a 272-2038 Vacuum motor assembly (OBSOLETE) $5.94 1 usually ships 1-5 days
001a 272-2038 Vacuum motor assembly (OBSOLETE) $5.94 1 usually ships 1-5 days
001b 991-1205 120V 2 stage vacuum motor peripheral $135.86 1 ships same day
001b 991-1205 120V 2 stage vacuum motor peripheral $135.86 1 ships same day
001c 172-6012 Carbon brush (pkg of 2) $16.50 1 usually ships 16-41 days
001c 172-6012 Carbon brush (pkg of 2) $16.50 1 usually ships 16-41 days
002 272-2041 1/4 Receptacle tab (OBSOLETE) $7.30 2 usually ships 1-5 days
002 272-2041 1/4 Receptacle tab (OBSOLETE) $7.30 2 usually ships 1-5 days
003 272-2042 Cord set (OBSOLETE) $16.63 1 usually ships 1-5 days
003 272-2042 Cord set (OBSOLETE) $16.63 1 usually ships 1-5 days
004a N/A Not available Call for price 1 usually ships 3-26 days
004a N/A Not available Call for price 1 usually ships 3-26 days
004b N/A Not available Call for price 1 (Push button switch) usually ships 3-26 days
004b N/A Not available Call for price 1 (Push button switch) usually ships 3-26 days
005 172-4139 35amp rectifier $13.40 1 ships same day
005 172-4139 35amp rectifier $13.40 1 ships same day
006a 172-8429 Cord set (OBSOLETE) $16.63 1 usually ships 1-5 days
006a 172-8429 Cord set (OBSOLETE) $16.63 1 usually ships 1-5 days
006b 272-2045 Extension cord (OBSOLETE) $5.94 1 usually ships 1-5 days
006b 272-2045 Extension cord (OBSOLETE) $5.94 1 usually ships 1-5 days
N/S 272-2044 Cord (OBSOLETE) $14.19 1 usually ships 1-5 days
N/S 272-2044 Cord (OBSOLETE) $14.19 1 usually ships 1-5 days
