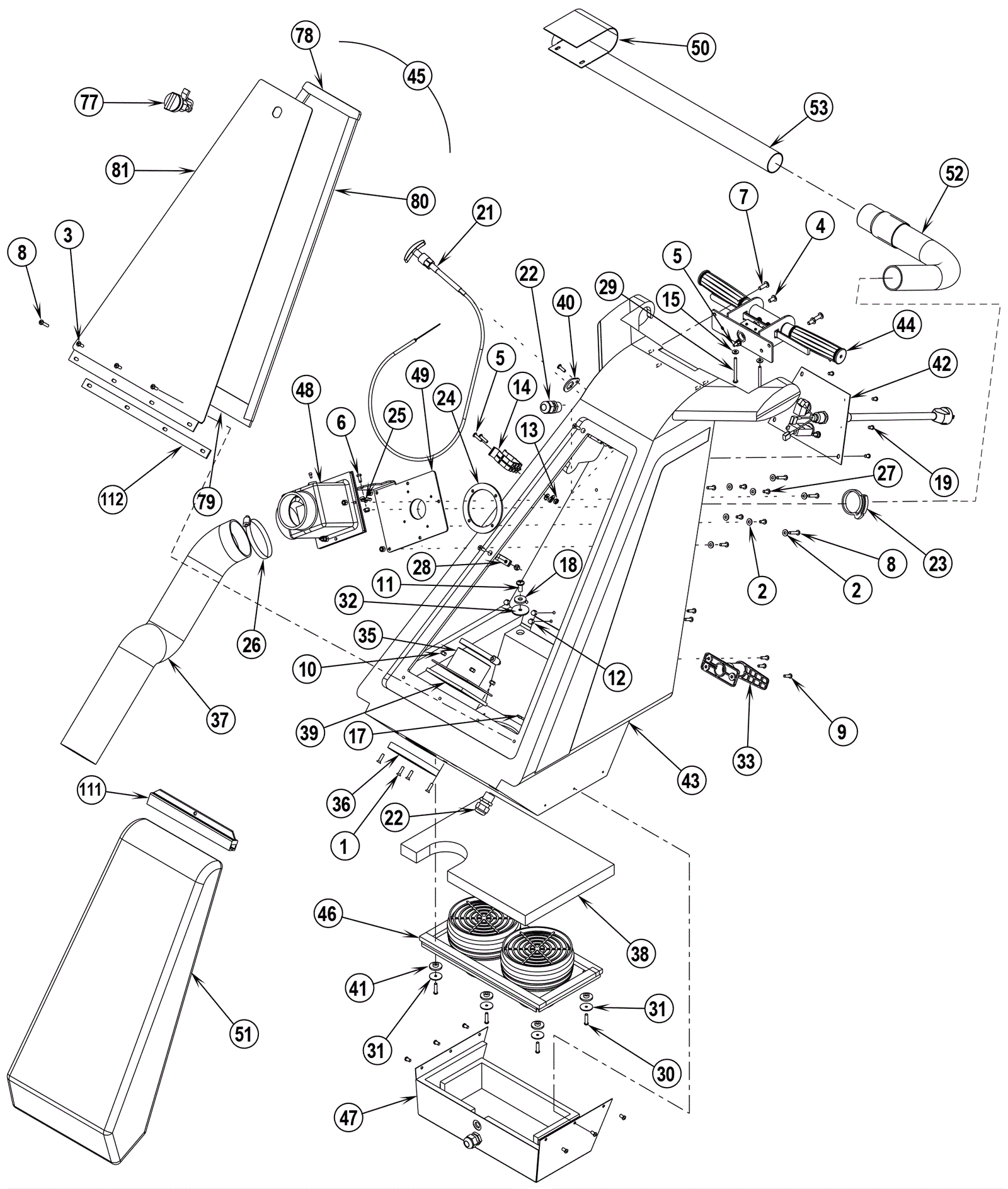

Handle Assembly

#PartDescription ReqNotesAvailability
1 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 6
2 999-1862 Washer #10 flat SAE stainless steel 1
3 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 3
4 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
5 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 4
6 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 1
7 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 2
8 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 4
9 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 6
10 999-0199 Nut 10-24 nylon insert lock zinc plated 17
11 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel 2
12 172-4958 Nut 10-24 acorn stainless steel 6
13 999-0442 Nut 10-24 nylon insert lock stainless steel 2
14 272-0547 Plastic clamp 1
15 999-0053 Washer #10 split lock plain finish 2
17 172-4536 Nut 1/2-14 conduit lock 2
18 172-2067 Washer 11/32 x 1/8 flat 2
19 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 12
21 172-2845 Cable 1
22 172-4018 Strain relief 2
23 272-2872 Hose clamp 1
24 272-2873 Gasket 1
25 172-9023 Cable clamp 1
26 472-7100 CLAMP HOSE SAE 52 E00047 2
27 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4
28 181-0269 P clamp 3
29 272-5203 Screw 10-24 X 2 1/4 phillips pan 2
30 182-0012 Screw 10-14 x .88 phillips pan plastite 6
31 999-9118 Washer 3/16 x 1 1/16 fender 6
32 272-5204 Washer 1/4 x 1 3/8 x 15/16 neoprene 2
33 172-4638 Cord hook assembly 2
35 181-0274 Hose connector weldment 1
36 181-0279 Foam gasket 1
37 181-0280 Vac hose 1
38 181-0298 Bag guard 1
39 181-0271 Foam gasket 1
40 272-2874 Plate (OBSOLETE) 1
41 181-0299 Bushing 6
42a 272-2877 Electrical assembly 1 (100V) (includes 54-63)
42b 181-0292 Electrical assembly 1 (120V) (includes 54-63)
42c 272-2875 Electrical assembly 1 (240V) (includes 54-63)
43 N/A Not available 1 (upper machine tank)
44 181-0283 Handle assembly 1 (includes 64-75)
45 181-0300 Door assembly 1 (includes 77-81)
46a 272-2879 Vacuum motor assembly 1 (100V) (includes 82-90, 106-109)
46b 272-5210 Vacuum motor assembly 1 (120V) (includes 82-90, 106-109)
46c 272-2878 Vacuum motor assembly 1 (240V) (includes 82-90, 106-110)
47 181-0309 Muffler assembly 1 (includes 91-95)
48 372-2611 Butterfly assembly (OBSOLETE) 1 (includes 96-105)
49 272-2881 Tube weldment 1
50 181-0267 Switchbox weldment 1
51 172-2882 Cloth bag 1
52 272-2882 Vac hose assembly 1
53 272-2883 Tube wand 1
77 181-0301 Twist latch 1
78 181-1234 Foam Gasket 1
79 181-1235 Foam Gasket 1
80 181-0303 Gasket 2
81 181-0302 Door Weldment 1
111 172-2883 Bag clip for cloth bag 1 (for 172-2883)
112 172-7968 Foam Gasket 1
N/S 172-6255 Paper bags (pkg of 6) 1 (optional)
N/S 991-9032 Paper vacuum bags (pkg of 3) 1 (NON-OEM)
