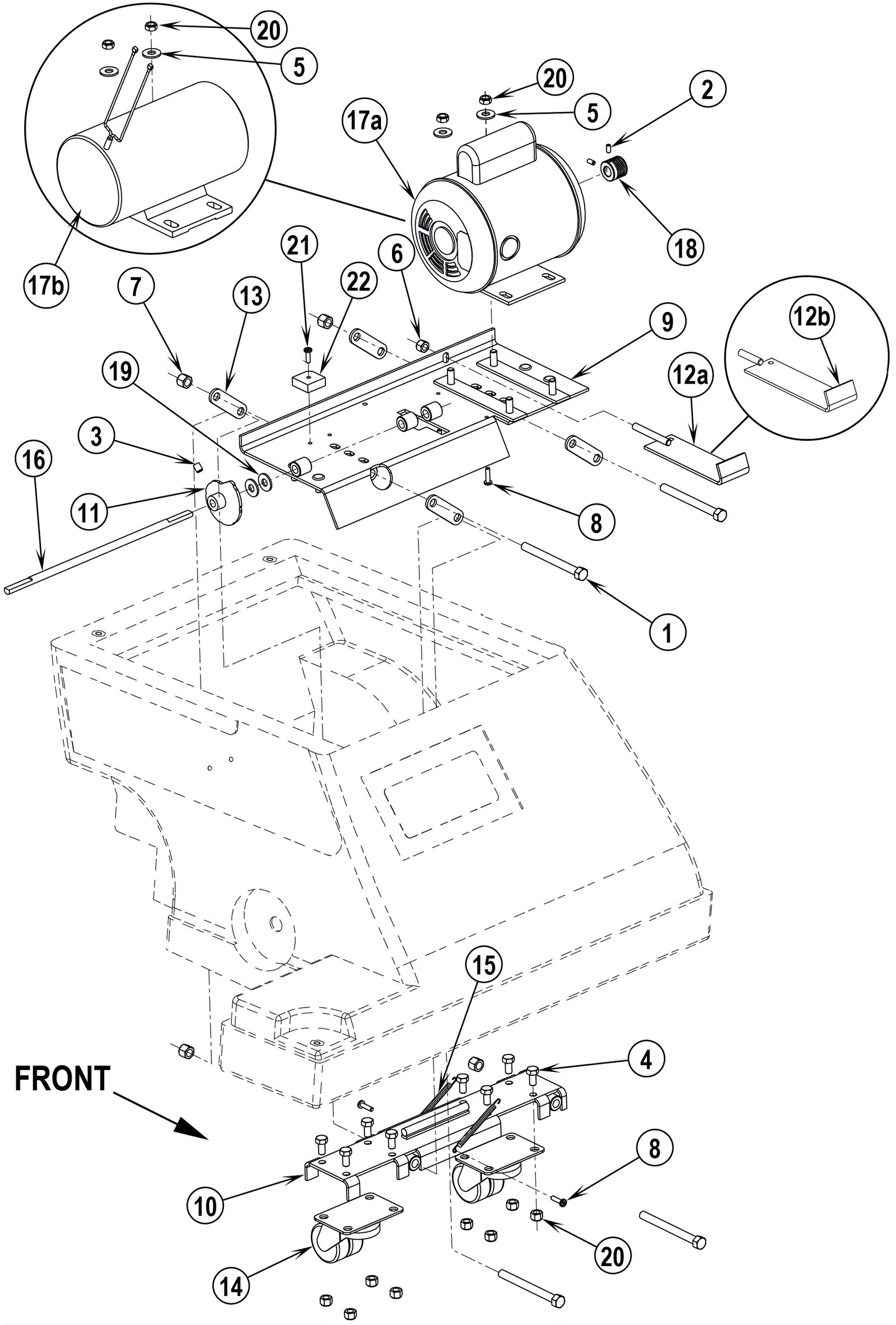

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0795
|
Bolt 3/8-16 x 4 hex head stainless steel |
4 |
|
|
2 |
999-1533
|
Screw 10-24 x 3/8 set socket cup point stainless steel |
2 |
|
|
3 |
181-0079
|
Screw 5/16-18 x 5/8 socket set lock |
1 |
|
|
4 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
8 |
|
|
5 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
6 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
7 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
8 |
999-1104
|
Screw 10-24 x 3/4 pan head phillips thread rolling zinc |
4 |
|
|
9a |
181-0326
|
Motor bracket weldment |
1 |
(120V) |
|
9b |
272-2863
|
Motor bracket weldment (OBSOLETE) |
1 |
(100V) |
|
10 |
181-0327
|
Caster bracket weldment |
1 |
|
|
11 |
181-0328
|
Height adjustment weldment |
1 |
|
|
12a |
181-0329
|
Adjustment bracket weldment |
1 |
(120V) |
|
12b |
272-2864
|
Adjustment bracket weldment (OBSOLETE) |
1 |
(100V) |
|
13 |
181-0330
|
Steel bar |
4 |
|
|
14 |
181-0331
|
Caster wheel |
2 |
|
|
15 |
181-0332
|
Extension spring |
2 |
|
|
16 |
181-0333
|
Height adjustment shaft |
1 |
|
|
17a |
181-0334
|
120V 1/3 HP Motor |
1 |
(120V) |
|
17b |
272-2865
|
100V brush drive motor 1/3 hp (OBSOLETE) |
1 |
(100V) |
|
17c |
372-3306
|
Side broom motor brush kit |
1 |
(for 17a) |
|
17d |
272-2867
|
Carbon brush |
2 |
(for 17b) |
|
17e |
272-2868
|
Spring brush |
2 |
(for 17b) |
|
17f |
272-2869
|
Cover brush |
2 |
(for 17b) |
|
18 |
181-0336
|
Pulley |
1 |
|
|
19 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
(100V) |
|
20 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
10 |
|
|
21 |
999-0193
|
Screw 10-24 x 5/8 pan head slotted thread cutting zinc |
1 |
|
|
22 |
172-4139
|
35amp rectifier |
1 |
|
|
