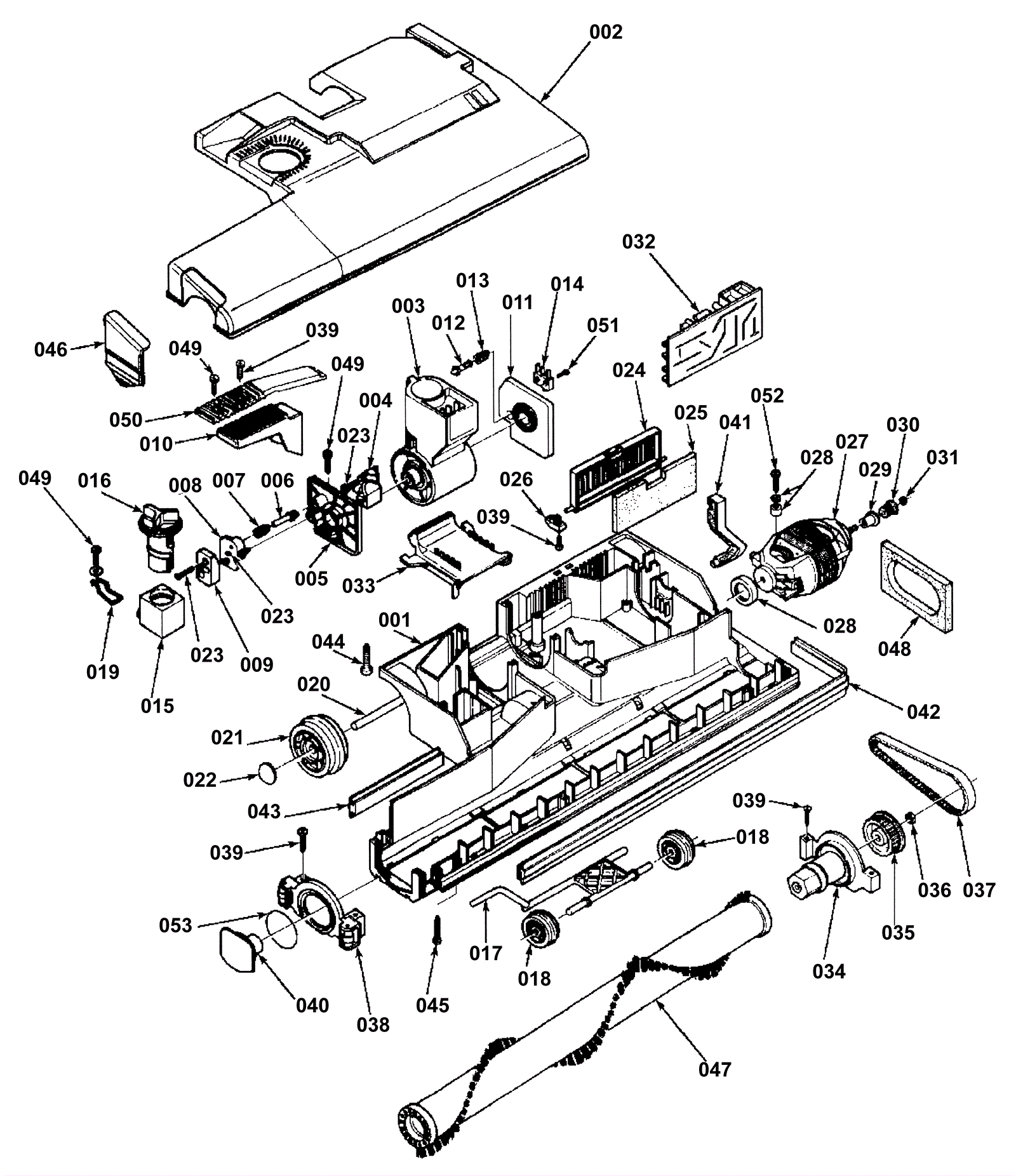

LA 114 Brush Housing Assembly-114

#PartDescriptionPriceReqNotesAvailability
000 272-0335 Brush housing assembly 18 inch - 120v (OBSOLETE) $491.40 1 usually ships 1-5 days
001a 272-0336 Body main brush head 18 inch (OBSOLETE) $113.40 1 usually ships 1-5 days
001b 272-0337 Base assembly (OBSOLETE) $62.64 1 usually ships 1-5 days
002 272-0338 Electric brush cover with gasket (OBSOLETE) $84.24 1 usually ships 1-5 days
003a 272-0327 Joint complete with pin slide (OBSOLETE) $120.70 1 usually ships 1-5 days
003b 172-1490 Prong set with 3 cables $16.22 1 usually ships 6-15 days
004 172-1459 Joint pin slide $1.90 1 usually ships 6-15 days
005 172-1460 Right joint support with felt seal $26.32 1 usually ships 1-5 days
006 172-1461 Plunger $9.00 2 usually ships 3-4 days
007 172-1417 Spring $0.64 2 ships same day
008 172-1462 Double pin washer (OBSOLETE) $1.96 1 usually ships 6-15 days
009 172-1463 Double release plate $1.66 1 usually ships 6-15 days
010 272-0328 Handle release pedal (OBSOLETE) $17.71 1 usually ships 1-5 days
011 172-1465 Left joint support with felt seal $24.00 1 usually ships 1-5 days
012 172-1246 Switch activator pin $0.90 1 ships same day
013 172-1466 Spring $0.90 1 ships same day
014 172-1249 Brush motor switch $11.94 1 ships same day
015 172-1413 Brush adjuster (OBSOLETE) $9.24 1 usually ships 1-5 days
016 272-0329 Brush adjuster knob (OBSOLETE) $14.04 1 usually ships 1-5 days
017 172-1468 Front axle $16.67 1 usually ships 6-15 days
018 272-0330 Front wheel (OBSOLETE) $7.98 2 usually ships 1-5 days
019 172-1469 Brush adjustment spring $1.96 1 usually ships 1-5 days
020 172-1470 Rear axle $9.47 1 usually ships 6-15 days
021 172-1471 Rear wheel $4.95 2 ships same day
022 172-1410 Wheel retainer $9.00 2 usually ships 3-4 days
023 172-1421 Screw M3 x 16mm (OBSOLETE) $9.48 4 usually ships 1-5 days
024 272-0331 Filter grill $41.50 1 usually ships 1-5 days
025 272-2577 Brush motor filter $2.28 1 usually ships 6-15 days
026 272-0332 Stop grill plate (OBSOLETE) $6.26 1 usually ships 1-5 days
027a 172-1996 120V brush motor $104.88 1 ships same day
027b 172-1243 Carbon brush (pkg of 2) $20.37 1 usually ships 16-41 days
028 172-1474 Brush motor support kit (OBSOLETE) $5.41 1 usually ships 6-15 days
029 172-1253 Metal spacer $4.84 1 usually ships 6-15 days
030 172-1256 Metal pulley $6.05 1 usually ships 6-15 days
031 172-1255 Nut $0.90 1 usually ships 6-15 days
032 272-2634 120V 4 prong circuit board (OBSOLETE) $291.49 1 usually ships 16-41 days
033 N/A Not available Call for price 1 usually ships 3-26 days
034 172-1477 Transmission support (OBSOLETE) $59.00 1 usually ships 6-15 days
035 172-1258 Brush pulley $16.00 1 usually ships 3-4 days
036 172-1257 Nut $0.90 1 usually ships 6-15 days
037a 272-7014 Drive belt $24.47 1 (OEM) usually ships 16-41 days
037b 991-5103 Drive belt $9.33 1 (NON-OEM) usually ships 8-20 days
038 172-1478 Wheel support $35.48 1 usually ships 16-41 days
039 172-1251 Screw 3.9 x 16mm $2.25 2 ships same day
040 172-1479 Roller support $6.05 1 usually ships 6-15 days
041 172-6250 Side lever $23.00 1 usually ships 3-4 days
042 172-1997 18 inch front bumper gasket $51.04 1 usually ships 16-41 days
043 172-1998 18 inch back bumper gasket (OBSOLETE) $7.70 1 usually ships 1-5 days
044 172-1482 Screw 4.8 x 50mm $2.00 6 ships same day
045 172-1483 Screw 3.5 x 38 mm $8.40 3 ships same day
046 272-0333 Side cover (OBSOLETE) $27.20 1 usually ships 1-5 days
047 172-1749 18 inch brush roller $74.27 1 usually ships 16-41 days
048 172-1254 Brush motor filter (OBSOLETE) $9.96 1 usually ships 1-5 days
049 172-1419 Screw 3.9 x 13mm (OBSOLETE) $8.40 1 usually ships 1-5 days
050 272-0334 Lever (OBSOLETE) $7.98 1 usually ships 1-5 days
051 172-1247 Screw 2.2 x 16mm (OBSOLETE) $8.28 1 usually ships 1-5 days
052 172-1485 Screw 3.5 x 22mm (OBSOLETE) $0.90 2 usually ships 1-5 days
053 172-1489 O-ring $8.00 1 usually ships 3-4 days
