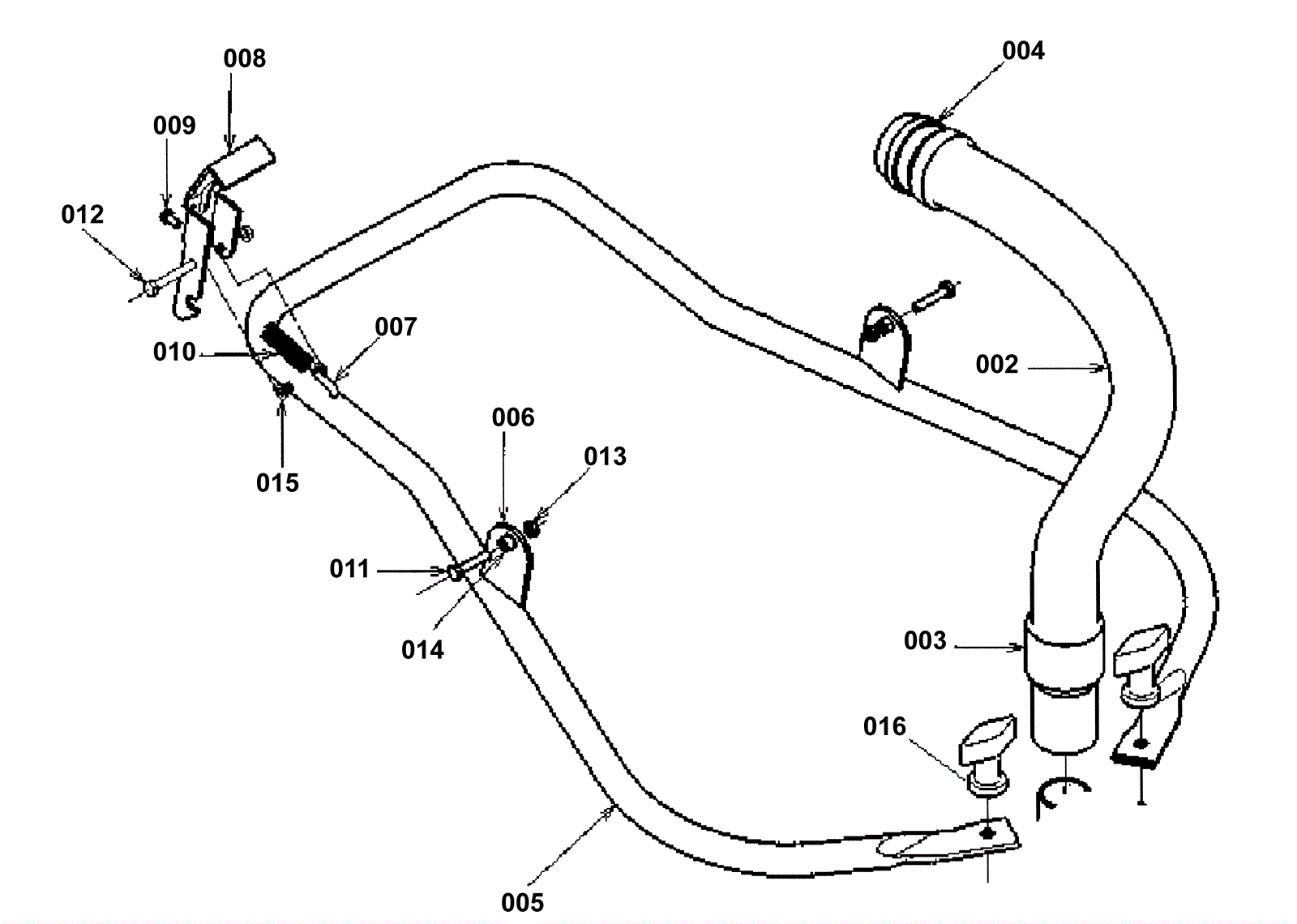

| # | Part | Description |
Req | Notes | Availability |
|---|
002a |
N/A
|
Not available |
1 |
(hose)(1 1/2x27 1/2) |
|
002b |
172-3928
|
Hose 1 1/2x19.6 (OBSOLETE) |
1 |
|
|
003 |
172-3925
|
Hose frame (OBSOLETE) |
1 |
|
|
004 |
172-3911
|
Inlet |
1 |
|
|
005 |
N/A
|
Not available |
1 |
(frame) |
|
006 |
N/A
|
Not available |
2 |
(bracket) |
|
007 |
N/A
|
Not available |
1 |
(mounting spring) |
|
008 |
172-3930
|
Pedal complete (OBSOLETE) |
1 |
(pedal) |
|
009 |
N/A
|
Not available |
1 |
(rivet) |
|
010 |
N/A
|
Not available |
1 |
(spring) |
|
011 |
N/A
|
Not available |
2 |
(screw 1.4 in M6x35 FZ) |
|
012 |
N/A
|
Not available |
1 |
(screw 1.7 in M6x FZ) |
|
013 |
N/A
|
Not available |
3 |
(collar nut M6) |
|
014 |
N/A
|
Not available |
2 |
(distance tube) |
|
015 |
N/A
|
Not available |
2 |
(washer 6.4x12 FZ) |
|
016 |
272-2056
|
Nut 5/16 thumb |
2 |
|
|
N/S |
172-3929
|
Frame (OBSOLETE) |
|
|
|
N/S |
172-3928
|
Hose 1 1/2x19.6 (OBSOLETE) |
|
|
|
