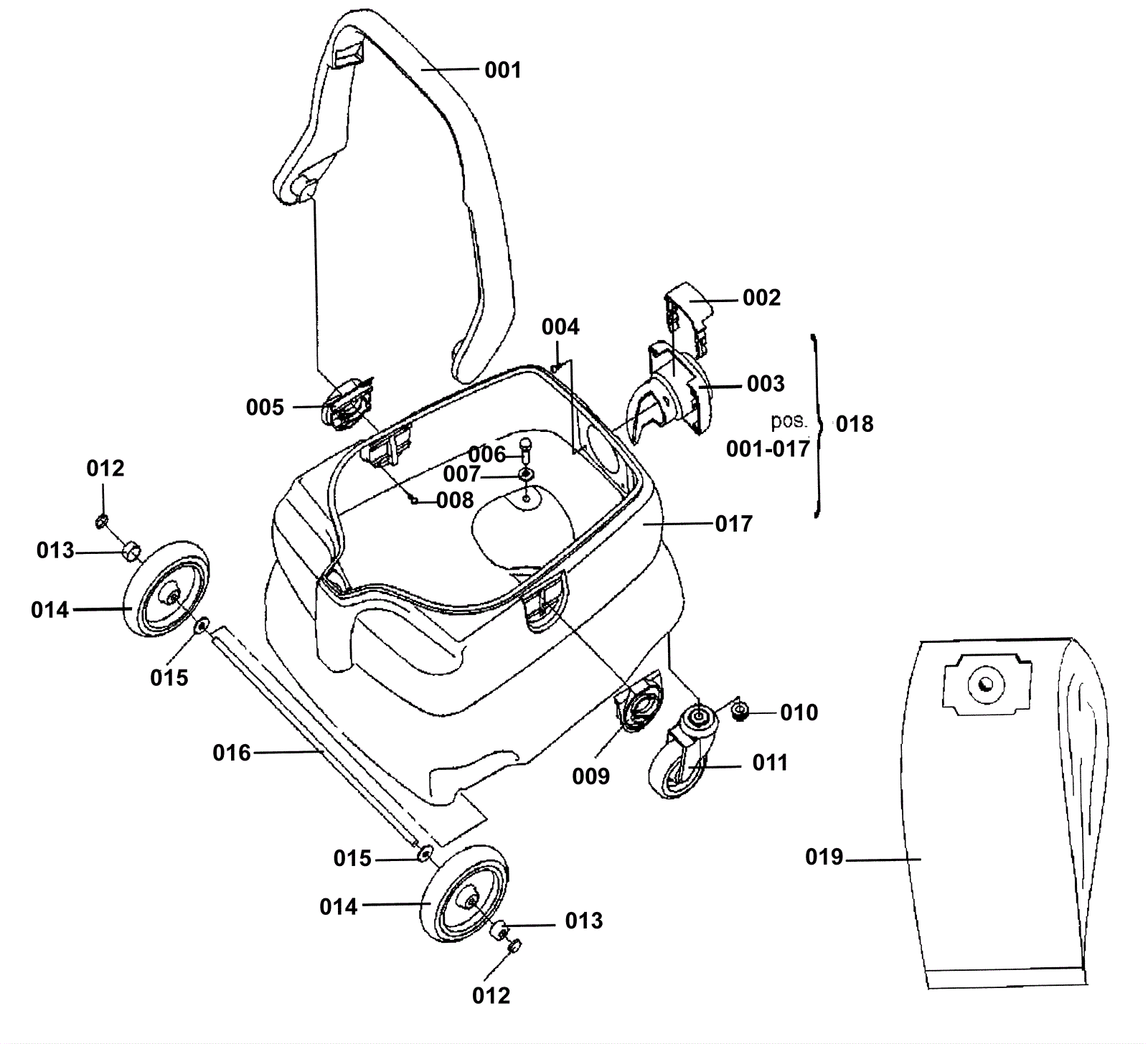

| # | Part | Description |
Req | Notes | Availability |
|---|
002 |
272-0892
|
Inlet kit with screws (OBSOLETE) |
1 |
|
|
003 |
172-3878
|
Inlet |
1 |
|
|
004 |
172-3852
|
Screw |
4 |
|
|
005 |
172-3879
|
Left bracket |
1 |
|
|
006 |
172-3890
|
Screw (OBSOLETE) |
2 |
|
|
007 |
172-3891
|
Washer (OBSOLETE) |
2 |
|
|
008 |
N/A
|
Not available |
6 |
screw |
|
009 |
172-3881
|
Right bracket |
1 |
|
|
010 |
N/A
|
Not available |
2 |
nut |
|
011 |
N/A
|
Not available |
2 |
linkwheel |
|
012 |
272-3423
|
Wheel (pkg of 2) |
2 |
|
|
013 |
172-3884
|
Protective washer |
2 |
|
|
014 |
172-3892
|
Wheel (OBSOLETE) |
2 |
|
|
015 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
washer |
|
016 |
N/A
|
Not available |
1 |
Shaft |
|
017 |
N/A
|
Not available |
1 |
tank 25 L |
|
018 |
N/A
|
Not available |
|
Tank Cpl 25L |
|
019 |
N/A
|
Not available |
|
(bag dust 3 pk) |
|
