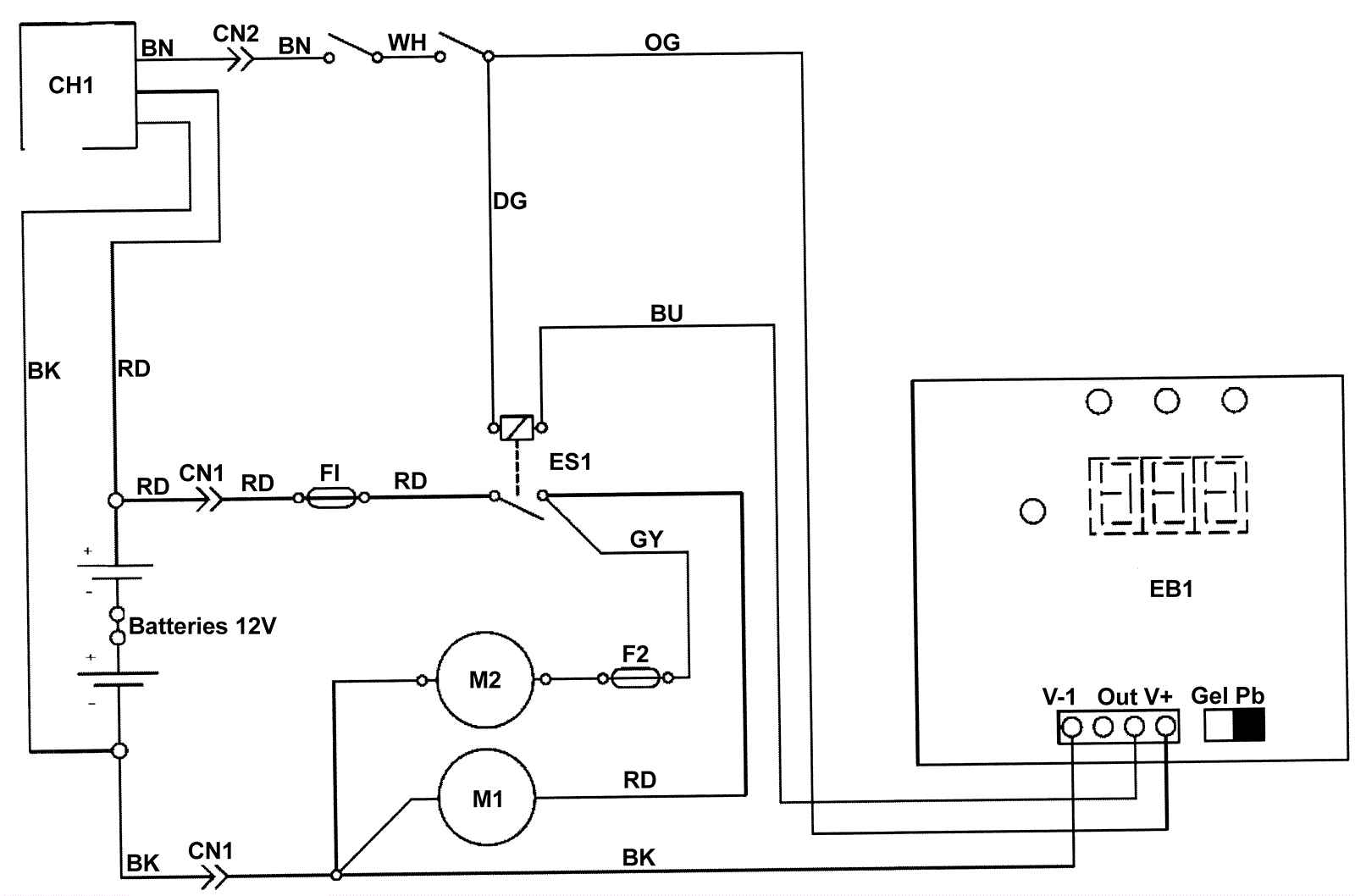

Terra 128 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
CH1 172-3816 12V 20amp onboard battery charger $1,925.00 usually ships 1-5 days
CN1 172-3815 Connector (OBSOLETE) $22.10 usually ships 1-5 days
CN2 172-3817 Charger connector (OBSOLETE) $6.89 usually ships 1-5 days
EB1 172-3790 Electronic card $380.52 usually ships 17-28 days
ES1 172-3794 Electromagnetic switch $118.48 usually ships 17-28 days
F1 272-5571 60 amp fuse $8.25 usually ships 1-5 days
F2 172-3648 15amp fuse $12.31 usually ships 17-28 days
F3 172-3648 15amp fuse $12.31 usually ships 17-28 days
M1 172-3748 Electric motor (OBSOLETE) $881.19 usually ships 1-5 days
M2 172-3682 Brush gear motor $575.78 usually ships 1-5 days
SW1 172-3785 Key switch with two keys $64.90 ships same day
SW2 172-3646 Safety switch $47.96 usually ships 1-5 days
