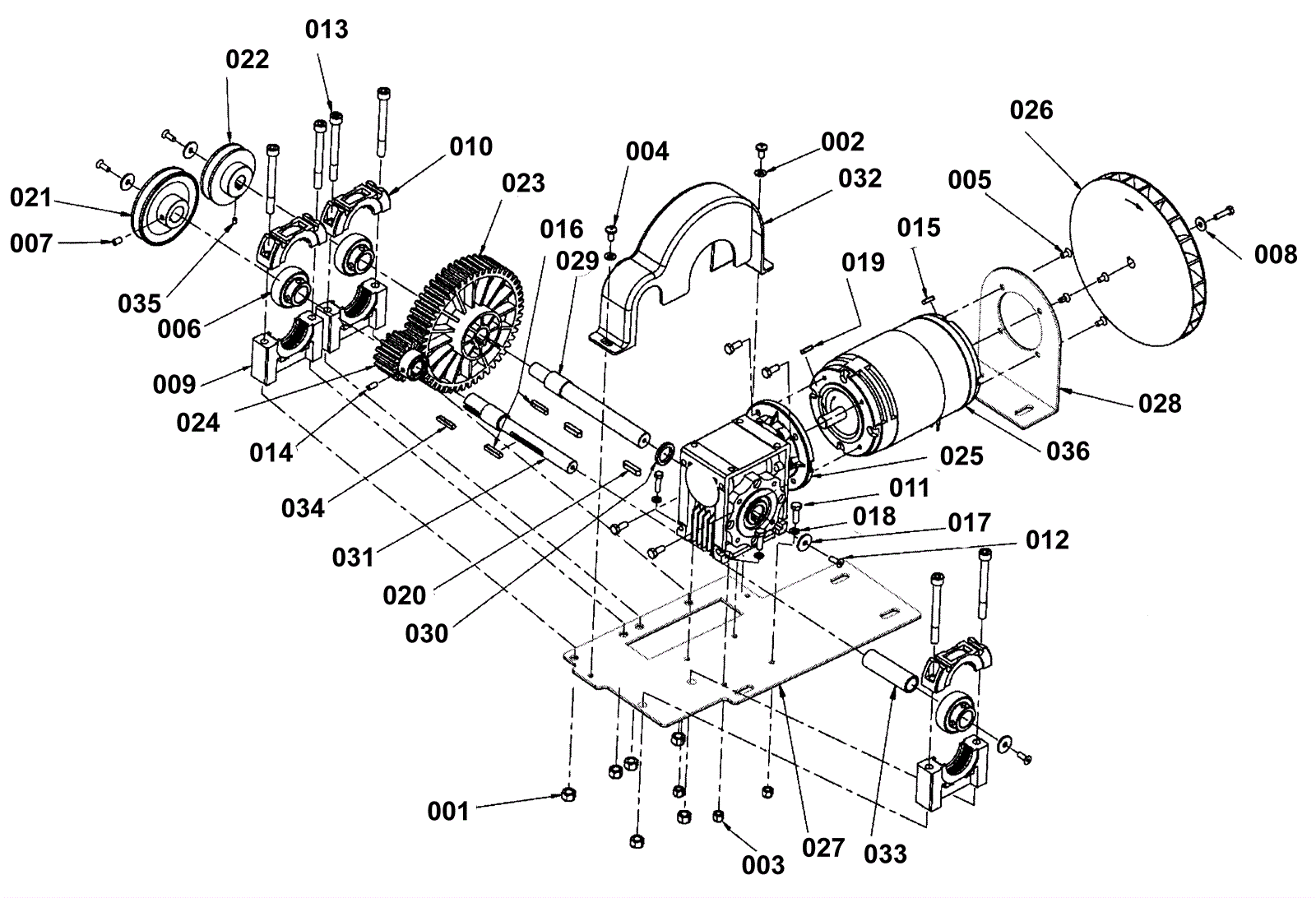

Terra 128 Reduction Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 6 ships same day
002 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $7.59 2 usually ships 1-5 days
003 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 3 ships same day
004 172-3722 Screw M6x12 $12.31 2 usually ships 1-5 days
005 999-0885 Screw M6-1 x 12mm pan head slotted zinc $0.99 4 ships same day
006 172-3684 Ball bearing $133.53 3 usually ships 1-5 days
007 172-3723 Dowel $9.13 1 usually ships 1-5 days
008 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
009 172-3724 Support $12.31 3 ships same day
010 172-3725 Support $12.31 3 usually ships 17-28 days
011 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 4 ships same day
012 170-9106 Screw M5 x 14mm $8.25 4 usually ships 1-5 days
013 172-3727 Screw M8x80 $8.80 6 usually ships 1-5 days
014 172-3728 Dowel $11.75 1 usually ships 17-28 days
015 172-3729 Square key (OBSOLETE) $6.29 1 usually ships 1-5 days
016 172-3730 Square keyway $49.63 2 ships same day
017 172-3731 Washer 6 x 24 x 2 $11.69 2 usually ships 1-5 days
018 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
019 181-0942 Square keyway $49.63 1 usually ships 17-28 days
020 172-3688 Square keyway (OBSOLETE) $5.94 2 usually ships 1-5 days
021 172-3733 Pulley (OBSOLETE) $25.78 1 usually ships 1-5 days
022 172-3734 Pulley (OBSOLETE) $29.08 1 usually ships 1-5 days
023 172-3735 Gear $87.54 1 usually ships 17-28 days
024 172-3736 Gear $63.07 1 usually ships 17-28 days
025 172-3737 Reduction gear assembly (OBSOLETE) $377.19 1 usually ships 1-5 days
026 172-3738 Fan (OBSOLETE) $117.70 1 usually ships 1-5 days
027 172-3739 Supporting plate (OBSOLETE) $63.09 1 usually ships 1-5 days
028 172-3740 Motor bracket (OBSOLETE) $32.74 1 usually ships 1-5 days
029 172-3741 Transmission shaft (OBSOLETE) $59.95 1 usually ships 1-5 days
030 172-3742 Bushing (OBSOLETE) $5.72 1 usually ships 1-5 days
031 172-3743 Main broom shaft (OBSOLETE) $55.10 1 usually ships 1-5 days
032 172-3744 Gear cover $87.54 1 usually ships 1-5 days
033 172-3745 Spacer (OBSOLETE) $9.13 1 usually ships 1-5 days
034 172-3746 Square keyway (OBSOLETE) $9.90 1 usually ships 1-5 days
035 172-3747 Dowel (OBSOLETE) $11.69 1 usually ships 17-28 days
036 172-3748 Electric motor (OBSOLETE) $881.19 1 usually ships 1-5 days
N/S N/A Not available Call for price 4 Carbon brush (sold individually) usually ships 3-26 days
