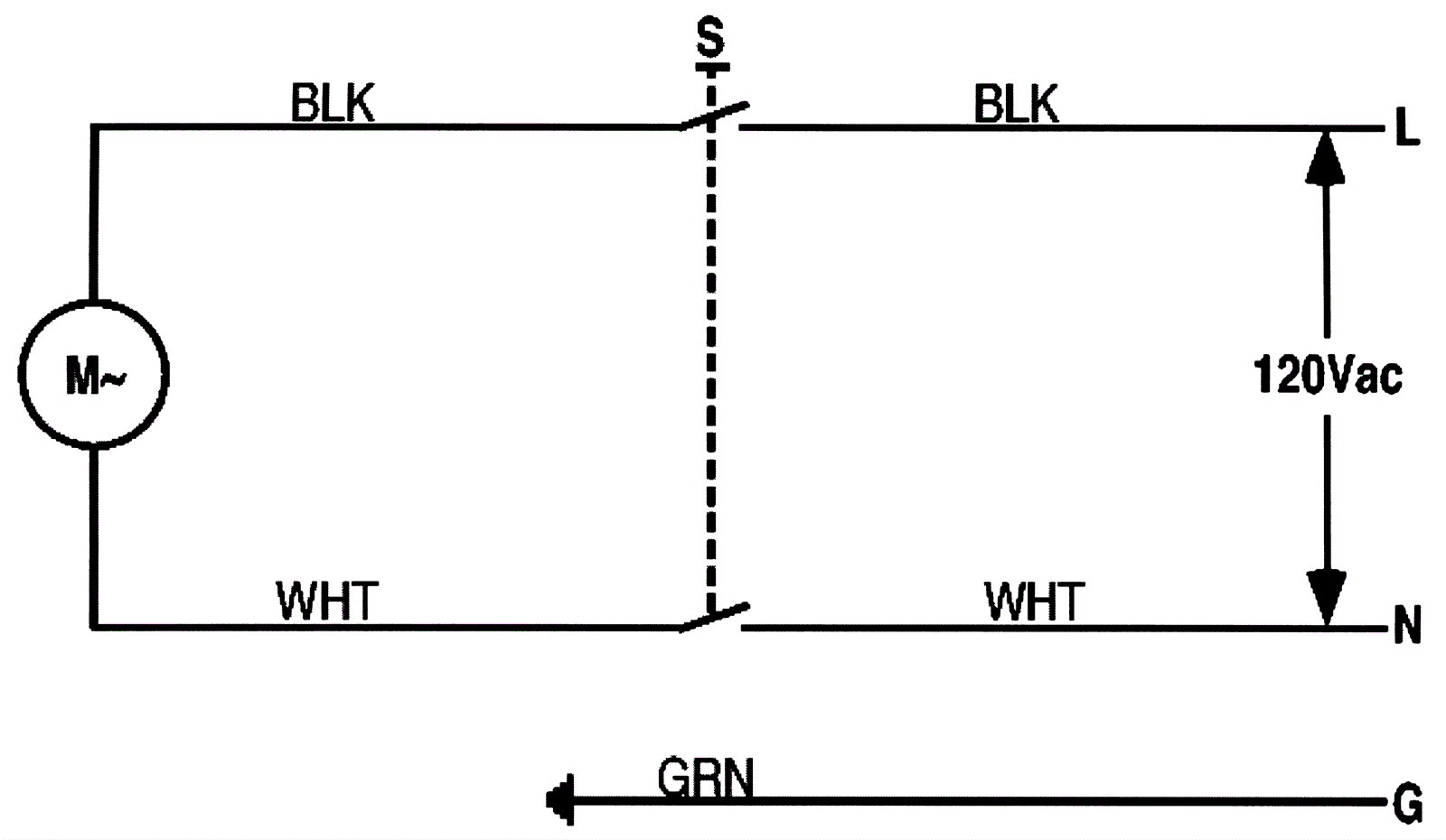

Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
M 172-2978 Motor 1 3/4hp (OBSOLETE) $566.10 1 usually ships 1-5 days
M1 240-0091 Running capacitor $42.65 1 ships same day
M2 172-4578 Capacitor (OBSOLETE) $52.10 1 usually ships 1-5 days
S 272-8640 Switch $24.71 1 ships same day
