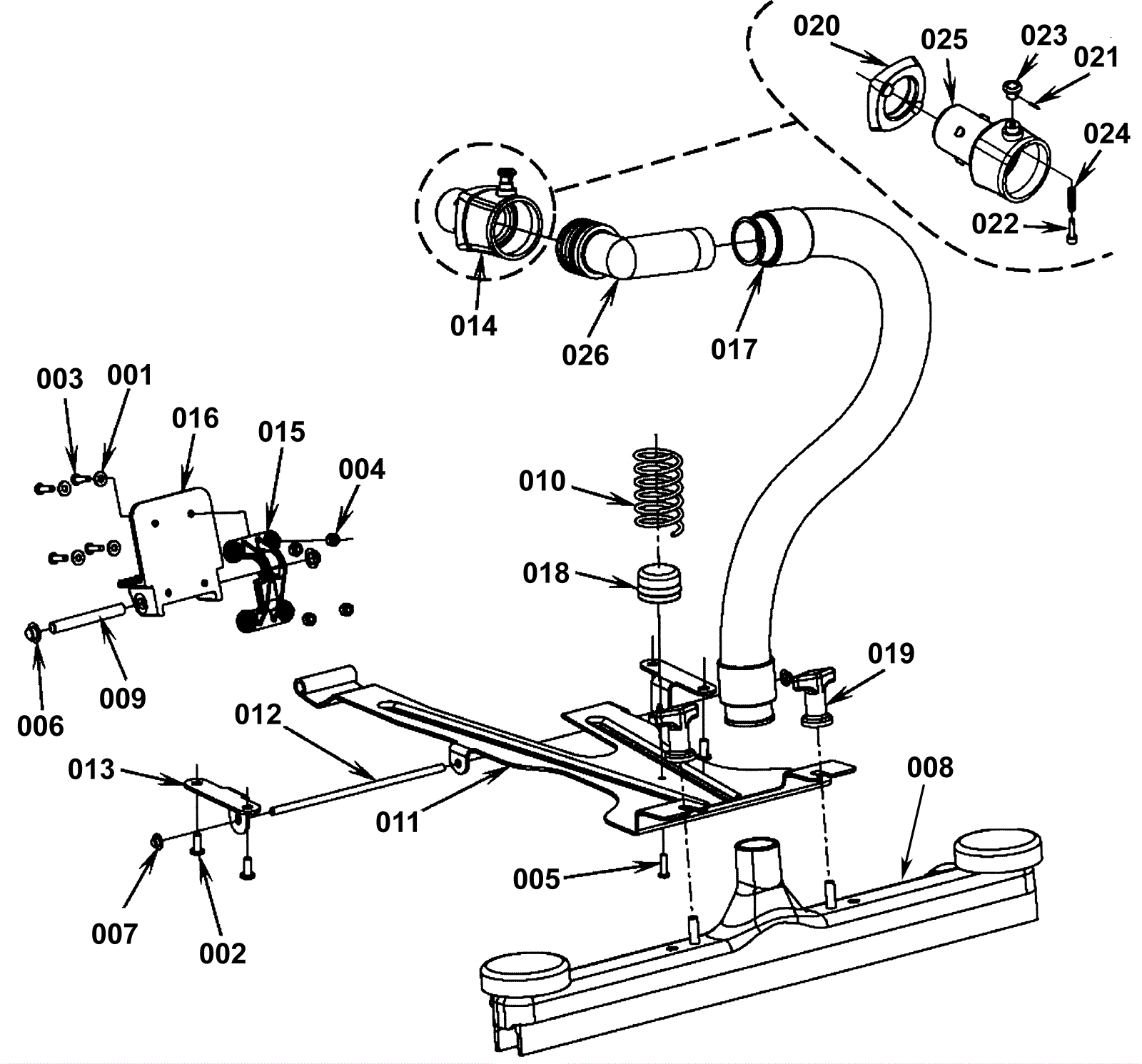

GW 4512AS Squeegee System

#PartDescriptionPriceReqNotesAvailability
000 272-5133 Squeegee kit (OBSOLETE) $450.69 1 Includes 001-019 usually ships 1-5 days
001 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
002 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
003 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
005 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 1 ships same day
006 172-4142 Nut 3/8 push cap $10.85 2 usually ships 16-41 days
007 272-5254 Nut 1/4 push cap $10.85 2 usually ships 16-41 days
008 272-5111 24 inch squeegee assembly $314.39 1 usually ships 16-41 days
009 272-5117 Pedal axle $11.75 1 usually ships 1-5 days
010 272-5118 Compression spring (OBSOLETE) $13.68 1 usually ships 1-5 days
011 272-5119 Squeegee arm (OBSOLETE) $79.42 1 usually ships 1-5 days
012 272-5120 Squeegee axle (OBSOLETE) $8.10 1 usually ships 1-5 days
013 272-5121 Squeegee bracket $19.36 2 usually ships 1-5 days
014 172-4166 Adaptor assembly (OBSOLETE) $69.71 1 usually ships 16-41 days
015 272-5123 Squeegee lift cam (OBSOLETE) $26.58 1 usually ships 16-41 days
016 272-5124 Pedal $54.85 1 usually ships 1-5 days
017 272-5125 Squeegee hose (OBSOLETE) $42.39 1 usually ships 16-41 days
018 272-5126 Spring housing (OBSOLETE) $28.17 1 usually ships 16-41 days
019 172-4099 Nut 5/16-18 thumb $11.57 1 ships same day
020 181-1448 Gasket - black $17.51 1 usually ships 16-41 days
021 172-4527 Spring pin $12.31 1 usually ships 1-5 days
022 172-4167 Pin $46.00 1 usually ships 1-5 days
023 172-4526 Knob $12.31 1 usually ships 1-5 days
024 172-4632 Spring $10.85 1 usually ships 16-41 days
025 172-4168 Hose outlet coupling $9.35 1 usually ships 1-5 days
026 172-6183 Hose adapter (OBSOLETE) $47.56 1 usually ships 16-41 days
