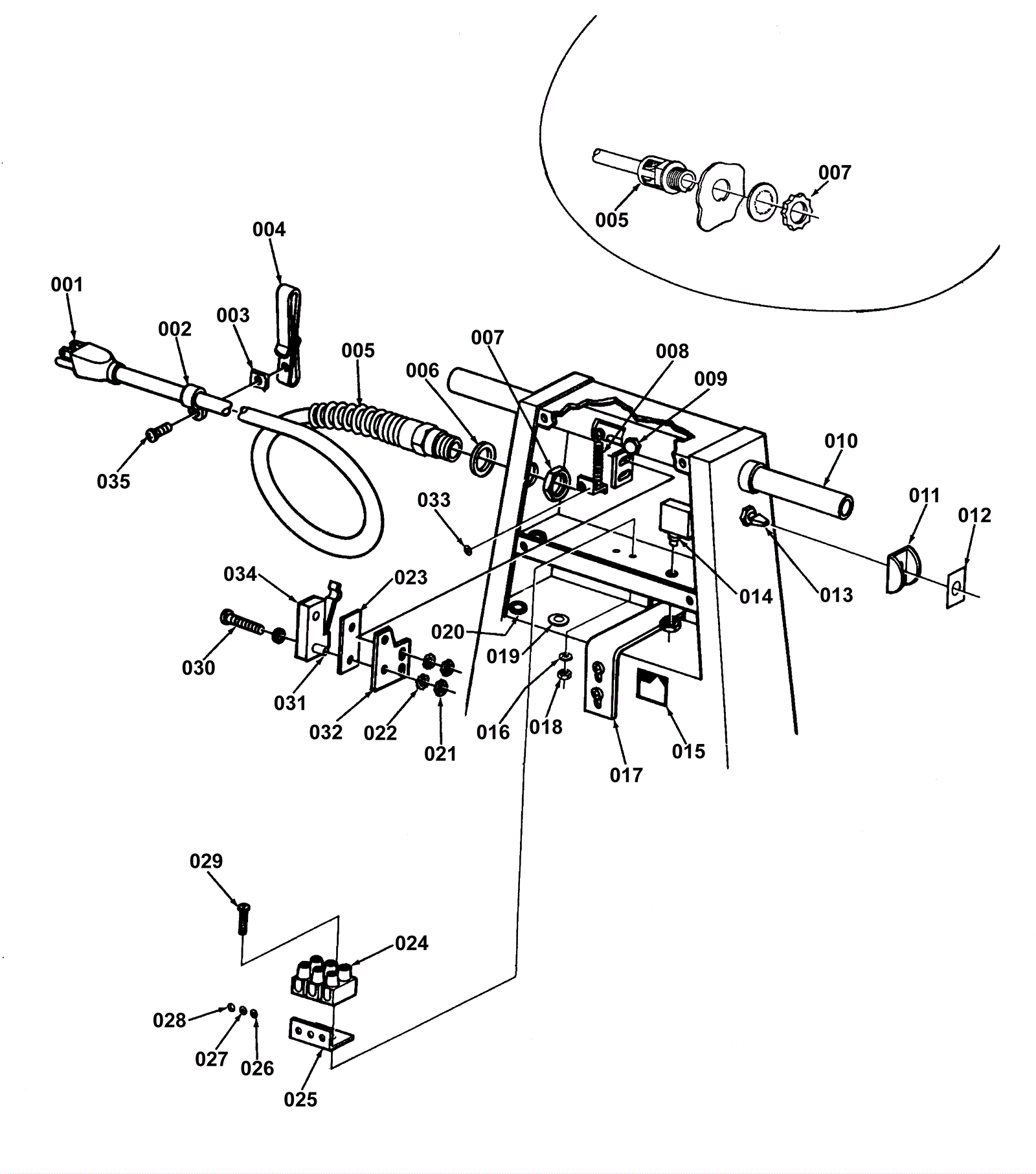

CARPETRIEVER 28XP Rear Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001a 272-1688 14/2 cord set (OBSOLETE) $262.47 1 usually ships 1-5 days
001b 172-6258 14/3 power cord 75 foot $233.53 1 usually ships 16-41 days
001c 272-1695 Cord set $311.50 1 usually ships 1-5 days
002 181-0978 Cable clamp $12.31 1 usually ships 16-41 days
003 N/A Not available Call for price 1 (Nut 6-32 spring) usually ships 3-26 days
004 N/A Not available Call for price 1 (Belt clip) usually ships 3-26 days
005a N/A Not available Call for price 1 Strain relief usually ships 3-26 days
005b 174-3053 Strain relief $9.31 1 usually ships 4-14 days
006 172-2856 Washer (OBSOLETE) $22.13 1 (115volt only) usually ships 16-41 days
007a 172-2857 Nut (OBSOLETE) $6.29 1 usually ships 16-41 days
008 172-8197 Extension spring $11.69 1 usually ships 1-5 days
009 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
010 172-2859 Tube (OBSOLETE) $27.32 1 usually ships 1-5 days
011 172-2860 Switch guard $19.98 1 (115volt / 230volt) usually ships 1-5 days
012 172-2861 On/Off decal $32.69 1 (115volt / 230volt) usually ships 1-5 days
013a 272-1687 Main switch $69.01 1 usually ships 1-5 days
013b 172-6004 Toggle switch $46.00 1 usually ships 16-41 days
014a 272-1692 Circuit breaker $96.79 1 usually ships 16-41 days
014b 272-1686 Brush circuit breaker (OBSOLETE) $74.25 1 usually ships 1-5 days
015 N/A Not available Call for price 1 (Reset decal) usually ships 3-26 days
016 172-2892 Washer 4 shakeproof $5.94 2 (230volt only) usually ships 1-5 days
017 172-2863 Latch (OBSOLETE) $28.51 1 usually ships 1-5 days
018 999-0408 Nut 4-40 plain machine screw $0.99 2 (230volt only) ships same day
019 172-2847 Grommet (OBSOLETE) $8.03 1 usually ships 1-5 days
020 172-2830 Bushing (OBSOLETE) $6.29 6 usually ships 1-5 days
021 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
022 172-2493 Chemical feed cap and tubing $44.58 2 ships same day
023 172-2864 Insulator (OBSOLETE) $14.01 1 (230volt only) usually ships 1-5 days
024 172-4094 Terminal block $9.26 1 (230volt only) usually ships 16-41 days
025 172-2865 Insulator (OBSOLETE) $47.52 1 (230volt only) usually ships 1-5 days
029 999-0407 Screw 4-40 x 7/8 pan head slotted zinc plated $0.99 2 (230volt only) ships same day
030 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
031 172-2869 Sleeve (OBSOLETE) $5.94 2 (230volt only) usually ships 1-5 days
032 172-2870 Plate $5.94 1 usually ships 1-5 days
033 172-5024 Ground symbol decal $12.31 1 (230volt only) usually ships 1-5 days
034 172-0270 Snap switch $47.30 1 usually ships 5-10 days
035 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 5 ships same day
