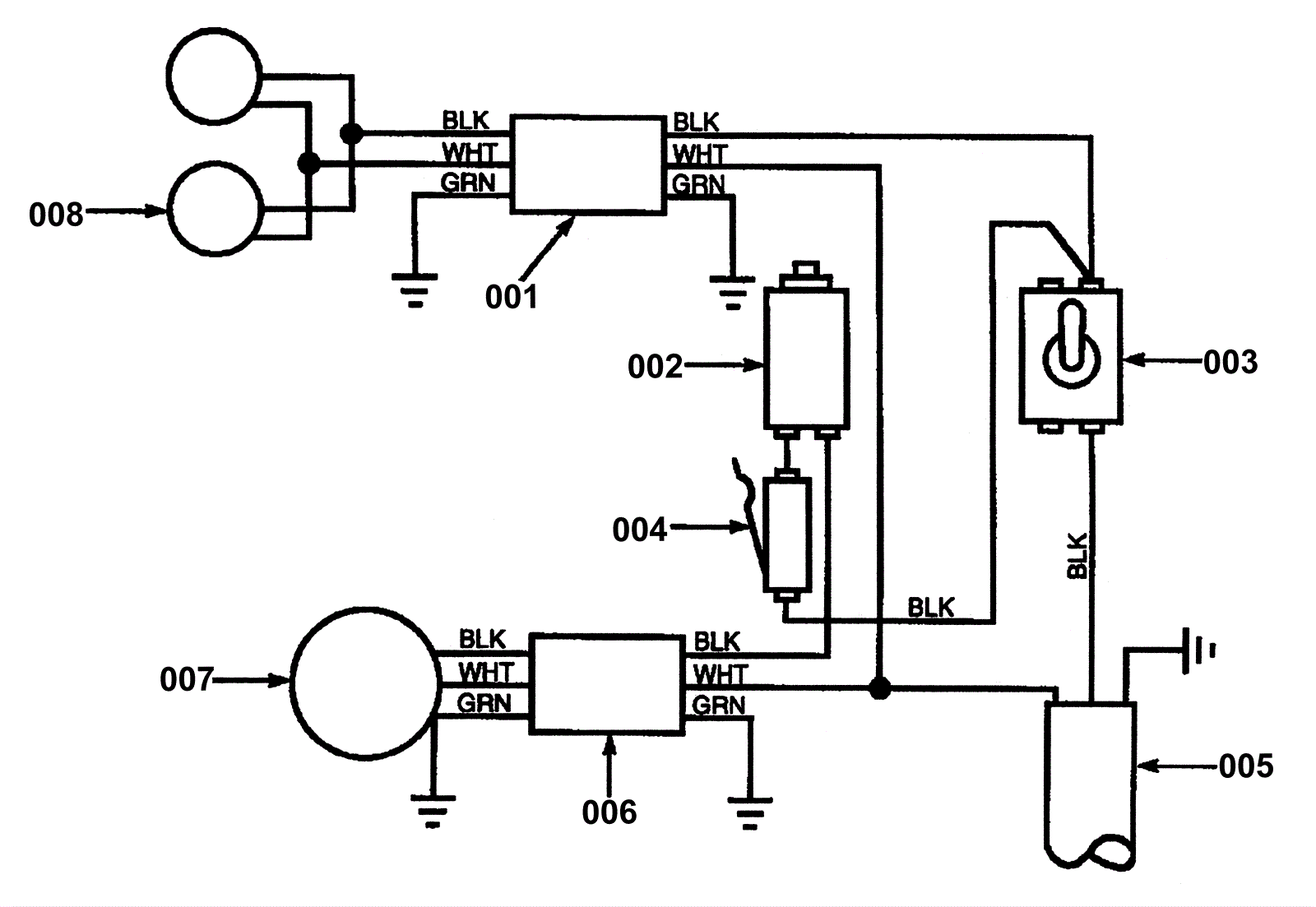

CARPETRIEVER 28XP 115V Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 272-1685 Cord set (OBSOLETE) $28.51 1 usually ships 1-5 days
002 272-1692 Circuit breaker $96.79 1 usually ships 16-41 days
003 272-1687 Main switch $69.01 1 usually ships 1-5 days
004 172-0270 Snap switch $47.30 1 usually ships 5-10 days
005 172-6258 14/3 power cord 75 foot $233.53 1 usually ships 16-41 days
006 272-1689 Cord set (OBSOLETE) $36.83 1 usually ships 1-5 days
007 272-1693 Brush motor (OBSOLETE) $321.11 1 usually ships 1-5 days
008a 172-6251 120V vacuum motor $139.48 2 ships same day
008b 991-1206 120V 1 stage vacuum motor peripheral $120.99 2 (NON-OEM) usually ships 5-16 days
