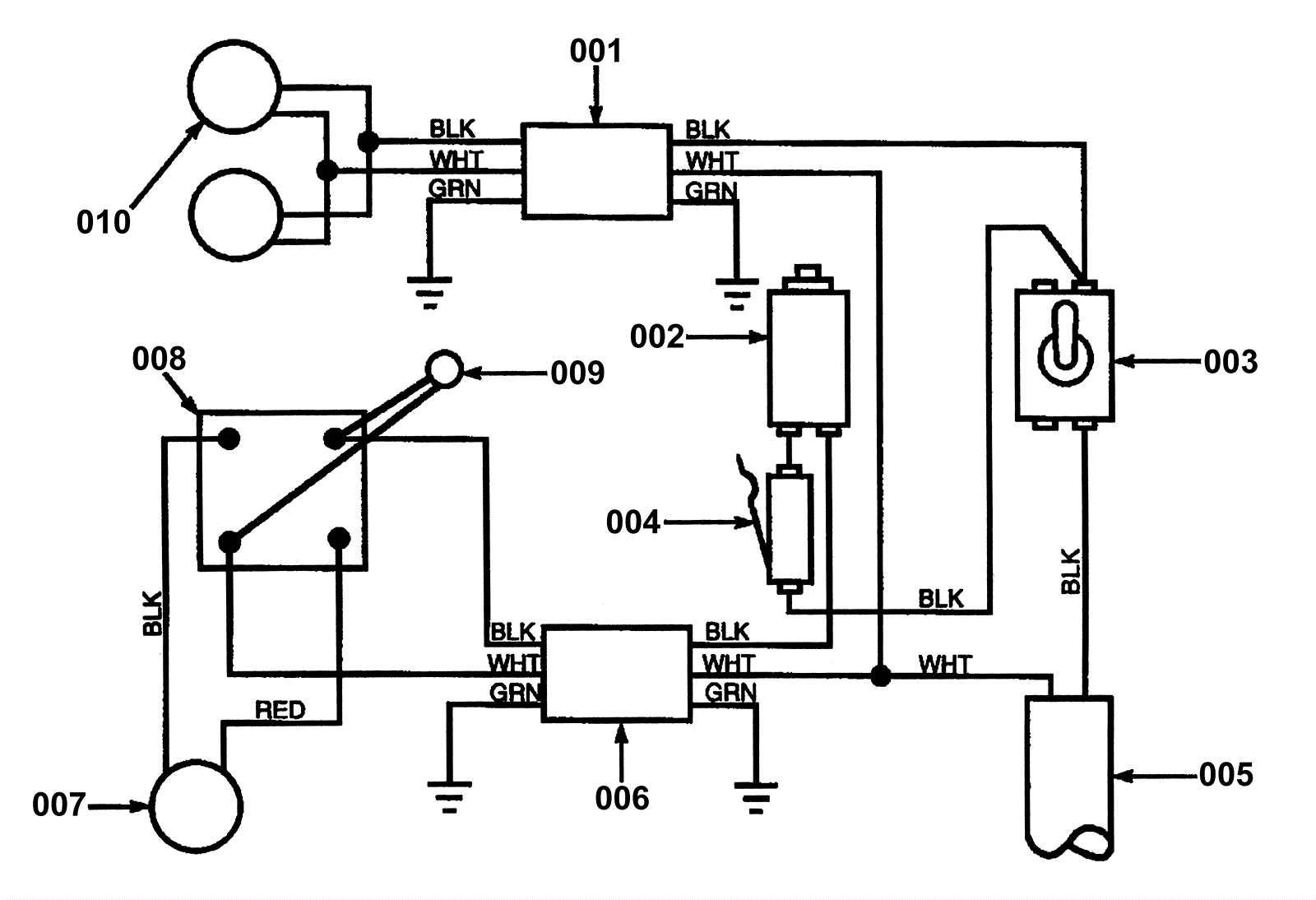

CARPETRIEVER 28XP 100V Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 272-1685 Cord set (OBSOLETE) $28.51 1 usually ships 1-5 days
002 272-1686 Brush circuit breaker (OBSOLETE) $74.25 1 usually ships 1-5 days
003 272-1687 Main switch $69.01 1 usually ships 1-5 days
004 172-0270 Snap switch $47.30 1 usually ships 5-10 days
005 272-1688 14/2 cord set (OBSOLETE) $262.47 1 usually ships 1-5 days
006 272-1689 Cord set (OBSOLETE) $36.83 1 usually ships 1-5 days
007 N/A Not available Call for price 1 (Motor) usually ships 3-26 days
008 172-4139 35amp rectifier $13.76 1 ships same day
009 272-1691 Varistor $46.00 1 usually ships 1-5 days
010a 172-6251 120V vacuum motor $139.48 2 ships same day
010b 991-1206 120V 1 stage vacuum motor peripheral $120.99 2 (NON-OEM) usually ships 5-16 days
