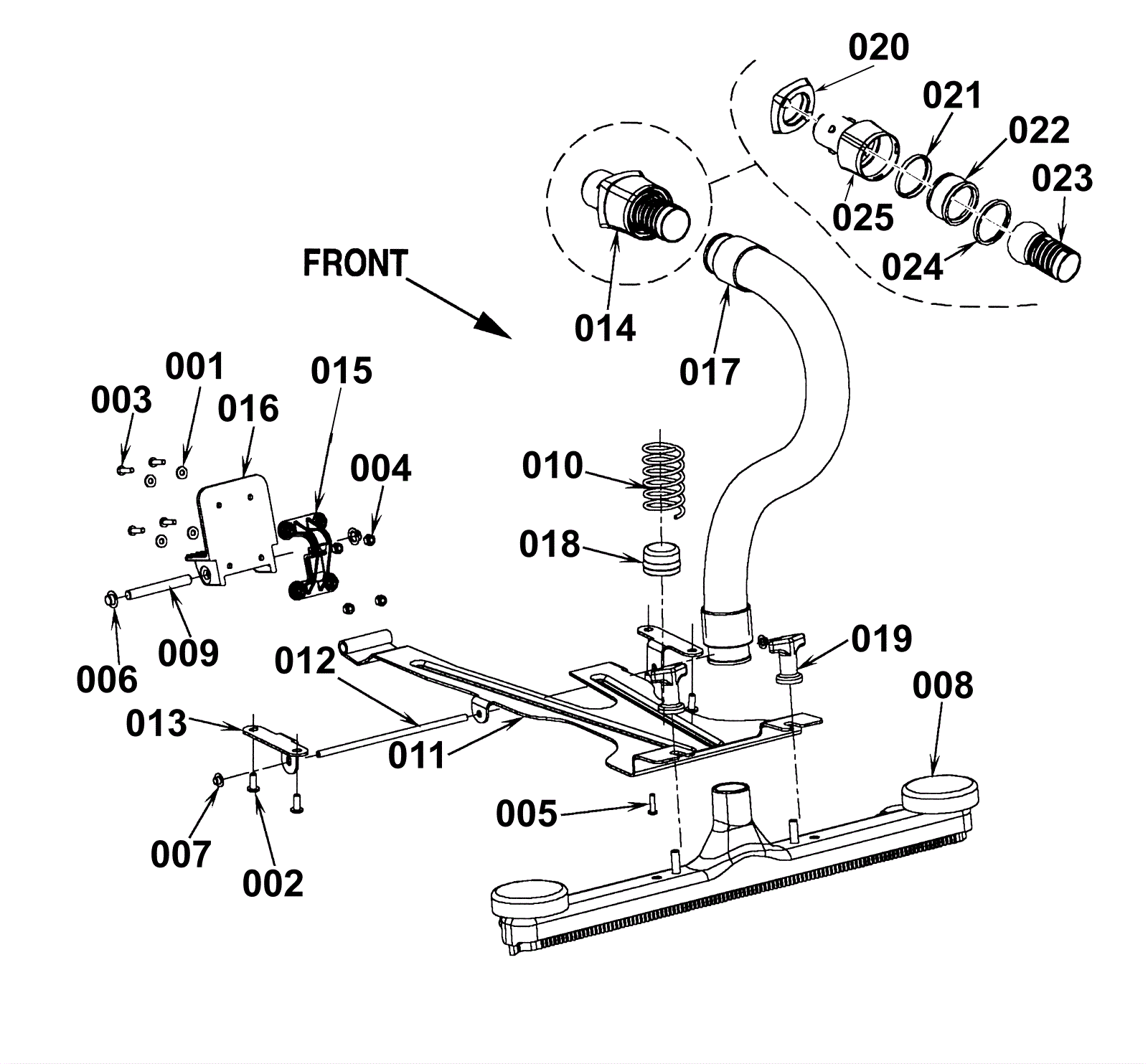

GW 6016 Squeegee System

#PartDescriptionPriceReqNotesAvailability
000 272-5133 Squeegee kit (OBSOLETE) $409.72 1 usually ships 1-5 days
001 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
002 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
003 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
005 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 1 ships same day
006 172-4142 Nut 3/8 push cap $9.60 2 usually ships 16-41 days
007 272-5254 Nut 1/4 push cap $9.60 2 usually ships 16-41 days
008 272-5111 24 inch squeegee assembly $278.30 1 ships same day
009 272-5117 Pedal axle $10.68 1 usually ships 1-5 days
010 272-5118 Compression spring (OBSOLETE) $12.44 1 usually ships 1-5 days
011 272-5119 Squeegee arm (OBSOLETE) $72.20 1 usually ships 1-5 days
012 272-5120 Squeegee axle (OBSOLETE) $7.36 1 usually ships 1-5 days
013 272-5121 Squeegee bracket $17.60 2 usually ships 1-5 days
014 272-2584 Adaptor assembly kit $141.99 1 usually ships 16-41 days
015 272-5123 Squeegee lift cam (OBSOLETE) $24.16 1 usually ships 16-41 days
016 272-5124 Pedal $49.86 1 usually ships 1-5 days
017 272-5125 Squeegee hose (OBSOLETE) $38.54 1 usually ships 16-41 days
018 272-5126 Spring housing (OBSOLETE) $25.61 1 usually ships 16-41 days
019 172-4099 Nut 5/16-18 thumb $10.24 1 ships same day
020 181-1448 Gasket - black $15.50 1 usually ships 16-41 days
021 272-5128 Inner ring (OBSOLETE) $6.26 1 usually ships 1-5 days
022 272-5129 Rubber retainer (OBSOLETE) $5.51 1 usually ships 1-5 days
023 N/A Not available Call for price 1 (Hose outlet coupling adaptor) usually ships 3-26 days
024 N/A Not available Call for price 1 (Outer ring) usually ships 3-26 days
025 272-2584 Adaptor assembly kit $141.99 1 usually ships 16-41 days
