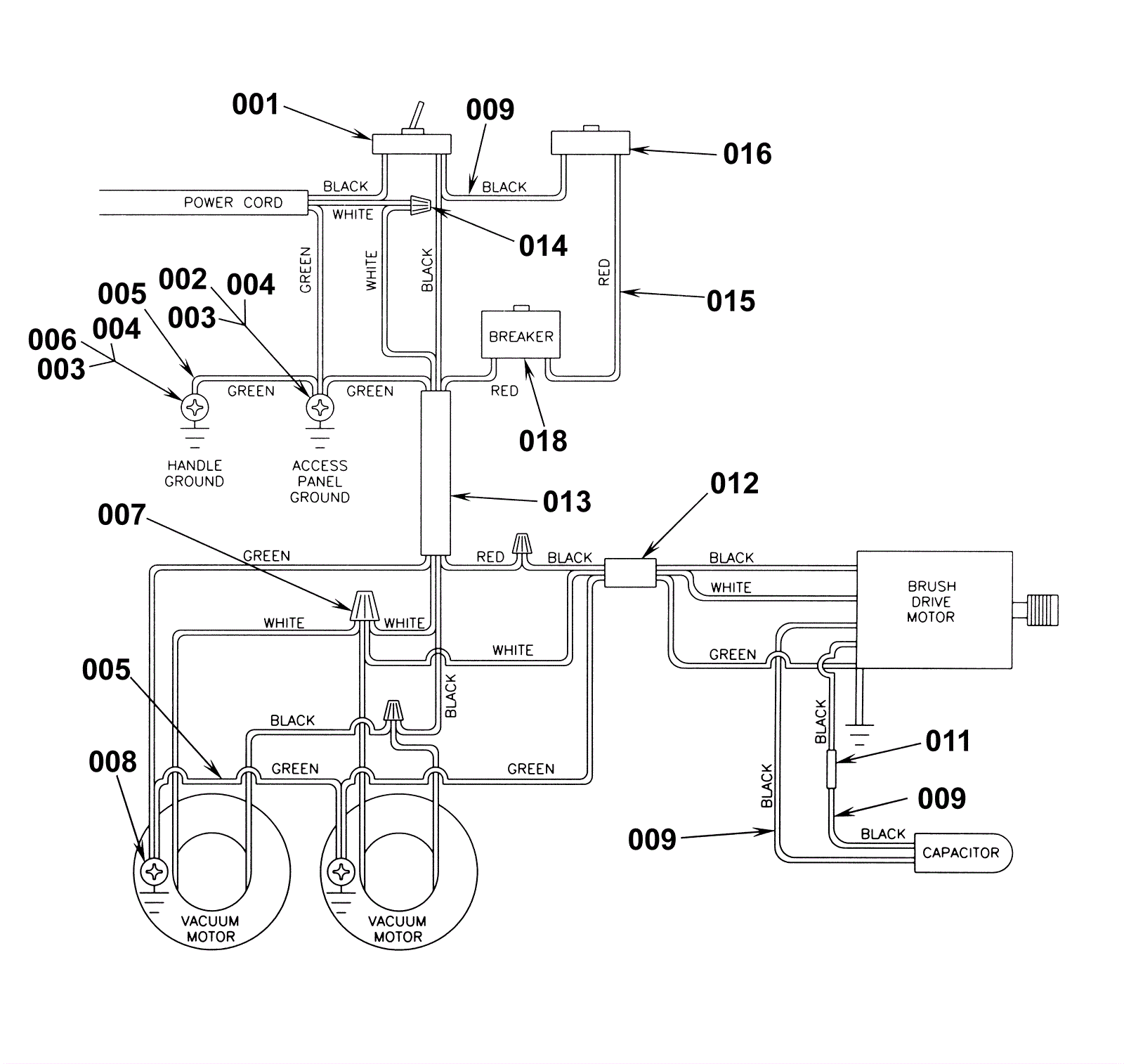

Champion 28 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 181-0294 Toggle switch $28.94 1 ships same day
002 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
003 999-0053 Washer #10 split lock plain finish $0.99 6 ships same day
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
005 181-0350 Wire Assembly (OBSOLETE) $6.90 2 usually ships 1-5 days
006 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
007 272-5223 Wire connector $10.90 1 usually ships 1-5 days
008 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
009 181-0351 Wire assembly $10.90 1 usually ships 1-5 days
011 181-0353 Conductor splice (OBSOLETE) $6.90 1 usually ships 1-5 days
012 181-0354 Electric cable $31.51 1 usually ships 1-5 days
013 181-0355 Wire assembly (OBSOLETE) $38.10 1 usually ships 1-5 days
014 172-4513 Wire connector $10.63 3 usually ships 1-5 days
015 181-0356 Wire Assembly $10.90 1 usually ships 1-5 days
016 181-0286 Push switch $78.77 1 usually ships 16-41 days
018 172-2160 10amp circuit breaker $68.27 1 usually ships 16-41 days
029b 991-9015 Paper vacuum bags (pkg of 10) $10.22 1 (NON-OEM) ships same day
