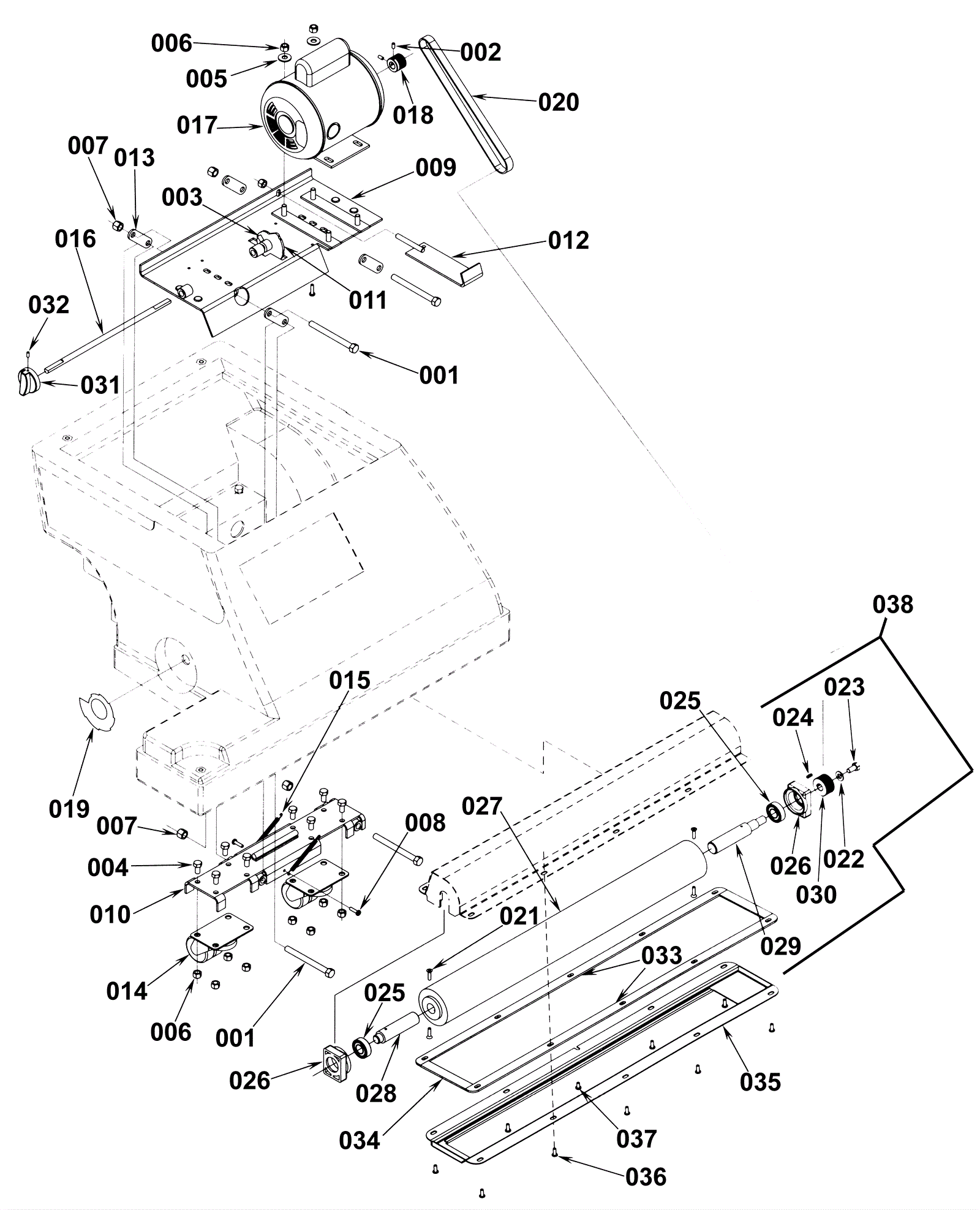

Brush Motor Assembly

#PartDescription ReqNotesAvailability
001 N/A Not available 4 (Not available) Screw
002 999-0903 Screw 10-24 x 3/8 knurled point socket set plain finish 2
003 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 1
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 5
006 999-0430 Nut 5/16-18 hex jam plain finish 11
007 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
008 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 4
009 181-0326 Motor bracket weldment 1
010 181-0327 Caster bracket weldment 1
011 181-0328 Height adjustment weldment 1
012 181-0329 Adjustment bracket weldment 1
013 181-0330 Steel bar 4
014 181-0331 Caster wheel 2
015 181-0332 Extension spring 2
016 181-0333 Height adjustment shaft 1
017a 181-0334 120V 1/3 HP Motor 1
017b 181-0335 Replacement capacitor 1
018 181-0336 Pulley 1
019 181-0337 Height adjustment instruction decal 1
020 181-0338 Poly V belt 1
021 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 4
022 999-0412 Washer #8 SAE flat 1
023 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
024 181-0339 Square keyway 1
025 181-0340 Ball bearing 2
026 181-0341 Bearing mount 2
027 181-0342 Cylindrical brush 1
028 181-0343 Brush shaft 1
029 181-0344 Brush shaft 1
030 181-0345 Pulley 1
031 172-6088 Knob (OBSOLETE) 1
032 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
033 181-0346 Foam gasket 2
034 181-0347 Foam gasket strip 2
035 372-4032 28 inch bottom plate 1
036 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
037 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
038 181-0670 Brush assembly 1 includes 021 thru 030
