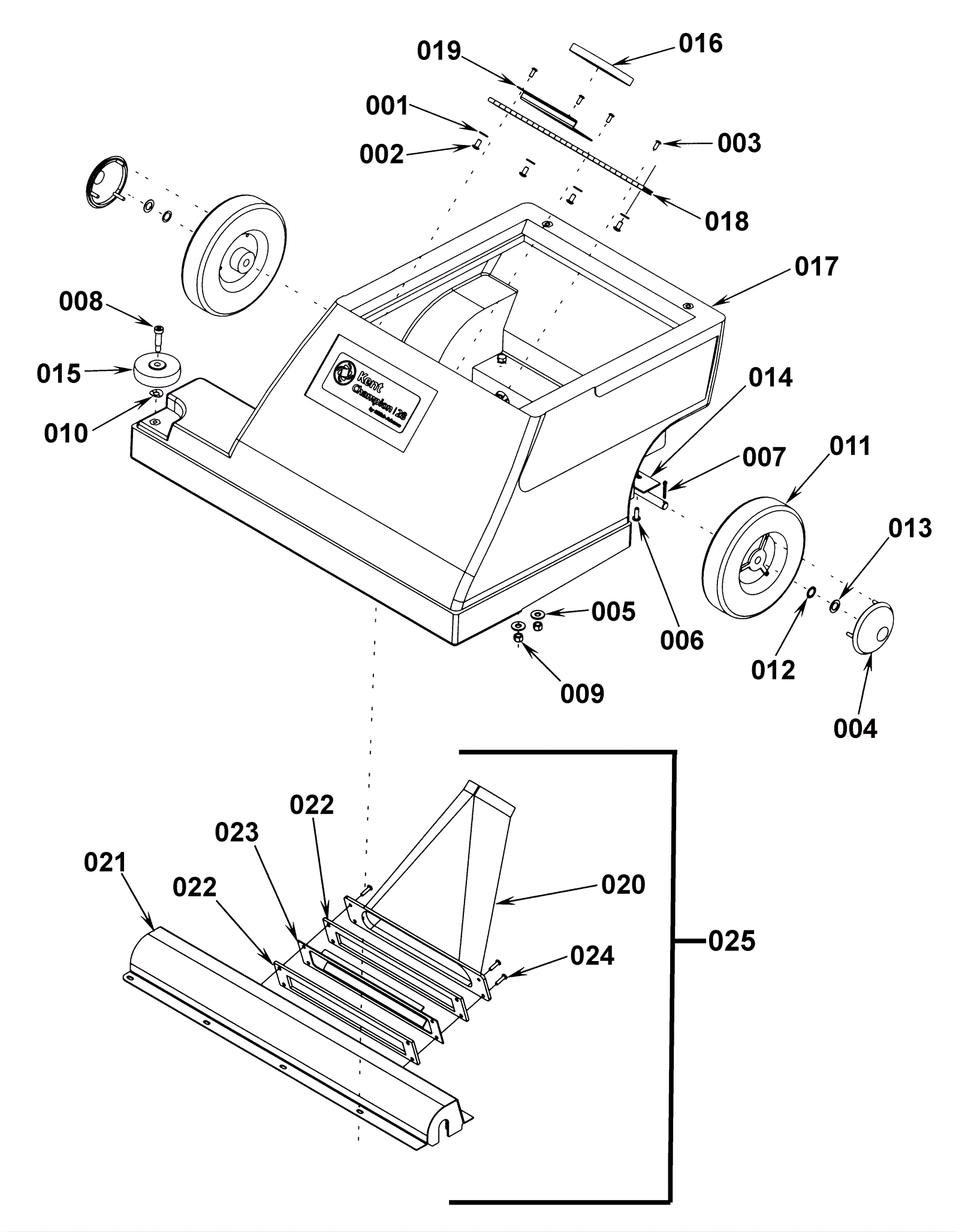

Base Housing

#PartDescription ReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated 4
002 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 4
003 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 4
004 181-0314 Hub cap (OBSOLETE) 2
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
006 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
007 997-2503 Cotter pin 1/8 x 1 2
008 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 1
009 999-0430 Nut 5/16-18 hex jam plain finish 4
010 172-6237 Washer 3/8 bowed (OBSOLETE) 1
011 181-0315 8 inch wheel 1
012 272-5215 Washer 17/32 2
013 181-0109 Washer 17/32 x 7/8 x 1/32 flat 2
014 181-0316 Rear axle weldment 1
015 181-0317 Wheel 1
016 181-0279 Foam gasket 1
017 272-2861 28 inch upright base 1
018 181-0319 Butt hinge 1
019 181-0320 Intake tube bracket 1
020 181-0322 Intake tube 1
021 181-0323 Brush housing weldment 1
022 181-0324 Foam gasket 2
023 181-0325 Steel plate 1
024 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
025 181-0321 Brush housing assembly 1 Includes items 020-024
N/S 181-0321 Brush housing assembly 1 includes items 20 - 24
