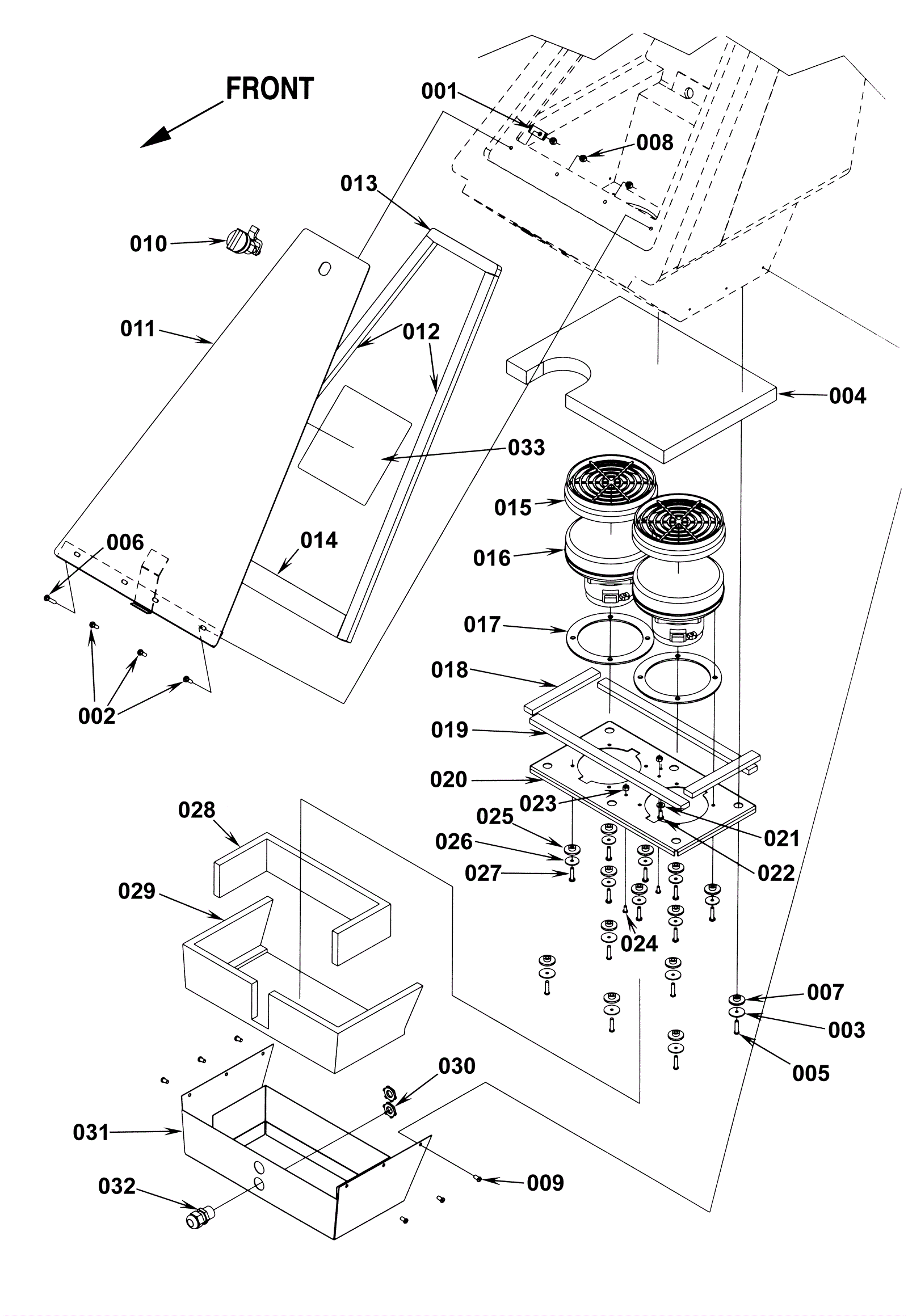

Vac Motor Assembly

#PartDescription ReqNotesAvailability
001 172-2122 P clamp 1
002 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 3
003 N/A Not available 6 (Washer)
004 181-0298 Bag guard 1
005 182-0012 Screw 10-14 x .88 phillips pan plastite 6
006 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
007 181-0299 Bushing 6
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
009 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 12
010 181-0301 Twist latch 1
011 181-0302 Door Weldment 1
012 181-0303 Gasket 2
013 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 12
014 181-0304 Gasket 1
015 991-5119 Vacuum motor filter 2
016a 172-6251 120V vacuum motor 2
016b 991-1206 120V 1 stage vacuum motor peripheral 2 (NON-OEM)
017 172-0351 Vacuum motor gasket 2
018 181-0305 Foam Gasket 2
019 181-0306 Foam Gasket 2
020 181-0307 Vac Motor Mounting Plate 1
021 999-0053 Washer #10 split lock plain finish 1
022 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
023 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 2
024 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
025 181-0299 Bushing 8
026 999-0588 Washer 7/8 flat stainless steel 8
027 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 8
028 181-0310 Foam Gasket 1
029 181-0311 Foam Gasket 1
030 172-4536 Nut 1/2-14 conduit lock 2
031 181-0312 Muffler weldment 1
032 172-4018 Strain relief 1
033 181-0313 Wiring decal (OBSOLETE) 1
KIT 272-5210 Vacuum motor assembly 1 includes items 015 - 027
KIT 181-0300 Door assembly 1 includes items 010 - 014
KIT 181-0309 Muffler assembly 1 includes items 028 - 032
