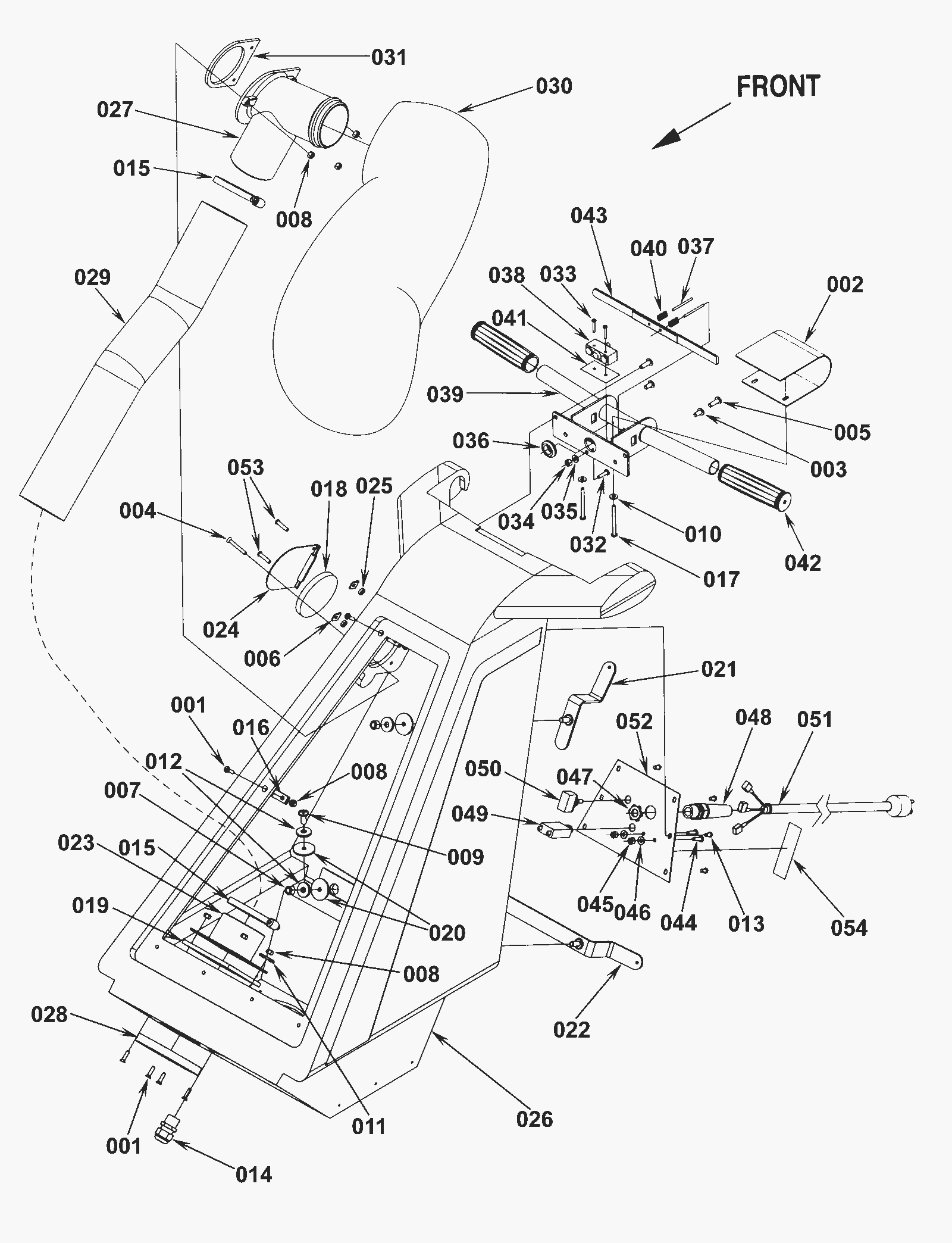

Handle Assembly

#PartDescription ReqNotesAvailability
002 181-0267 Switchbox weldment 1
003 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
005 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
006 N/A Not available 2 (P clamp)
007 999-0430 Nut 5/16-18 hex jam plain finish 3
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 9
010 999-0053 Washer #10 split lock plain finish 2
013 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 6
014 172-4018 Strain relief 2
015 997-2009 Hose clamp 2
017 272-5203 Screw 10-24 X 2 1/4 phillips pan 2
021 N/A Not available 1 (Not available) Cord hook weldment
022 181-0273 Lower Cord Hook Weldment (OBSOLETE) 1
023 181-0274 Hose connector weldment 1
024 N/A Not available 1 (Accessory door weldment)
025 N/A Not available 2 (Spacer)
026 N/A Not available 1 (Upper tank)
028 181-0279 Foam gasket 1
030b 172-2883 Bag clip for cloth bag 1 Slides on the bottom of cloth bag
030d 991-9032 Paper vacuum bags (pkg of 3) 1 (NON-OEM)
031 N/A Not available 1 (Foam gasket)
033 182-0012 Screw 10-14 x .88 phillips pan plastite 2
034 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
035 999-0053 Washer #10 split lock plain finish 1
038 181-0286 Push switch 1
040 181-0288 Compressed Spring 2
043 181-0291 Trigger 1
044 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
046 999-0053 Washer #10 split lock plain finish 2
047 172-4536 Nut 1/2-14 conduit lock 1
048 174-3053 Strain relief 1
050 181-0294 Toggle switch 1
051a 181-0295 14/3 power cord 75 foot 1
051b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
051c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
053 182-0012 Screw 10-14 x .88 phillips pan plastite 2
N/S 181-0283 Handle assembly 1 includes items 032 - 043
N/S 181-0292 Electrical assembly 1 includes items 044 - 052
