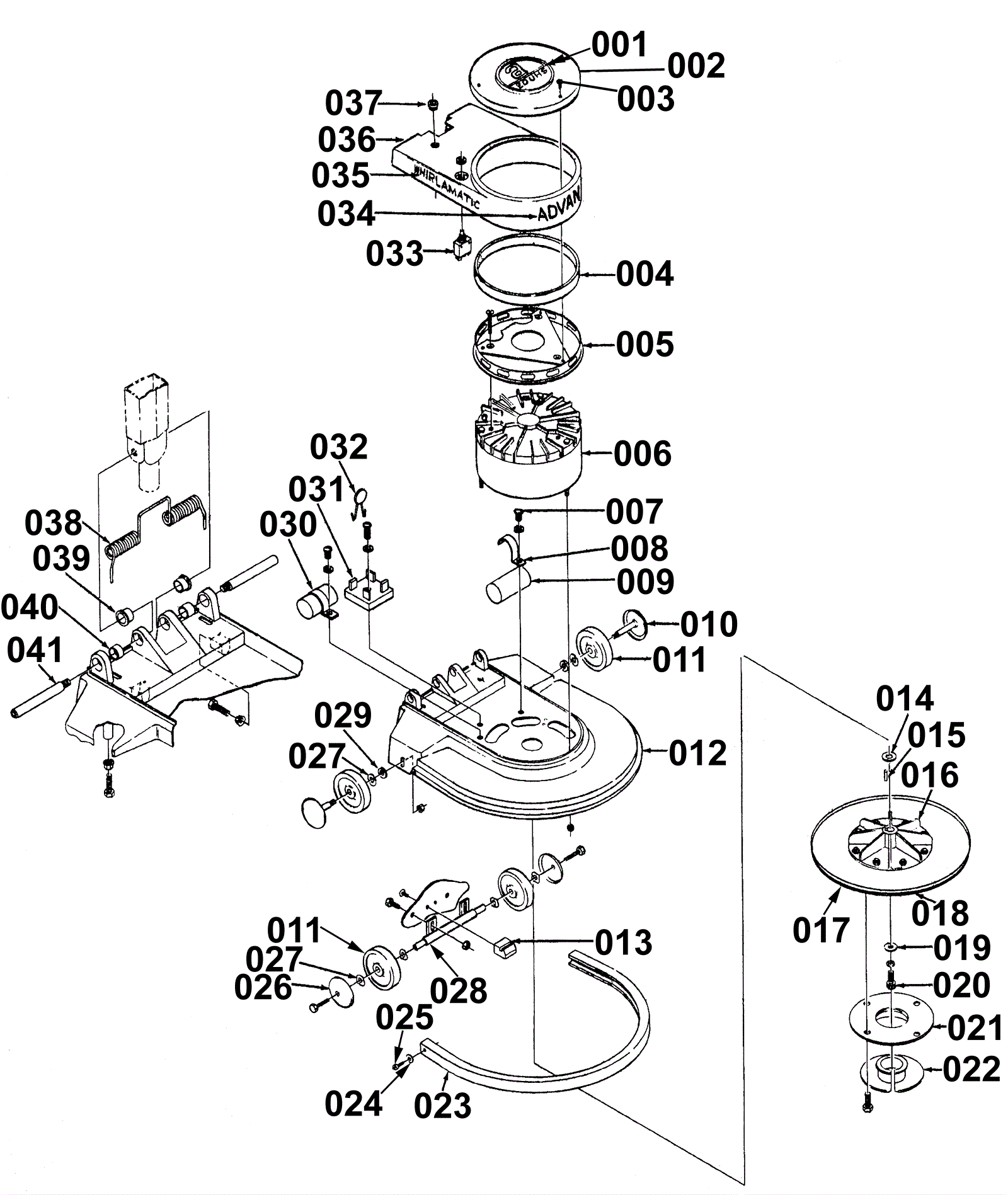

WHIRLAMATIC 1520UHS Base Assembly

#PartDescriptionPriceReqNotesAvailability
009 172-1758 Capacitor $146.14 1 usually ships 17-28 days
010 272-1669 Axle kit (OBSOLETE) $196.37 2 usually ships 17-28 days
011 172-3010 Wheel $53.55 4 usually ships 17-28 days
026 172-0553 Washer 17/64 x 1/16 flat $10.85 2 usually ships 17-28 days
027 272-1670 Washer 3/8 bowed $10.85 6 usually ships 17-28 days
029 172-2067 Washer 11/32 x 1/8 flat $12.31 2 usually ships 17-28 days
N/S 172-4139 35amp rectifier $13.76 1 AC rectifier ships same day
