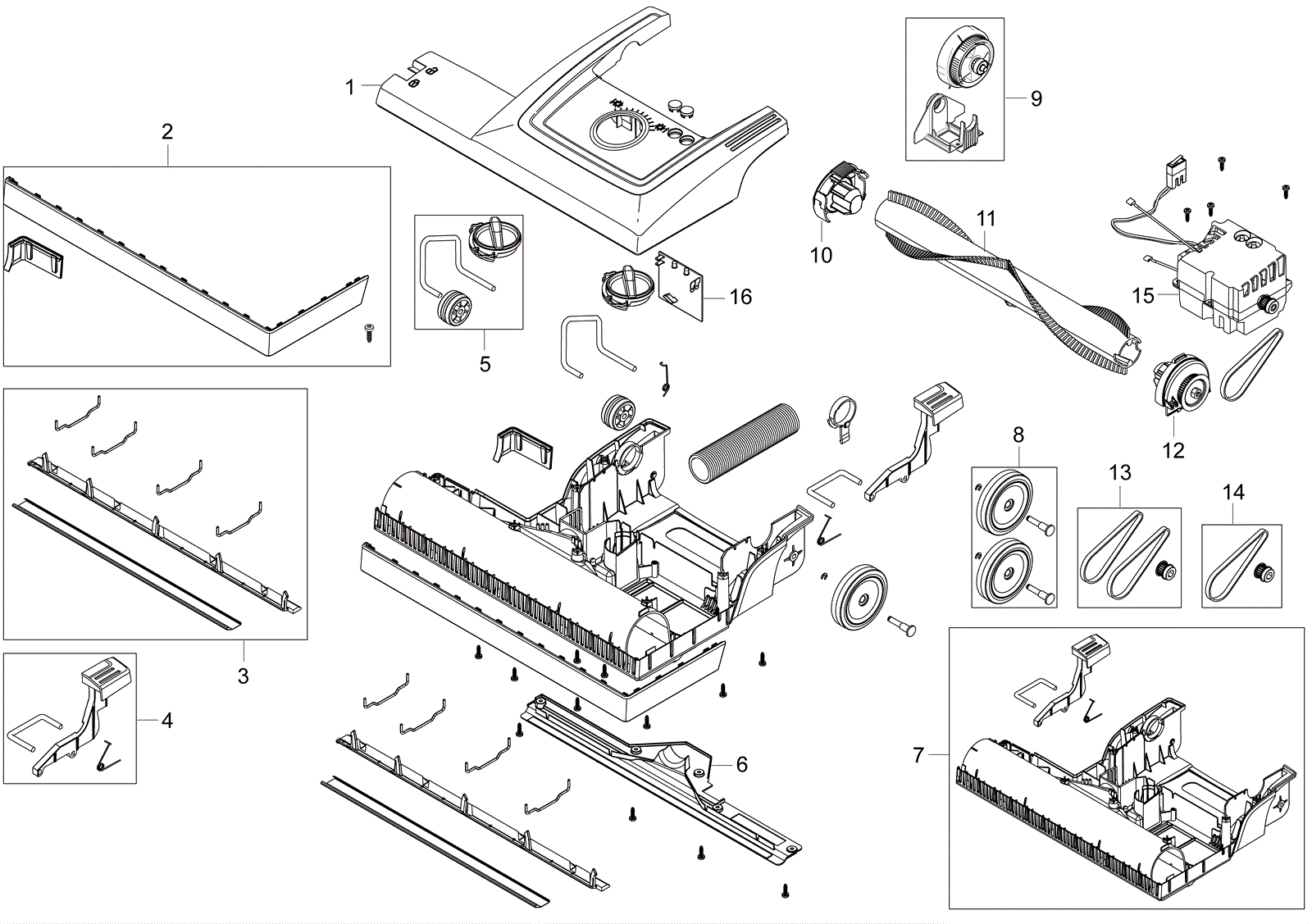

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-9218
|
12 inch single motor brush housing cover (gray) |
1 |
|
|
2 |
272-6121
|
Bumper kit |
1 |
|
|
3 |
272-9226
|
12 inch brush shoe support kit |
1 |
|
|
4 |
272-9237
|
Pedal with shaft and spring |
1 |
|
|
5 |
272-9235
|
Height adjustment kit |
1 |
|
|
6 |
272-9229
|
12 inch brush shoe |
1 |
|
|
7 |
272-9223
|
12 inch chassis |
1 |
|
|
8 |
272-9236
|
Wheel kit |
1 |
|
|
9 |
272-9217
|
Clutch and bearing kit |
1 |
|
|
10 |
272-9213
|
Bearing cover |
1 |
|
|
11 |
272-9210
|
12 inch brush roller |
1 |
|
|
12 |
272-9214
|
Bearing |
1 |
|
|
13 |
272-9215
|
Drive belt kit for single motor vacuums |
1 |
|
|
14 |
N/A
|
Not available |
1 |
(Not used on single motor units) |
|
15a |
272-9206
|
Brush motor with circuit board with green and red lights |
1 |
|
|
15b |
372-4039
|
Micro switch |
1 |
|
|
16 |
270-0440
|
120V power control board kit |
|
|
|
