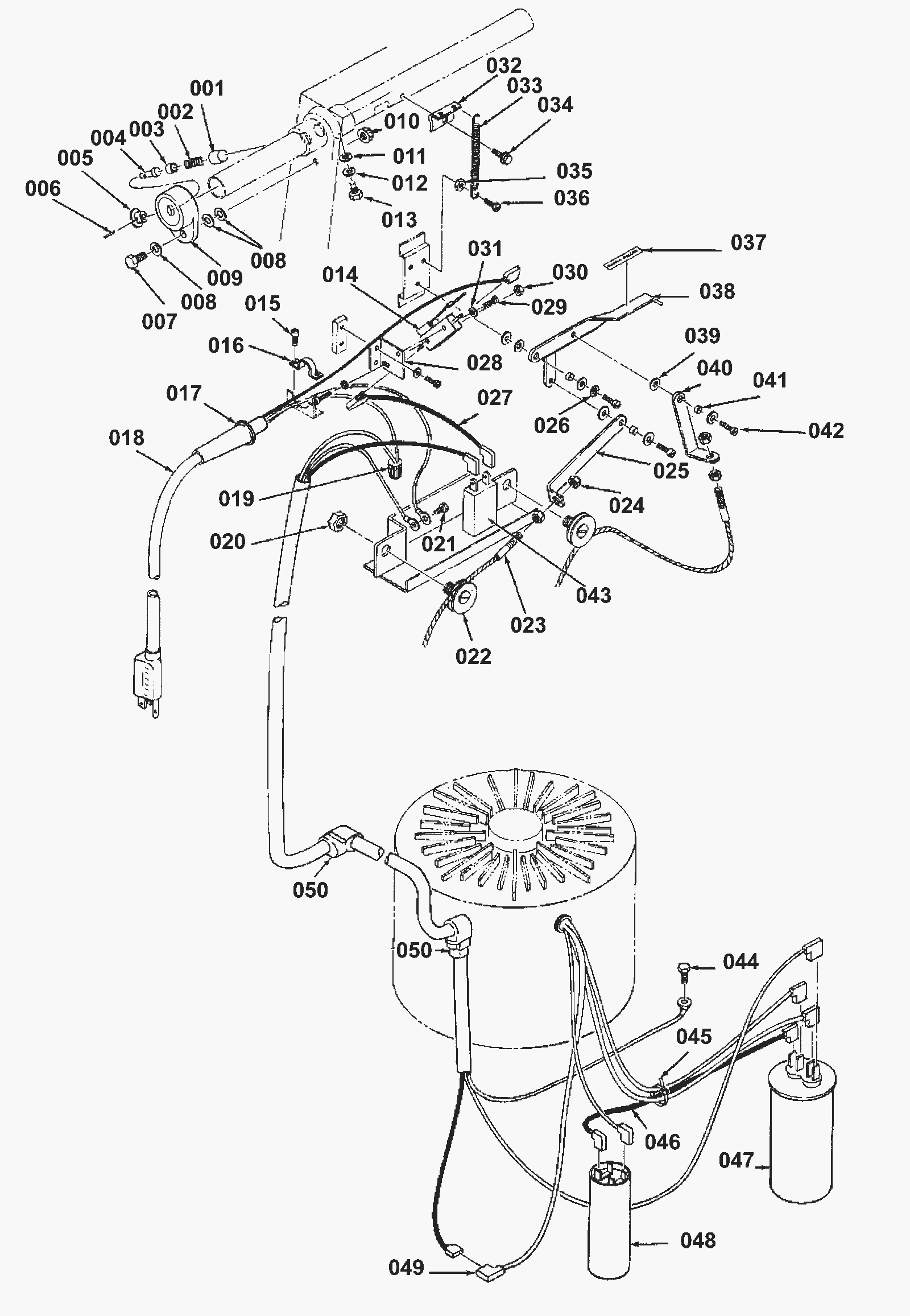

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-4529
|
Bushing |
1 |
|
|
002 |
172-4632
|
Spring |
1 |
|
|
003 |
172-3031
|
Plunger |
1 |
|
|
004 |
172-4630
|
Pin |
1 |
|
|
005 |
172-4526
|
Knob |
1 |
|
|
006 |
172-4527
|
Spring pin |
1 |
|
|
007 |
N/A
|
Not available |
1 |
Screw 1/4-20 x 5/8 |
|
008 |
N/A
|
Not available |
3 |
Washer 1/4 flat |
|
009 |
172-4525
|
Collar |
1 |
|
|
010 |
N/A
|
Not available |
1 |
Nut 1/4-20 whiz |
|
011 |
N/A
|
Not available |
1 |
Washer shakeproof |
|
012 |
N/A
|
Not available |
1 |
Washer 5/16 flat |
|
013 |
172-4505
|
Screw |
1 |
|
|
014 |
172-0270
|
Snap switch (OBSOLETE) |
1 |
|
|
015 |
N/A
|
Not available |
4 |
Screw #8-32 x 5/8 |
|
016 |
N/A
|
Not available |
1 |
Clamp strain relief |
|
017 |
N/A
|
Not available |
1 |
Strain relief |
|
018 |
172-6258
|
14/3 power cord 75 foot (OBSOLETE) |
1 |
|
|
019 |
172-4513
|
Wire connector |
1 |
|
|
020 |
N/A
|
Not available |
2 |
Nut 7/16-14 hex |
|
021 |
N/A
|
Not available |
2 |
Screw #10-24 x 1/2 |
|
022 |
272-0105
|
Pulley idler 1-1/4 x 19/64 (OBSOLETE) |
2 |
|
|
023 |
172-0018
|
Wire rope assembly (OBSOLETE) |
2 |
|
|
024 |
N/A
|
Not available |
4 |
Nut 1/4-20 hex |
|
025 |
272-0106
|
Link (OBSOLETE) |
1 |
|
|
026 |
N/A
|
Not available |
1 |
Washer shakeproof |
|
027 |
272-0107
|
Wire assembly #14 x 6 (OBSOLETE) |
2 |
|
|
028 |
272-0108
|
Switch plate (OBSOLETE) |
1 |
|
|
029 |
N/A
|
Not available |
2 |
Screw #4-40 x 7/8 |
|
030 |
N/A
|
Not available |
1 |
Nut #4 hex |
|
031 |
N/A
|
Not available |
2 |
Washer #4 flat |
|
032 |
272-0109
|
Spring mounting tab (OBSOLETE) |
1 |
|
|
033 |
172-4506
|
Extension spring (OBSOLETE) |
2 |
|
|
034 |
N/A
|
Not available |
1 |
Screw #8-32 x 1/2 |
|
035 |
N/A
|
Not available |
2 |
Nut #10-24 hex |
|
036 |
N/A
|
Not available |
2 |
Screw #10-24 x 3/4 |
|
037 |
172-5019
|
Handle decal |
1 |
|
|
038 |
272-0110
|
Handle weldment (OBSOLETE) |
1 |
|
|
039 |
N/A
|
Not available |
7 |
Washer #10 flat |
|
040 |
272-0111
|
Link cable (OBSOLETE) |
1 |
|
|
041 |
172-4064
|
Bushing |
3 |
|
|
042 |
N/A
|
Not available |
3 |
Screw #10-24 x 3/4 |
|
043a |
172-9572
|
15amp circuit breaker |
1 |
|
|
043b |
172-2160
|
10amp circuit breaker |
1 |
|
|
043c |
991-8539
|
15amp circuit breaker |
1 |
(NON-OEM) |
|
044 |
N/A
|
Not available |
2 |
Screw #10-24 x 1/2 |
|
045 |
997-2101
|
6 inch cable tie |
2 |
|
|
046 |
272-0107
|
Wire assembly #14 x 6 (OBSOLETE) |
2 |
|
|
047a |
N/A
|
Not available |
1 |
Capacitor |
|
047b |
172-3023
|
Capacitor 115v (OBSOLETE) |
1 |
|
|
048a |
272-0114
|
Capacitor 108-130 mfd (OBSOLETE) |
1 |
|
|
048b |
N/A
|
Not available |
1 |
Capacitor |
|
049 |
272-0116
|
Receptacle flag |
1 |
|
|
050 |
172-6146
|
Strain relief |
2 |
|
|
