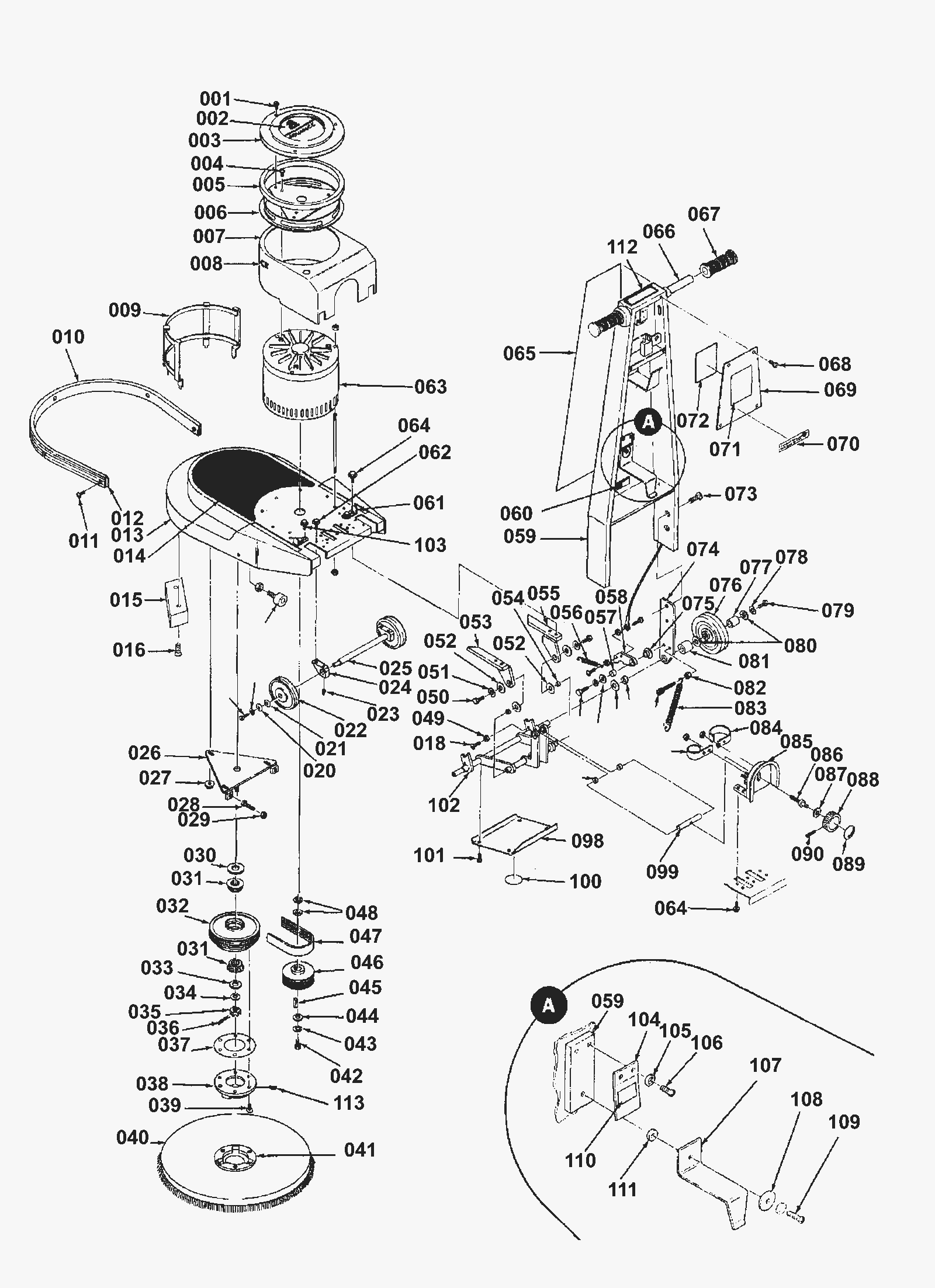

Handle and Base Assembly

#PartDescription ReqNotesAvailability
001 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 3
002 N/A Not available 1 (Advance decal)
003 172-8070 Shroud cover (OBSOLETE) 1
004 N/A Not available 3 Screw 5/16-18 x 5/8
005 172-8069 Filter (OBSOLETE) 1
006 N/A Not available 1 Bracket weldment
007 272-0059 Shroud (OBSOLETE) 1
008 270-0060 2 sided velcro 14 x 20 inch 1
009 272-0061 Support weldment (OBSOLETE) 1
010 272-0062 Bumper (OBSOLETE) 1
011 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 5
012 272-0053 Bumper strap (OBSOLETE) 1
013 N/A Not available 1 (Base decal)
014 272-0056 Base weldment 1
015 272-0057 Weight (OBSOLETE) 2
016 N/A Not available 4 Screw 1/2-20 x 1/2
017 172-2666 Bumper 4
018 N/A Not available 6 #10-24 x 5/8
019 N/A Not available 2 #10 Shakeproof washer
020 999-0588 Washer 7/8 flat stainless steel 2
021 272-1670 Washer 3/8 bowed 2
022 172-3010 Wheel 2
023 N/A Not available 2 Setscrew 1/4-20 x 3/8
024 272-0064 Block (OBSOLETE) 2
025 N/A Not available 1 Axle
026 272-0066 Plate weldment (OBSOLETE) 1
027 N/A Not available 3 Nut 5/16-18
028 N/A Not available 2 Screw 1/4-20 x 1-1/4
029 N/A Not available 2 Nut 1/4-20
030 172-4572 Seal shaft 1
031 172-4570 Bearing 2
032 272-0067 Pully with bearing pc404x (OBSOLETE) 1
033 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 1
034 N/A Not available 1 Washer 9/16
035 999-0425 Nut 9/16-12 hex slotted plain finish 1
036 N/A Not available 1 Cotter Key
037 272-0068 Gasket (OBSOLETE) 1
038 272-0069 Casting drive cap (OBSOLETE) 1
039 N/A Not available 6 Screw #12-24 x 5/8
040 996-0709 20 inch pad driver 1
041 172-8422 Clutch plate (OBSOLETE) 1
042 N/A Not available 1 Screw 5/16-24 x 5/8
043 N/A Not available 3 Washer 5/16 shakeproof
044 172-3047 Washer 11/32 x 1/8 flat 1
045 172-3045 Key 1
046a 272-0071 Sheave j-12 x 3-3/4 (OBSOLETE) 1
046b 272-0072 Sheave j-12 x 4-1/2 (OBSOLETE) 1
047a 272-0073 Poly V belt (OBSOLETE) 1
047b 272-0074 Belt, poly-v 370j12 (OBSOLETE) 1
048 172-0551 Washer 25/32 x 1 5/8 x 1/64 2
049 N/A Not available 12 Nut #10-24
050 N/A Not available 2 Screw 1/4-20 x 1
051 N/A Not available 2 Washer 1/4 shakeproof
053 272-0075 Bracket weldment left hand (OBSOLETE) 1
054 172-0048 Bearing 2
055 272-0076 Bracket weldment right hand (OBSOLETE) 1
056 172-8197 Extension spring 2
057 172-4008 Bushing 2
058 272-0077 Catch assembly (OBSOLETE) 2
059 272-0078 Handle weldment (OBSOLETE) 1
060 N/A Not available 1 (Name plate)
061 N/A Not available 5 Clip
062 N/A Not available 2 Screw #10-24 x 5/8
063a N/A Not available 1 Motor 115V
063b N/A Not available 1 motor 230V
064 N/A Not available 14 Screw 1/4-20 x 5/8
065 N/A Not available 1 (Handle decal)
066 272-0084 Handle tube (OBSOLETE) 1
067a 164-0304 Handle grip 2
067b 172-1057 Solution tank lid (OBSOLETE) 2 (NON-OEM)
067c 991-8571 Handle grip 2 (NON-OEM)
068 N/A Not available 4 Screw #8-32 x 3/8
069 172-1375 Cover plate (OBSOLETE) 1
070 N/A Not available 1 (Breaker decal)
071 172-5020 Warning decal (OBSOLETE) 1
072 N/A Not available 1 (Wiring decal)
073 N/A Not available 4 Screw 5/16-18 x 5/8
074 272-0088 Plate (OBSOLETE) 1
075 172-2742 Bushing 2
076 172-4549 5 inch wheel (OBSOLETE) 2
077 272-0090 Sleeve 3/8 x 1/2 x 1-3/16 (OBSOLETE) 2
078 N/A Not available 2 Washer shakeproof
079 N/A Not available 2 Screw 3/8-16 x 2
080 272-1835 Washer flat 4
081 172-2623 Collar (OBSOLETE) 2
082 N/A Not available 2 Nut 5/16-18
083 272-0091 Spring extension 1/2 x 6 cl11j 4
084a 272-0092 Clamp 2 diamater (OBSOLETE) 1
084b 272-0093 Capicitor clamp 230v (OBSOLETE) 1
085 272-0094 Bracket weldment (OBSOLETE) 1
086 272-0095 Shaft adjust (OBSOLETE) 1
087 172-6237 Washer 3/8 bowed (OBSOLETE) 1
088 172-0078 Knob 1
089 N/A Not available 1 (Pad pressure decal)
090 N/A Not available 1 Setscrew #10-24 x 1/2
091 272-0097 Clamp 1-3/8 diamater (OBSOLETE) 1
092 N/A Not available 2 Screw 5/16-18 x 1-1/2
093 172-0079 Sleeve bearing (OBSOLETE) 2
094 N/A Not available 2 Washer 5/8
095 172-2067 Washer 11/32 x 1/8 flat 2
096 N/A Not available 2 Screw 5/16-18 x 5/8
097 N/A Not available 2 (Sleeved bearing) (please order 172-0069)
098 272-0098 Cover plate (OBSOLETE) 1
099 272-0099 Shaft (OBSOLETE) 1
100 172-5044 Hands clear decal 2
101 N/A Not available 4 Screw #10-24 x 1/4
102 272-0100 Axle weldment (OBSOLETE) 1
103 N/A Not available 2 Screw #10-24 x 5/8
104 272-0101 Spring (OBSOLETE) 1
105 N/A Not available 2 Washer #10 shakeproof
106 N/A Not available 2 Screw #10-24 x 1/4
107 272-0102 Cord hook (OBSOLETE) 1
108 272-0103 Washer 7/32 flat 1
109 N/A Not available 1 Screw #10-24 x 1/2
110 N/A Not available 1 (Cord hook decal)
111 172-2836 Bushing (OBSOLETE) 1
112 172-5023 Warning decal (OBSOLETE) 1
113 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 3
