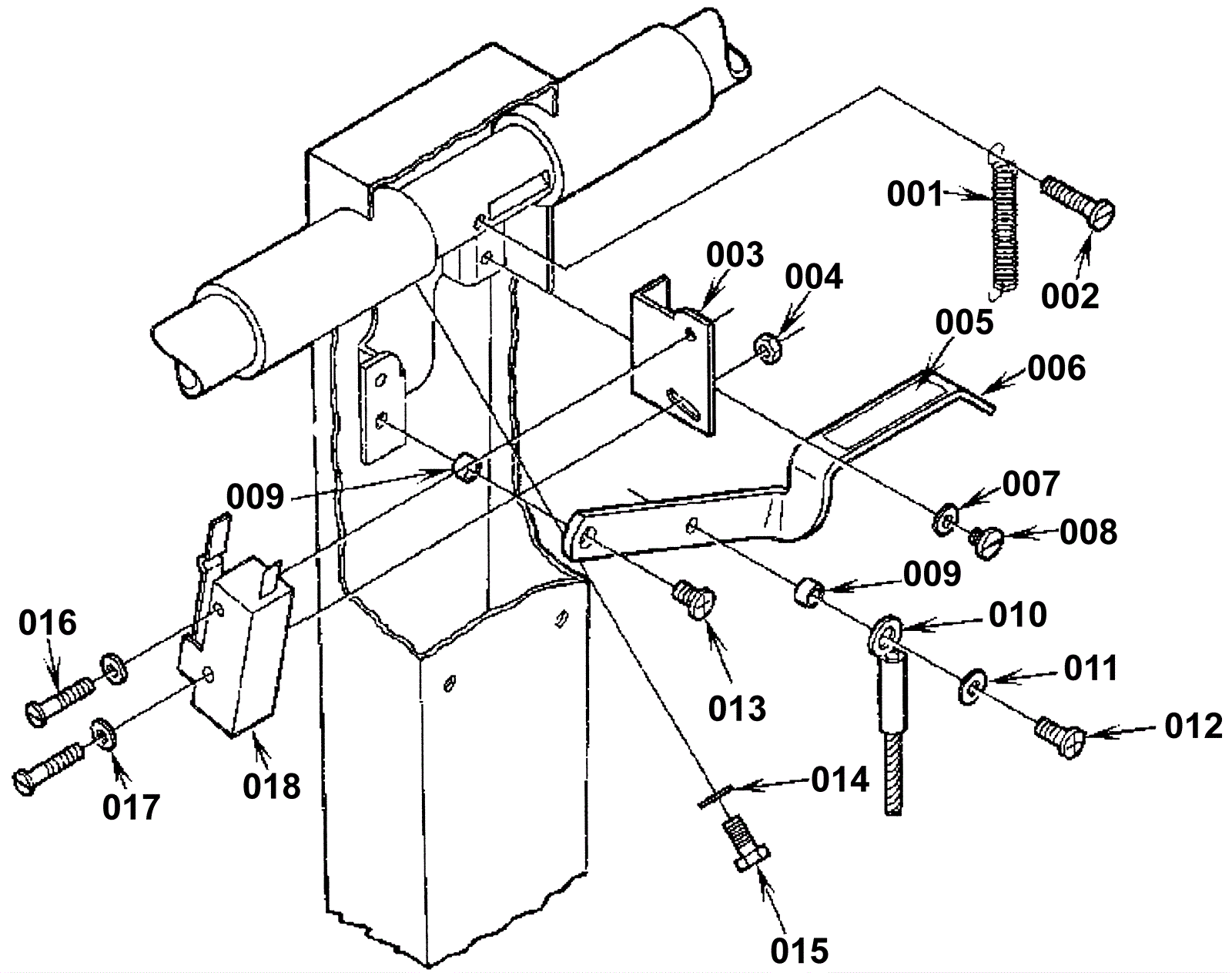

WHIRLAMATIC UHS20 Handle Assembly-Rear View

#PartDescriptionPriceReqNotesAvailability
001 172-4506 Extension spring (OBSOLETE) $18.39 1 usually ships 16-41 days
002 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 1 ships same day
003 172-4507 Bracket $17.06 1 usually ships 16-41 days
004 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 1 ships same day
005 172-5019 Handle decal $19.45 1 usually ships 16-41 days
006 172-4514 Lever (OBSOLETE) $59.92 1 usually ships 16-41 days
007 999-0412 Washer #8 SAE flat $0.99 5 ships same day
008 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 5 ships same day
009 172-4064 Bushing $13.76 2 usually ships 16-41 days
010 172-4504 Wire rope assembly $63.07 1 usually ships 16-41 days
011 172-4512 Washer 17/64 x 1/2 bowed $10.85 1 usually ships 1-5 days
012 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish $0.99 1 ships same day
013 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
014 999-0406 Washer 5/16 internal star lock zinc plated $0.99 1 ships same day
015 172-4505 Screw $8.83 1 usually ships 16-41 days
016 999-0339 Screw 4-40 x 7/8 round head slotted zinc plated $0.99 2 ships same day
017 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
018a 172-4628 Snap switch (OBSOLETE) (SEE NOTE) $42.39 1 usually ships 16-41 days
018b 472-5267 SWITCH SPST N.O. SNAP $37.05 1 (replaces 018b with SN starting with 1948872) usually ships 16-41 days
N/S 172-4513 Wire connector $11.69 1 usually ships 1-5 days
N/S 997-2101 6 inch cable tie $0.99 1 ships same day
