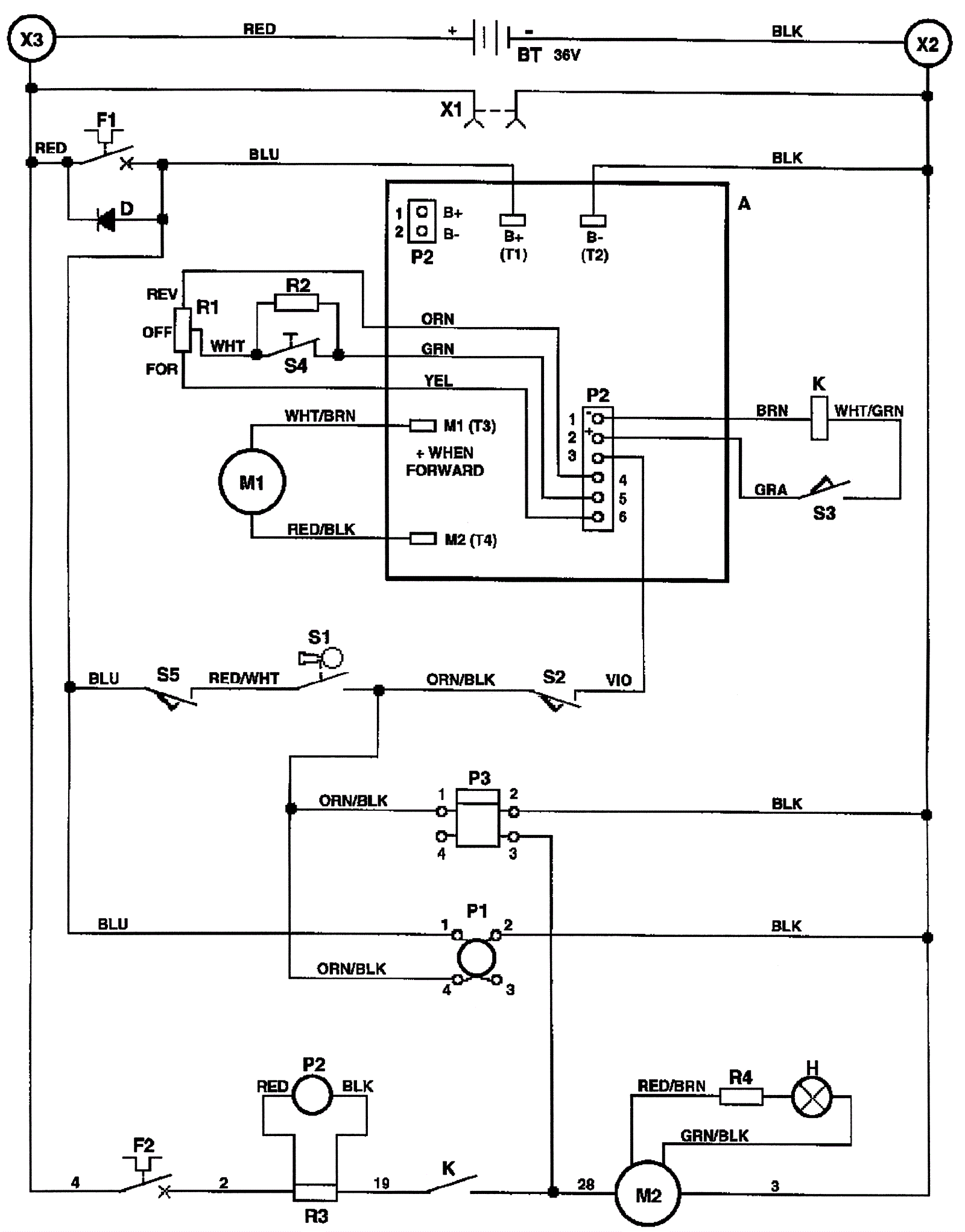

WHIRLAMATIC VS-20 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
A 272-2585 36V Curtis speed control $981.13 1 usually ships 17-28 days
D 172-3120 Diode assembly (OBSOLETE) $23.21 1 usually ships 1-5 days
F1a 172-9572 15amp circuit breaker $77.12 1 usually ships 17-28 days
F1b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
F2 181-1355 70amp circuit breaker $321.78 1 usually ships 17-28 days
Ha 172-8177 24V indicator light (red) $22.41 1 (before Feb. 1988) usually ships 1-5 days
Hb 181-1339 36V indicator light (red) $21.00 1 (after Jan. 1988) usually ships 17-28 days
K 172-2805 36V contactor $100.10 1 ships same day
M1a 172-3129 24V DC motor (OBSOLETE) $1,169.30 1 usually ships 1-5 days
M1b 172-3130 Carbon brush (pkg of 2) (OBSOLETE) $93.17 1 usually ships 1-5 days
M2 181-1359 Brush motor $1,297.48 1 usually ships 17-28 days
N/S 172-3132 Cable assembly #.6 x 9 inch (OBSOLETE) $23.87 1 usually ships 1-5 days
N/S 172-3133 Cable assembly #4 x 10 inch (OBSOLETE) $42.02 1 usually ships 1-5 days
N/S 172-3134 Cable assembly #4 x 29 inch (OBSOLETE) $23.76 1 usually ships 1-5 days
N/S 172-3135 Cable assembly #6 x 29 inch $92.40 1 usually ships 1-5 days
N/S 172-3136 Harness (OBSOLETE) $481.91 1 usually ships 1-5 days
N/S 181-1369 Cable assembly (OBSOLETE) $34.32 1 usually ships 1-5 days
N/S N/A Not available Call for price 1 (Pressure decal) usually ships 3-26 days
P1 172-9588 Battery fuel gauge $235.68 1 usually ships 1-5 days
P2 172-8173 Ammeter $171.88 1 usually ships 17-28 days
P3 172-2162 Hour meter $215.00 1 (optional) usually ships 17-28 days
R1 172-2039 5K potentiometer $63.07 1 ships same day
R2 172-3121 5.6k resistor assembly (OBSOLETE) $42.13 1 usually ships 1-5 days
R3 164-3029 Shunt $74.97 1 usually ships 18-33 days
R4 N/A Not available Call for price 1 (Before February 1998) Resistor assembly usually ships 3-26 days
S1 172-6004 Toggle switch $46.00 1 usually ships 17-28 days
S2 272-1683 Mercury switch assembly $231.04 1 usually ships 1-5 days
S3 172-2301 Snap switch $46.22 1 usually ships 17-28 days
S4 172-0219 Rocker switch $69.01 1 usually ships 17-28 days
X1 172-3123 36V connector assembly $174.90 1 usually ships 1-5 days
X2 N/A Not available Call for price 1 (Negative terminal stud) usually ships 3-26 days
X3 N/A Not available Call for price 1 (Wheel motor disc) usually ships 3-26 days
BT 162-0003 6V 225Ah wet battery (SNSR) $269.50 6 ships same day
BT 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 6 ships same day
