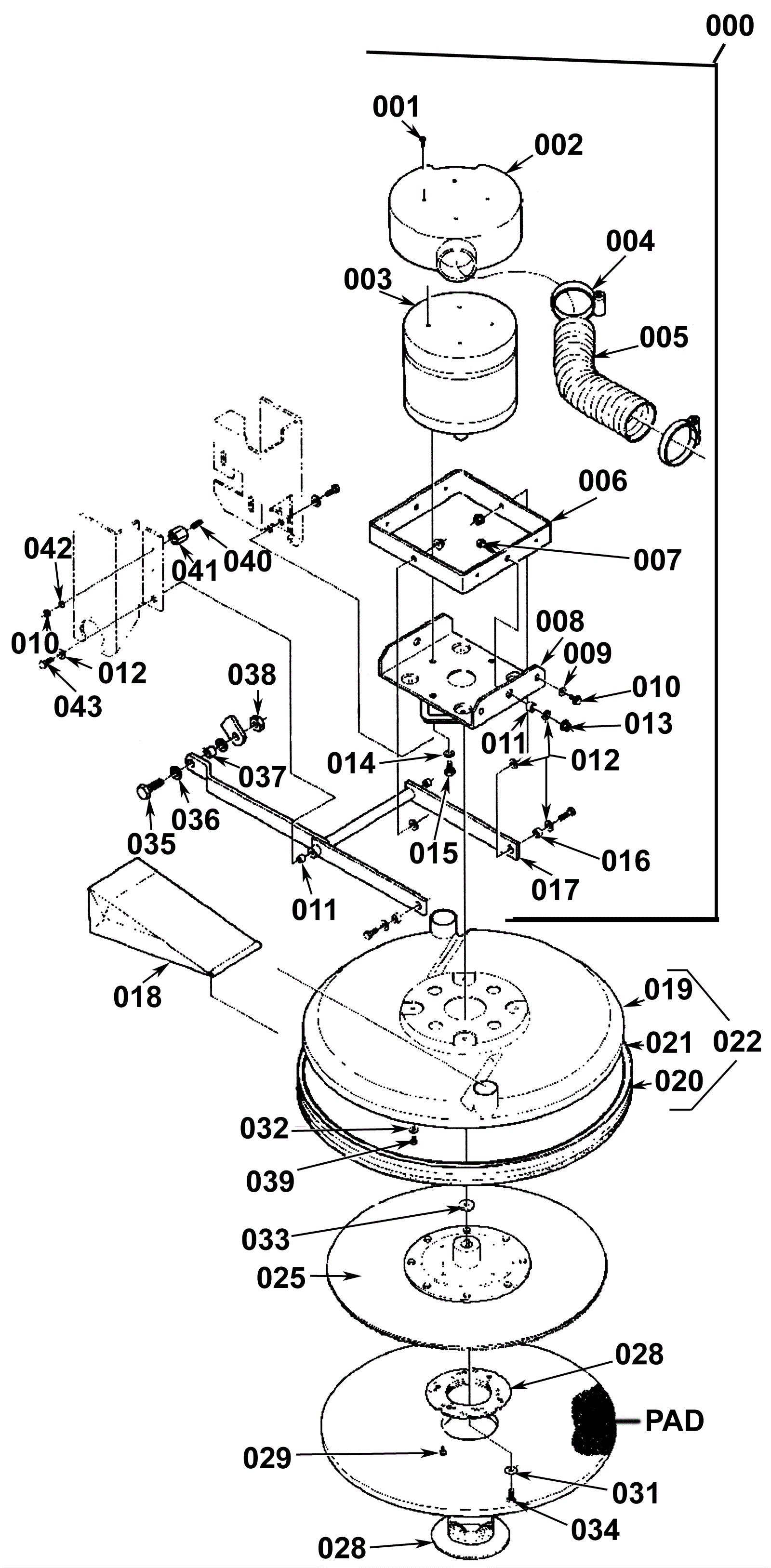

WHIRLAMATIC VS-20 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
000 181-1368 Drive unit assembly (OBSOLETE) $1,749.92 1 (includes items 001 thru 017) usually ships 1-5 days
001 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 4 ships same day
002 181-1358 Motor cover $229.25 1 usually ships 1-5 days
003a 181-1359 Brush motor $1,297.48 1 usually ships 17-28 days
003b 172-2818 Carbon brush (pkg of 4) $268.38 1 usually ships 17-28 days
003c 172-2819 Brush spring (pkg of 4) $131.95 1 usually ships 1-5 days
004 997-2009 Hose clamp $3.30 4 ships same day
005 181-1360 Flex hose $46.92 2 usually ships 17-28 days
006 181-1361 Frame weldment $142.45 1 usually ships 1-5 days
007 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 4 ships same day
008 181-1362 Motor mount $75.35 1 usually ships 1-5 days
009 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
010 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
011 172-9270 Bushing $35.09 4 usually ships 17-28 days
012 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
013 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
014 999-0201 Washer 3/8 internal star lock $0.99 4 ships same day
015 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 4 ships same day
016 172-0068 Bushing $15.48 2 usually ships 17-28 days
017 N/A Not available Call for price 1 (Linkage weldment) usually ships 3-26 days
018b 172-8039 Paper vacuum bags (pkg of 6) Whirlamatic/Selectgloss $49.63 2 OEM usually ships 17-28 days
018b 991-9029 Paper vacuum bags (pkg of 10) $10.21 2 (NON-OEM) ships same day
019 181-1364 Dust shroud (OBSOLETE) $235.68 1 usually ships 17-28 days
020 172-3072 20 inch skirt assembly $74.21 1 ships same day
021 172-3125 Gasket $9.35 1 usually ships 17-28 days
022 172-1272 Dust shroud assembly (OBSOLETE) $284.00 1 (includes items 019 thru 021) usually ships 17-28 days
025 472-8447 PAD DRIVER ASSY-20 RIGID $447.72 1 (includes items 028 and 029) usually ships 17-28 days
028a 991-2202 Big mouth pad holder set (blue) $23.64 1 ships same day
028b 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 (NON-OEM) ships same day
028c 991-2205 Deep lock ring and pad grip ring $38.23 1 (NON-OEM) ships same day
028d 991-2214 Center-Lok II pad holder - left hand thread (red) $21.69 1 (NON-OEM) ships same day
029 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 4 ships same day
031 172-3047 Washer 11/32 x 1/8 flat $12.31 1 usually ships 17-28 days
032 172-0553 Washer 17/64 x 1/16 flat $10.85 4 usually ships 17-28 days
033 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
034 999-1186 Screw 5/16-24 x 3/4 hex head $12.31 1 ships same day
035 999-0837 Bolt 1/2-13 x 1 hex head low carbon plain finish $0.99 1 ships same day
036 172-0550 Washer 33/64 x 3/4 flat $10.85 2 usually ships 17-28 days
037 181-1366 Bushing $22.00 1 usually ships 1-5 days
038 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
039 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 4 ships same day
040 172-0345 Terminal stud $12.31 2 usually ships 17-28 days
041 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
042 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
043 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
