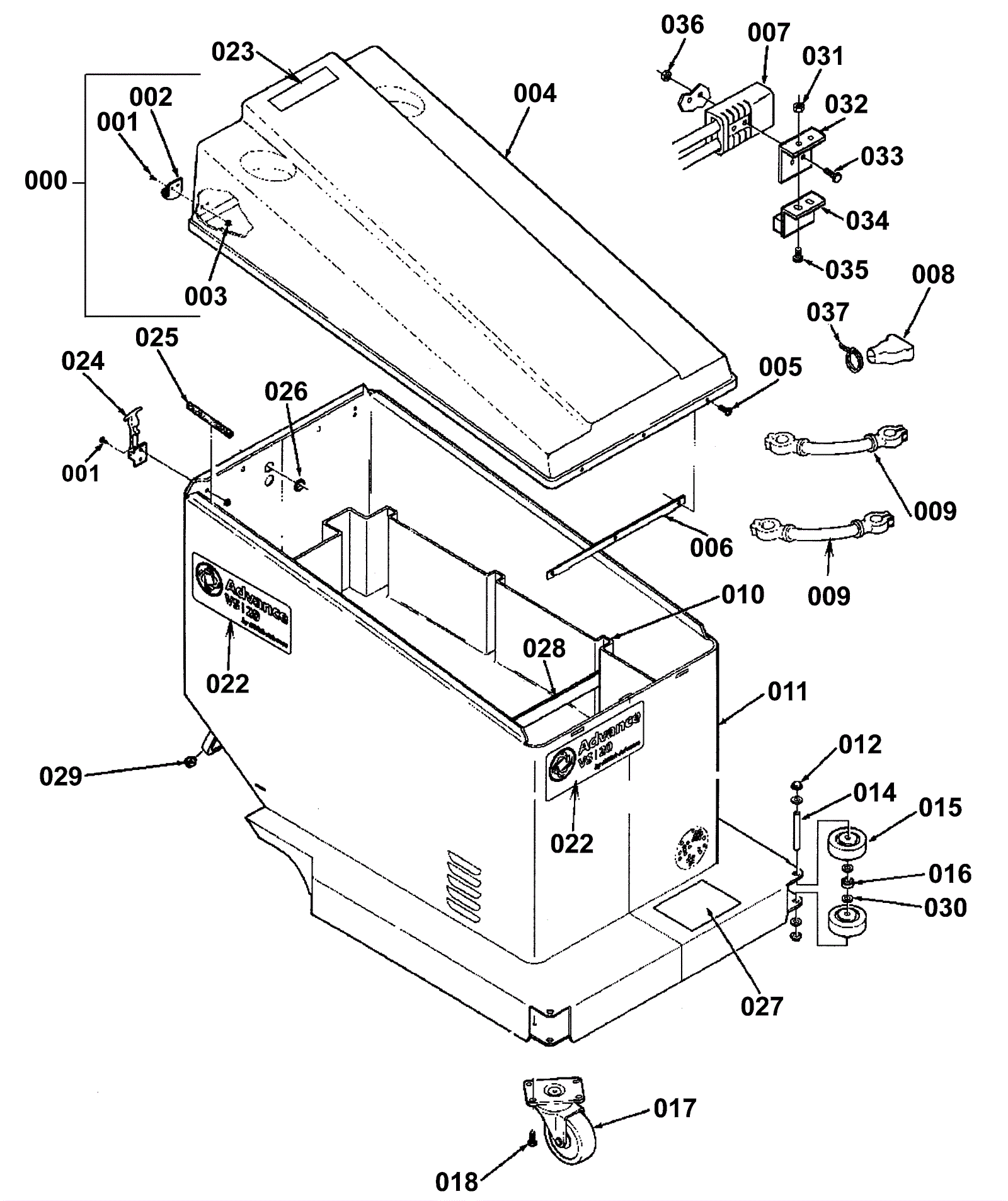

Chassis and Cover Assembly

#PartDescription ReqNotesAvailability
000 172-1720 Cover assembly (OBSOLETE) 1 (includes items 001 thru 006)
001 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 8
002 172-9713 Latch and keeper 2
003 999-0337 Nut 6-32 nylon insert lock stainless steel 8
004 172-1721 Shroud (OBSOLETE) 1
005 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 3
006 181-0857 Bracket 1
007 172-3123 36V connector assembly 1
008 172-0223 Battery cable boot 12
009a 172-0221 Battery cable assembly - clamp type 2
009b 172-3115 Cable assembly (OBSOLETE) 1
009c 998-0010 Battery jumper cable - ring type (red) 2
009d 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 2 (NON-OEM)
010 181-0985 Battery tray 1
011 181-1043 Chassis weldment (OBSOLETE) 1
012 172-4142 Nut 3/8 push cap 4
014 181-1060 Pin 2
015 172-0274 Guide wheel 4
016 172-2569 Bushing 2
017 272-8474 3 1/2 inch swivel caster 2
018 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 10
022 172-3114 VS-20 decal (OBSOLETE) 1
023 172-1723 Important decal 1
025 181-1333 Trim 2
026 172-0343 Grommet 2
027 181-1334 Pad replacement decal 1
028 181-1332 Battery retaining strap 1
029 172-8189 Bumper 2
030 272-1670 Washer 3/8 bowed 8
031 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
032 172-0234 Switch bracket (OBSOLETE) 1
033 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
034 172-0235 Switch assembly (OBSOLETE) 1
035 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 2
036 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
037 997-2101 6 inch cable tie 12
N/S 172-2261 Battery cable 1
