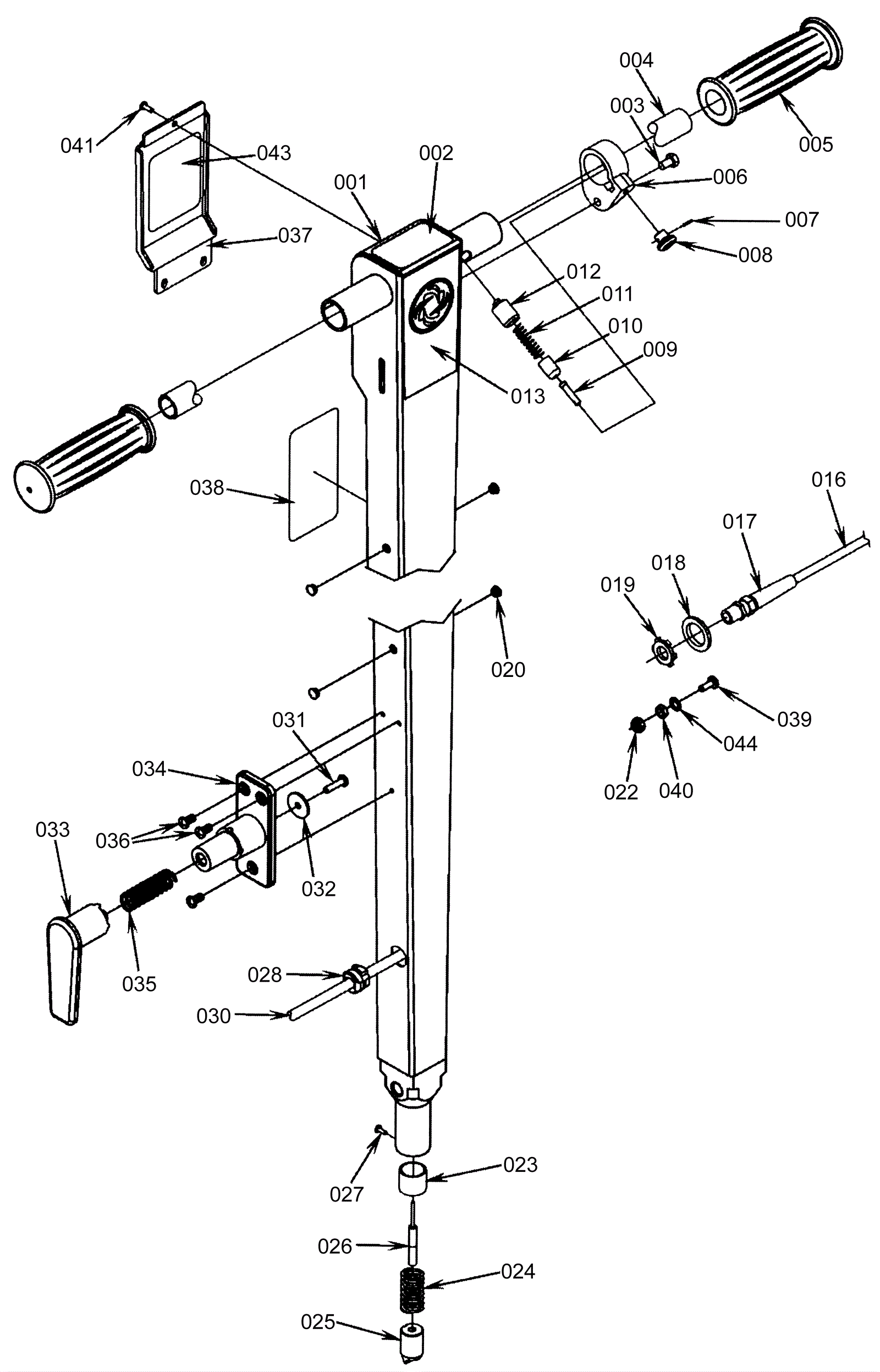

SELECTGLOSS 17E Handle Assembly Front View

#PartDescriptionPriceReqNotesAvailability
000 172-3035 Handle assembly 115V (OBSOLETE) $1,328.23 1 usually ships 1-5 days
001 172-3034 Handle (OBSOLETE) $760.43 1 usually ships 1-5 days
002 172-5023 Warning decal (OBSOLETE) $14.95 1 usually ships 1-5 days
003a 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
003b 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
003c 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
004 172-4629 Handle tube (yellow) (OBSOLETE) $124.63 1 usually ships 1-5 days
005a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
005b 172-1017 Spindle weldment (OBSOLETE) $1,013.06 2 (NON-OEM) usually ships 1-5 days
006a 172-4525 Collar $24.96 1 usually ships 1-5 days
006b 172-4524 Collar assembly $88.92 1 usually ships 1-5 days
007 172-4527 Spring pin $12.31 1 usually ships 1-5 days
008 172-4526 Knob $12.31 1 usually ships 1-5 days
009 172-4630 Pin $35.09 1 usually ships 16-41 days
010 172-4631 Plunger (OBSOLETE) $21.01 1 usually ships 16-41 days
011 172-4632 Spring $10.85 1 usually ships 16-41 days
012 172-4633 Bushing $44.99 1 usually ships 16-41 days
013 172-3040 Logo decal (OBSOLETE) $14.95 1 usually ships 16-41 days
016 172-3032 Cord set 115v (75ft) (OBSOLETE) $290.84 1 usually ships 1-5 days
017a 172-4534 Strain relief $74.21 1 usually ships 16-41 days
017b 172-4635 Brass insert (OBSOLETE) $12.31 1 usually ships 16-41 days
018 172-4535 Washer flat steel $33.00 1 usually ships 1-5 days
019 172-4536 Nut 1/2-14 conduit lock $12.31 1 usually ships 16-41 days
020 172-4518 Button plug $10.23 4 usually ships 1-5 days
022 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
023 172-4636 Bushing $14.47 1 usually ships 1-5 days
024 172-4637 Spring $37.62 1 usually ships 16-41 days
025 172-4522 Plunger $108.11 1 usually ships 16-41 days
026 172-4504 Wire rope assembly $63.07 1 usually ships 16-41 days
027 172-4623 Screw 4-40 x 1/4 drive round head $10.52 1 usually ships 1-5 days
028 172-4595 Strain relief $18.39 1 usually ships 16-41 days
030 172-3037 Cord assembly 115V (OBSOLETE) $51.29 1 usually ships 16-41 days
031 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 1 ships same day
032 999-0588 Washer 7/8 flat stainless steel $11.44 1 ships same day
033 172-4638 Cord hook assembly $58.62 1 usually ships 16-41 days
034 172-4638 Cord hook assembly $58.62 1 usually ships 16-41 days
035 172-4641 Spring $8.80 1 usually ships 1-5 days
036 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
037 172-4511 Cover $30.40 1 usually ships 16-41 days
038 172-5020 Warning decal (OBSOLETE) $14.95 1 usually ships 16-41 days
039 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 1 ships same day
040 172-5241 Seat valve (OBSOLETE) $57.20 1 usually ships 1-5 days
041 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 3 ships same day
043 172-4642 Important decal (OBSOLETE) $14.95 1 usually ships 1-5 days
044 999-0092 Washer #8 internal star lock zinc plated $0.99 1 ships same day
