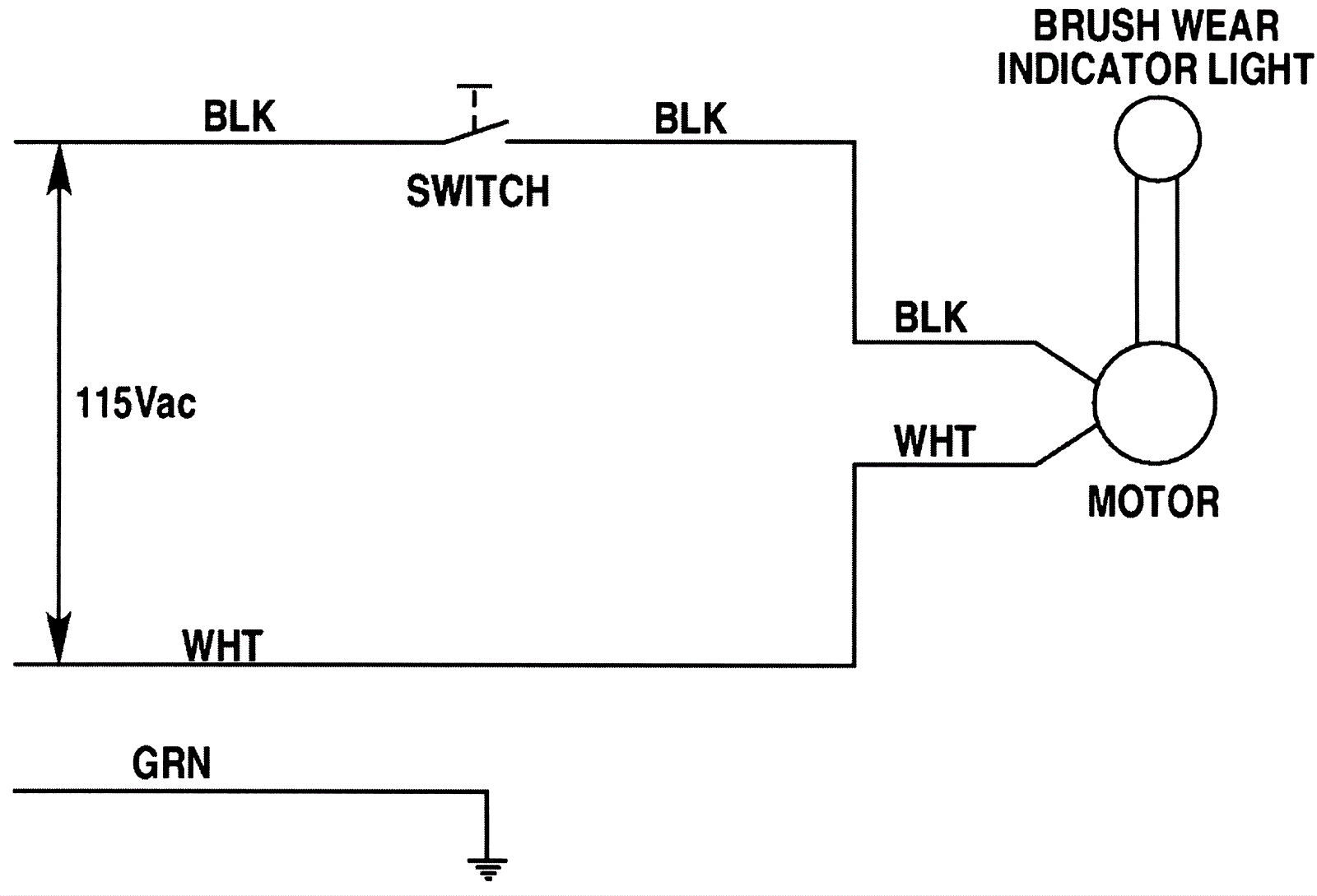

SELECTGLOSS 17E Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
01 172-3004 Motor 115V (OBSOLETE) $670.45 1 usually ships 16-41 days
02 172-3106 Armature with bearings (OBSOLETE) $455.03 1 usually ships 1-5 days
03 172-7660 Foot pedal pivot weldment $104.83 1 usually ships 16-41 days
04 172-3107 Carbon brush springs (4) $111.47 1 usually ships 1-5 days
05 172-0435 Top bearing $42.98 1 usually ships 16-41 days
06 172-0249 Bottom bearing $29.52 1 usually ships 16-41 days
07 172-8247 Brush board assembly $269.50 1 usually ships 1-5 days
08 172-3075 Brush wear indicator light 115v (OBSOLETE) $15.70 1 usually ships 16-41 days
09 172-4628 Snap switch (OBSOLETE) (SEE NOTE) $42.39 1 usually ships 16-41 days
10 172-4139 35amp rectifier $13.76 ships same day
