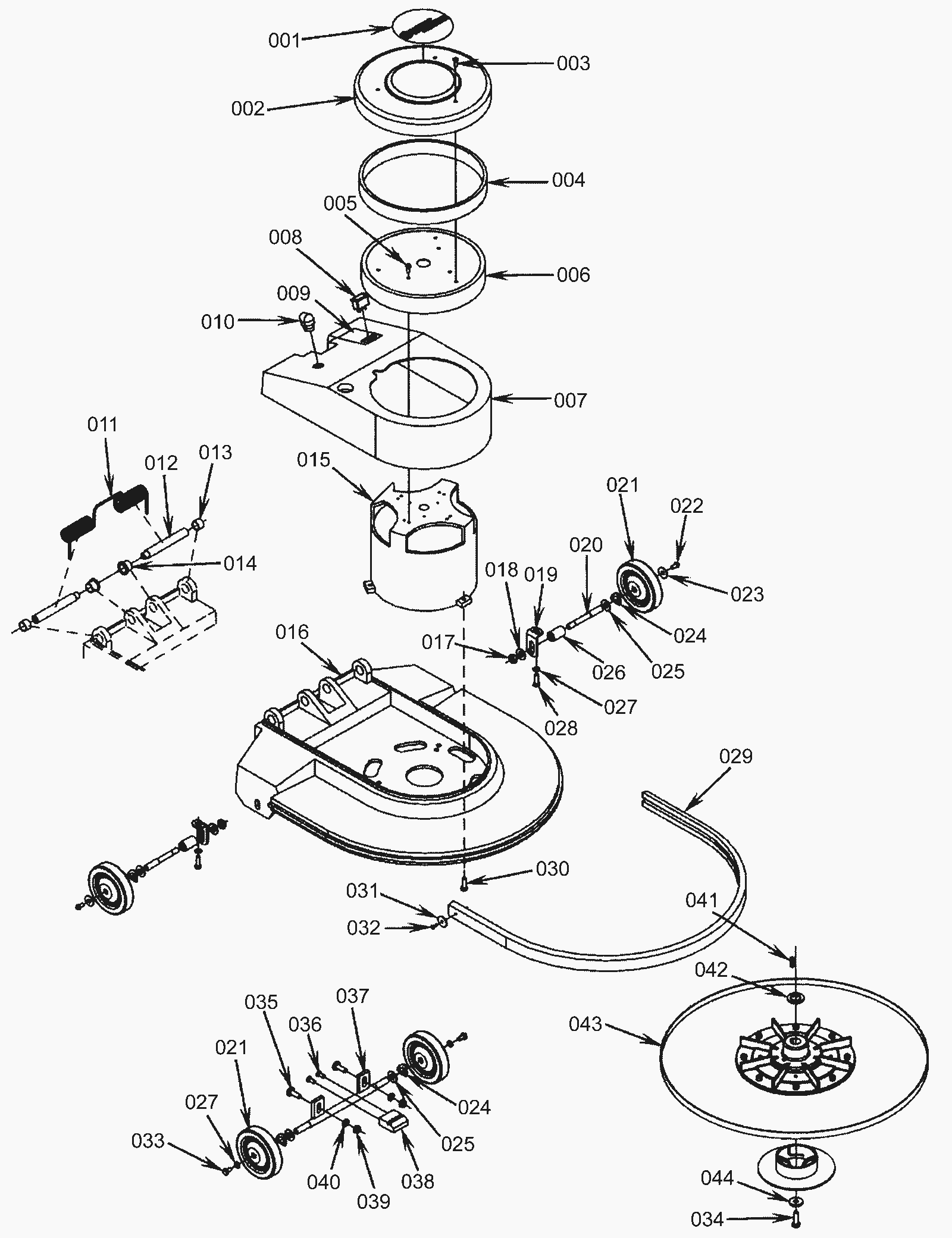

Base Assembly

#PartDescription ReqNotesAvailability
001a N/A Not available 1 (Whirlamatic decal)
001b 172-1426 UHS decal (OBSOLETE) 1
002 172-1427 Shroud cover 1
003 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 3
004 172-8069 Filter (OBSOLETE) 1
005 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4
006 172-1428 Screen weldment (OBSOLETE) 1
007a 172-1429 Motor shroud 17 inch (OBSOLETE) 1
007b 172-1430 Motor shroud 20 inch 1
008 172-3075 Brush wear indicator light 115v (OBSOLETE) 1
009 N/A Not available 1 (Brush wear light decal)
010 172-6146 Strain relief 1
011a 172-3027 Torsion spring 115V (OBSOLETE) 1
011b 172-8265 Torsion spring (OBSOLETE) 1
012 172-0620 Pivot pin 2
013 172-0023 Sleeve bearing 2
014 172-4661 Flange bearing (OBSOLETE) 2
015a N/A Not available 1 (115V motor)
015b 172-3106 Armature with bearings (OBSOLETE) 1
015c 174-4057 Carbon brush 4
015d 172-3107 Carbon brush springs (4) 1
015e 172-0435 Top bearing 1
015f 172-0249 Bottom bearing 1
015g 172-8247 Brush board assembly 1
016a 172-3011 Skirt Housing (OBSOLETE) 1 17 inch
016b 172-1432 Skirt housing 20 inch (OBSOLETE) 1 20 inch
017 999-0169 Nut 3/8-24 hex jam plain finish 2
018 999-0120 Washer 3/8 SAE flat 2
019 172-1433 Bracket 2
020 272-5262 Axle 2
021 172-8259 Wheel 4
022 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 2
023 999-0016 Washer 1/4 flat plain finish 1
024 172-7048 Spring washer 4
025 999-0120 Washer 3/8 SAE flat 4
026 172-1435 Serrated spacer 2
027 999-0123 Washer 1/4 SAE flat zinc plated 4
028 999-0629 Screw 1/4-20 x 3/4 pan head thread cutting slotted zinc 2
029a 172-3018 Bumper 17 inch (OBSOLETE) 1
029b 172-3019 Bumper (OBSOLETE) 1
030 272-1596 Bolt 1/4-20 x 3/4 hex head lock 3
031 999-0588 Washer 7/8 flat stainless steel 2
032 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 2
033 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
034 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 1
035 272-1546 Screw 5/16-18 X 1 2
036 172-2762 Screw 1/4-20 x 3/4 flat head phillips thread forming 2
037 172-8267 Axle weldment 1
038 172-3012 Handle catch (OBSOLETE) 1
039 999-0430 Nut 5/16-18 hex jam plain finish 2
040 999-0412 Washer #8 SAE flat 2
041 172-3045 Key 1 .19 x .78 square
042 999-1134 Washer 1 1/4 flat stainless steel 1
043b 472-8376 PAD DRIVER ASSY-20 RIGID 1 (20 inch)
044 172-3047 Washer 11/32 x 1/8 flat 1
N/S 996-0372 Big mouth pad holder (left hand thread) 1
