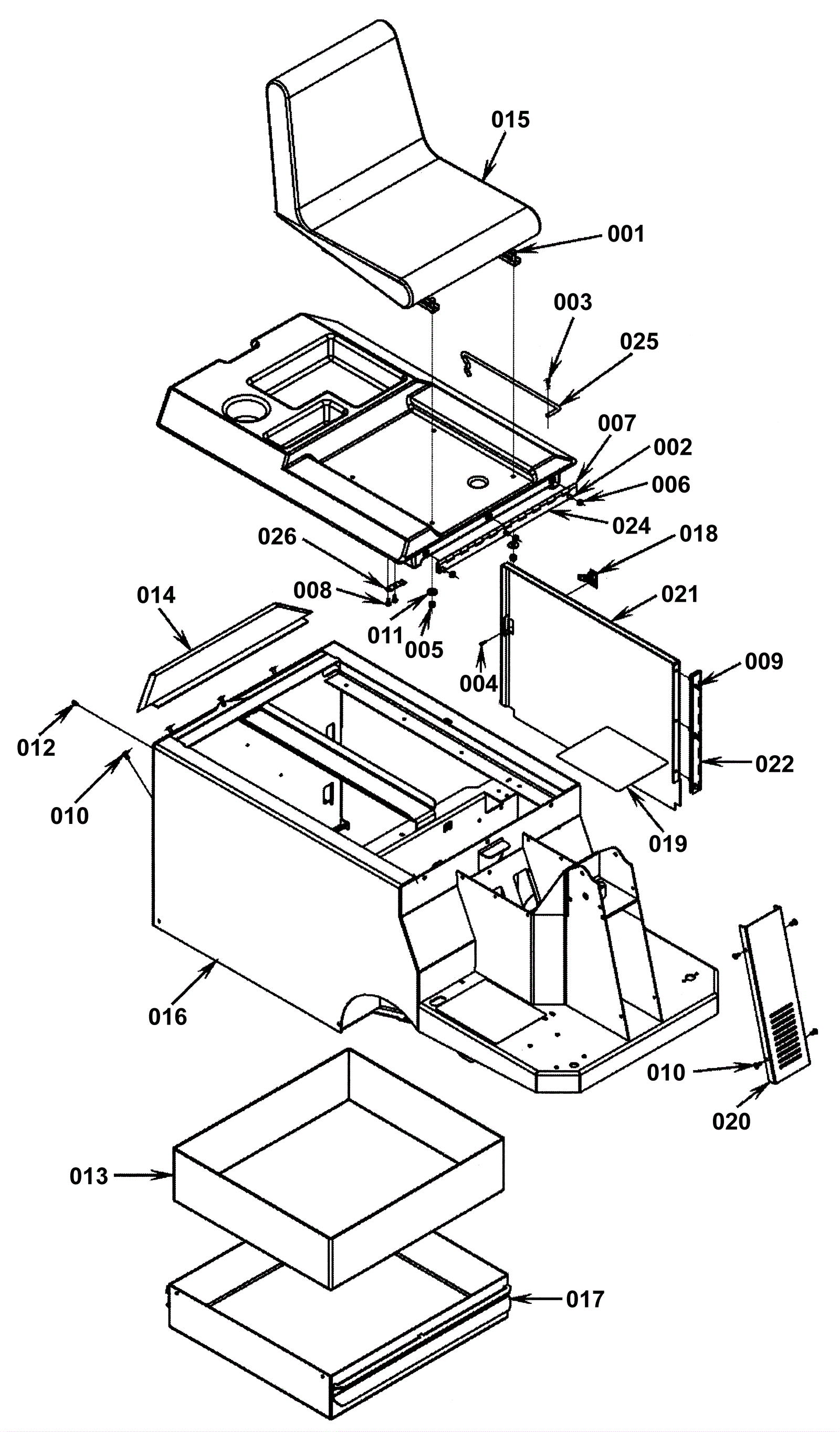

Chassis System

#PartDescription ReqNotesAvailability
001 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 4
002 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 3
003 181-0148 Cotter pin 1
004 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 1
005 999-0430 Nut 5/16-18 hex jam plain finish 4
006 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 3
007 272-1810 Screw 5/16-18 x 1/2 hex lock 3
008 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
009 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 6
010 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 10
011 172-2067 Washer 11/32 x 1/8 flat 4
012 172-0363 Grease fitting 1
013 272-1206 Battery tray (OBSOLETE) 1
014 272-1812 Rear panel (OBSOLETE) 1
015 272-1813 Seat kit 1
016 272-1814 Chassis weldment (OBSOLETE) 1
017 272-1815 Battery box weldment (OBSOLETE) 1
018 272-1816 Latch 1
019 172-8110 Grip Surface 2
020 272-1817 Lower column cover (OBSOLETE) 1
021 272-1818 Door (OBSOLETE) 1
022 272-1819 Hinge (OBSOLETE) 1
023 272-1820 Seat panel (OBSOLETE) 1
024 272-1633 Hinge (OBSOLETE) 1
025 272-1821 Prop rod (OBSOLETE) 1
026 272-1822 Clamp (OBSOLETE) 1
KIT 272-1828 Pallet jack kit (OBSOLETE) 1
KIT 272-1826 Strobe light kit (OBSOLETE) 1
KIT 272-1824 Back up alarm kit (OBSOLETE) 1
KIT 272-1825 Headlight kit (OBSOLETE) 1
KIT 172-8309 Armrest kit, optional (OBSOLETE) 1
KIT 272-1823 Battery exchange kit (OBSOLETE) 1
KIT 272-1827 Battery stand weldment (OBSOLETE) 1
