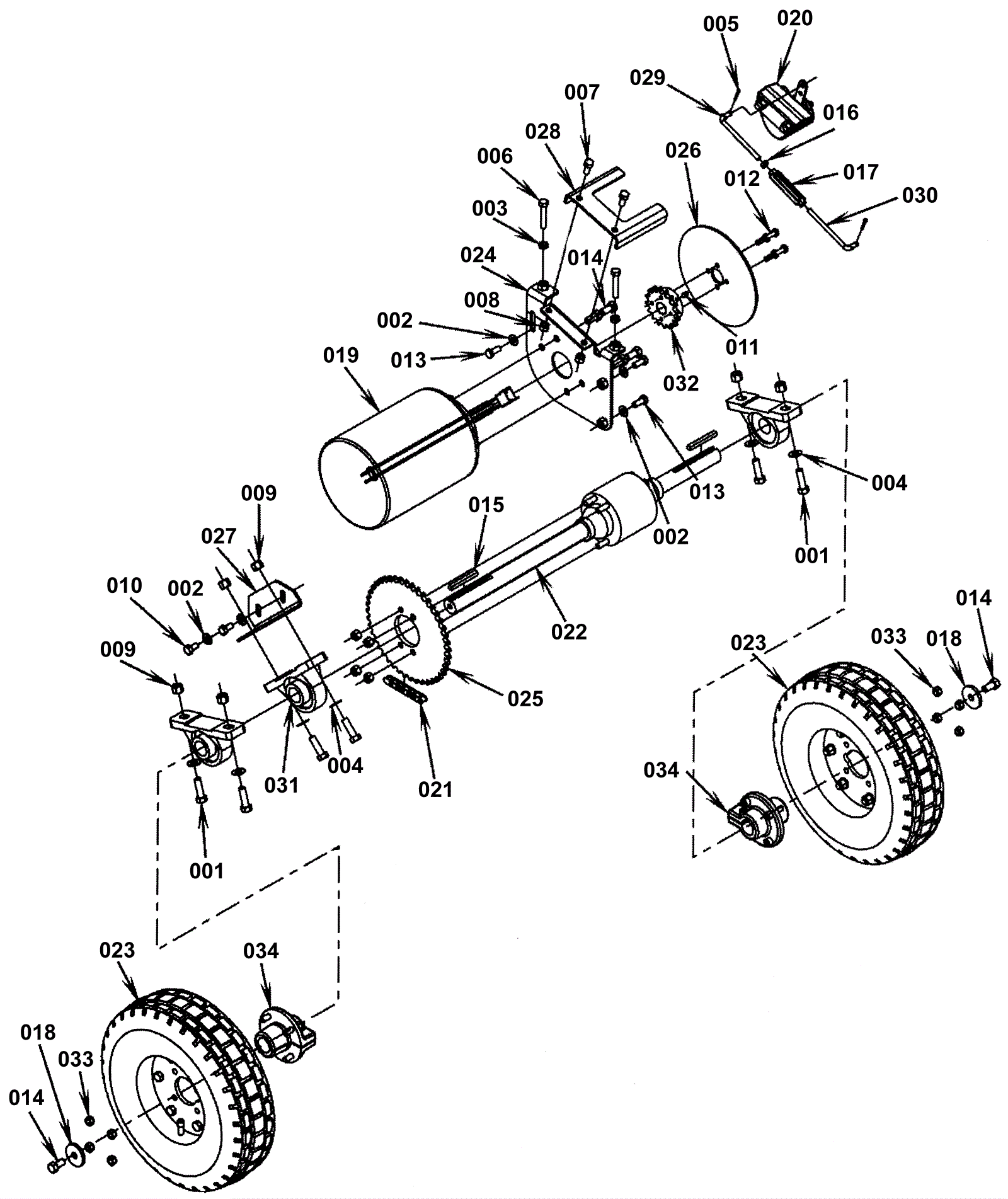

Traction Drive System

#PartDescription ReqNotesAvailability
001 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 6
002 999-0412 Washer #8 SAE flat 5
003 999-0203 Screw 10-24 x 3/4 cup point socket set alloy plain finish 2
004 999-0120 Washer 3/8 SAE flat 6
005 181-0148 Cotter pin 2
006 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
007 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
008 999-0430 Nut 5/16-18 hex jam plain finish 6
009 999-0188 Nut 3/8-16 nylon insert lock zinc plated 6
010 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
011 272-1454 Screw 1/4-20 X 3/8 socket set lock 2
012 272-1596 Bolt 1/4-20 x 3/4 hex head lock 4
013 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 3
014 272-5257 Bolt 3/8-16 x 3/4 hex head lock 6
015 172-2588 Key 2
016 999-0181 Nut 1/4-20 hex jam plain finish 1
017 172-2296 Turn buckle 1
018 272-1606 Washer flat 2
019a 272-1883 Motor 1
019b 272-1891 Carbon brush set of 4 (OBSOLETE) 1
020 272-7001 Caliper brake (OBSOLETE) 1
021 991-0101 Chain (sold by the link) 1
022 272-1892 Differential update kit (OBSOLETE) 1
023 272-1893 Wheel 2
024 272-1894 Mount plate (OBSOLETE) 1
025 272-1895 Sprocket 1
026 272-1896 Disc (OBSOLETE) 1
027 272-1897 Mount (OBSOLETE) 1
028 272-7002 Caliper mount (OBSOLETE) 1
029 272-1898 Brake link (OBSOLETE) 1
030 272-1899 Brake link (OBSOLETE) 1
031 172-2597 Pillow block bearing assembly w/grease fitting (OBSOLETE) 3
032 272-1887 Sprocket 1
033 272-1886 Nut 5/16-24 lug 8
034 272-1900 Hub assembly 2
