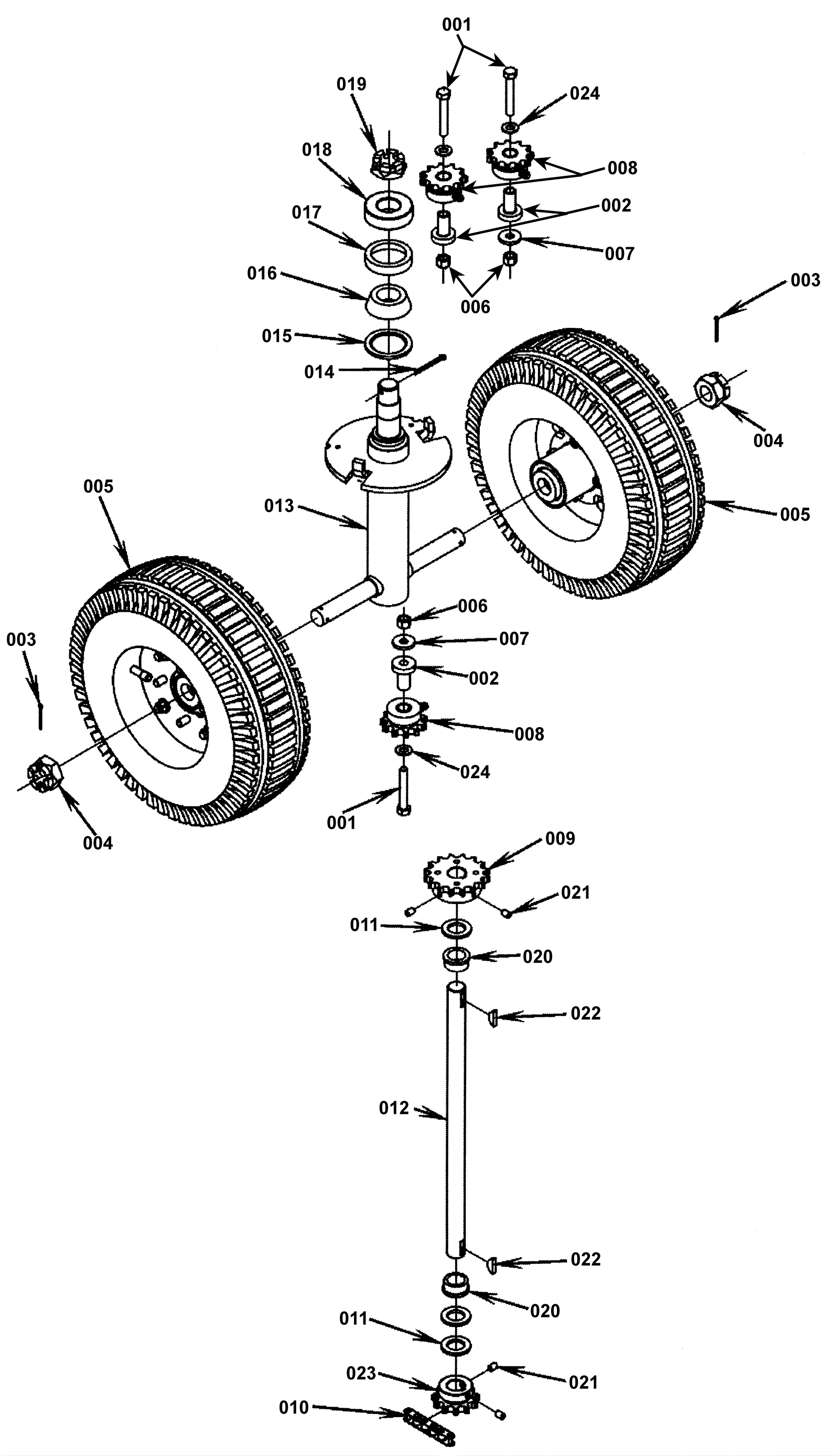

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
3 |
|
|
002 |
172-9410
|
Flanged bushing |
3 |
|
|
003 |
272-1882
|
Cotter pin |
2 |
|
|
004 |
999-0302
|
Nut 3/4-16 hex plain finish |
2 |
|
|
005a |
272-1884
|
Wheel assembly (OBSOLETE) |
2 |
|
|
005b |
272-1885
|
Cone bearing kit (OBSOLETE) |
4 |
|
|
005c |
272-1886
|
Nut 5/16-24 lug |
8 |
|
|
006 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
3 |
|
|
007 |
172-2067
|
Washer 11/32 x 1/8 flat |
2 |
|
|
008 |
172-9401
|
Sprocket assembly |
3 |
|
|
009 |
272-1887
|
Sprocket |
1 |
|
|
010 |
272-1888
|
Chain roller (OBSOLETE) |
1 |
|
|
011 |
999-1134
|
Washer 1 1/4 flat stainless steel |
3 |
|
|
012 |
272-1889
|
Steering jackshaft (OBSOLETE) |
1 |
|
|
013 |
272-1890
|
Weldment spindle (OBSOLETE) |
1 |
|
|
014 |
172-9386
|
Cotter pin |
1 |
|
|
015 |
172-4572
|
Seal shaft |
1 |
|
|
016 |
172-4570
|
Bearing |
1 |
|
|
017 |
172-4571
|
Bearing cup |
1 |
|
|
018 |
172-0435
|
Top bearing |
1 |
|
|
019 |
272-1603
|
Nut 7/8-14 castle |
1 |
|
|
020 |
172-9388
|
Flanged bearing |
2 |
|
|
021 |
272-1454
|
Screw 1/4-20 X 3/8 socket set lock |
4 |
|
|
022 |
172-9387
|
Woodruff key |
2 |
|
|
023 |
172-8093
|
Sprocket |
1 |
|
|
024 |
999-0412
|
Washer #8 SAE flat |
3 |
|
|
