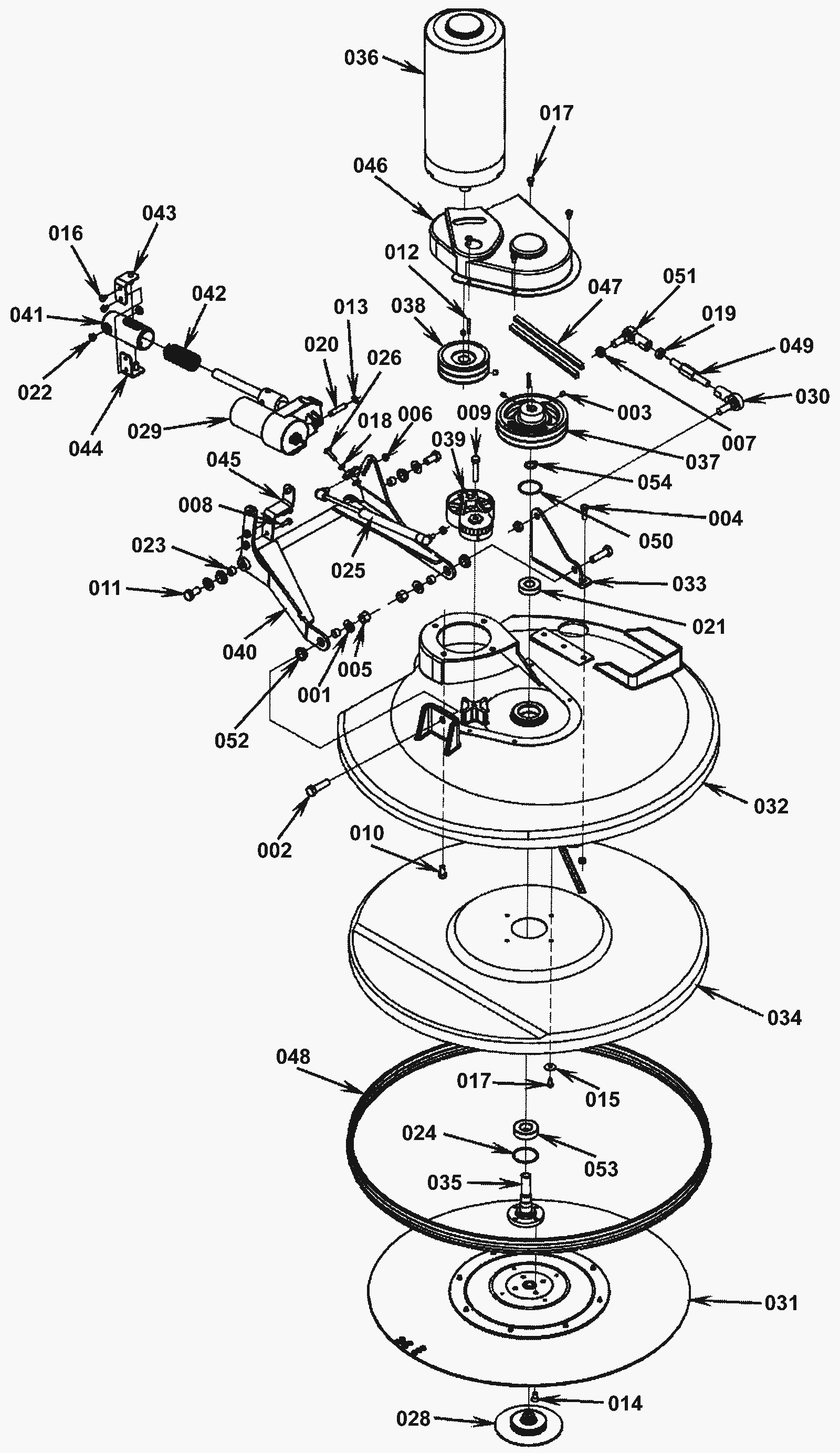

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0187
|
Washer 1/2 flat plain finish |
4 |
|
|
002 |
999-0372
|
Bolt 1/2-13 x 1 3/4 hex head |
2 |
|
|
003 |
999-0157
|
Screw 5/16-18 x 3/8 cup point socket set alloy plain finish |
4 |
|
|
004 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
3 |
|
|
005 |
999-0118
|
Nut 1/2-13 nylon insert lock zinc plated |
2 |
|
|
006 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
5 |
|
|
007 |
999-0842
|
Nut 1/2-20 nylon insert lock zinc plated |
2 |
|
|
008 |
272-1596
|
Bolt 1/4-20 x 3/4 hex head lock |
2 |
|
|
009 |
999-0708
|
Screw 3/8-16 x 2 carriage head grade 5 zinc |
1 |
|
|
010 |
272-5257
|
Bolt 3/8-16 x 3/4 hex head lock |
4 |
|
|
011 |
272-1659
|
Bolt 1/2-13 X 1 lock |
2 |
|
|
012 |
172-4579
|
Square keyway |
2 |
|
|
013 |
172-4033
|
3/8 inch retaining ring |
2 |
|
|
014 |
999-1258
|
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
|
015 |
172-0553
|
Washer 17/64 x 1/16 flat |
4 |
|
|
017 |
999-0273
|
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
8 |
|
|
018 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
2 |
|
|
019 |
999-0842
|
Nut 1/2-20 nylon insert lock zinc plated |
1 |
|
|
020 |
172-8918
|
Pin |
1 |
|
|
021 |
172-4597
|
Ball bearing |
1 |
|
|
022 |
172-8815
|
Flanged bearing |
2 |
|
|
023 |
172-0072
|
Bushing |
4 |
|
|
024 |
172-0436
|
Retaining ring |
1 |
|
|
025 |
172-0320
|
Hood cylinder |
1 |
|
|
026 |
172-2666
|
Bumper |
1 |
|
|
028a |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
1 |
|
|
028b |
991-2202
|
Big mouth pad holder set (blue) |
1 |
(NON-OEM) |
|
028c |
991-8577
|
Pad retainer |
1 |
(NON-OEM) |
|
029a |
172-8921
|
Actuator |
1 |
|
|
029b |
172-8922
|
Plastic drive nut |
1 |
|
|
029c |
N/A
|
Not available |
1 |
Carbon brush kit |
|
030 |
172-9336
|
Ball joint |
1 |
|
|
031 |
472-9352
|
PAD DRIVER ASSEMBLY |
1 |
|
|
032 |
272-1860
|
Machined outer shroud (OBSOLETE) |
1 |
|
|
033 |
272-1861
|
Shroud mounting bracket (OBSOLETE) |
1 |
|
|
034 |
272-1862
|
Dust collection shroud |
1 |
|
|
035 |
272-1863
|
Pad shaft |
1 |
|
|
036 |
272-1864
|
Motor (OBSOLETE) |
1 |
|
|
037 |
272-1865
|
Sheave |
1 |
|
|
038 |
272-1866
|
Sheave (OBSOLETE) |
1 |
|
|
039 |
272-1867
|
Idler belt |
1 |
|
|
040 |
272-1868
|
Main lift weldment (OBSOLETE) |
1 |
|
|
041 |
272-1869
|
Spring housing |
1 |
|
|
042 |
N/A
|
Not available |
1 |
Compression spring |
|
043 |
N/A
|
Not available |
1 |
Nut retainer |
|
044 |
N/A
|
Not available |
1 |
Nut retainer |
|
045 |
172-9187
|
Mount weldment |
1 |
|
|
046 |
272-1870
|
Drive belt cover (OBSOLETE) |
1 |
|
|
047 |
272-1871
|
V-belt set of 2 |
1 |
|
|
048 |
172-8106
|
Skirt assembly |
1 |
|
|
049 |
272-1844
|
Linkage adjuster stud (OBSOLETE) |
1 |
|
|
050 |
172-2050
|
Retaining ring |
1 |
|
|
051 |
172-0272
|
Ball joint |
1 |
|
|
052 |
272-1843
|
Flanged bearing |
4 |
|
|
053 |
172-9411
|
Ball bearing |
1 |
|
|
054 |
172-0569
|
Retaining ring |
1 |
|
|
