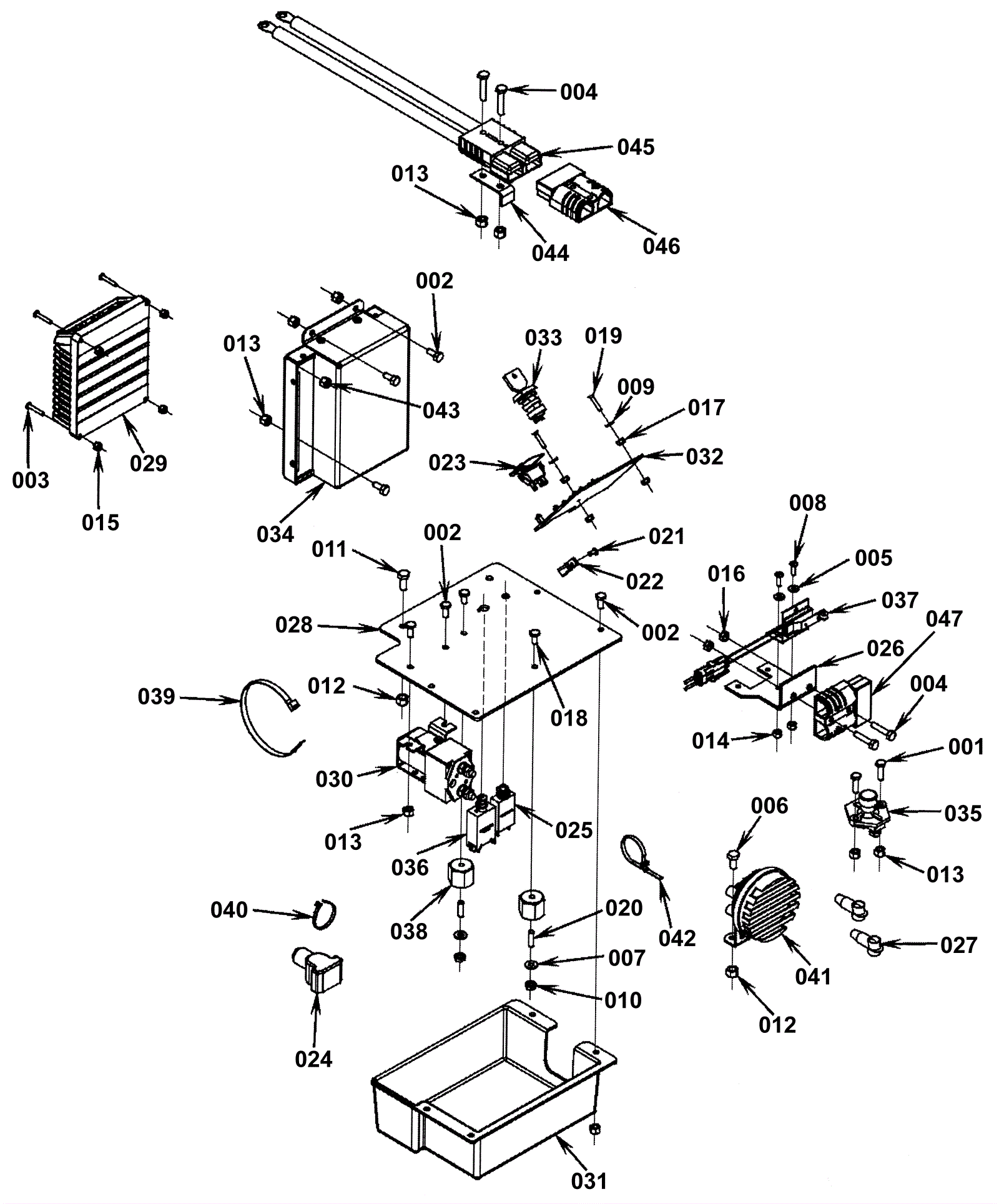

Electrical System

#PartDescription ReqNotesAvailability
001 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 2
002 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 9
003 999-0827 Screw 8-32 x 1 pan head phillips zinc plated 4
004 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
005 999-0006 Washer 3/16 flat zinc plated 2
006 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
007 999-0123 Washer 1/4 SAE flat zinc plated 2
008 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 2
009 999-0412 Washer #8 SAE flat 2
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
011 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
012 999-0430 Nut 5/16-18 hex jam plain finish 3
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated 13
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
015 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
017 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
018 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
019 999-0254 Screw 8-32 x 5/8 flat head slotted zinc 2
020 172-0345 Terminal stud 2
021 172-0443 Nylon rivet (OBSOLETE) 1
022 272-1845 Cable clamp 1
023 272-1846 Rocker switch 1
024 172-0223 Battery cable boot 12
025 172-0228 5amp circuit breaker (OBSOLETE) 1
026 172-9839 Switch bracket (OBSOLETE) 1
027 172-9147 Terminal insulator 2
028 272-1847 Panel (OBSOLETE) 1
029 272-1848 Controller 1
030 272-1849 Contactor 1
031 272-1850 Electrical cover (OBSOLETE) 1
032 272-1851 Circuit board (OBSOLETE) 1
033a 172-8847 Key switch (OBSOLETE) 1
033b 172-8099 Replacement key (OBSOLETE) 1
034a 172-8105 Replacement controller kit 1
034b 172-1852 Replacement key (OBSOLETE) 1
035 172-9262 Horn switch 1
036 172-9823 40 Amp circuit breaker 1
037 172-0235 Switch assembly (OBSOLETE) 1
038 172-0103 Electrical mount 2
039 997-2102 Cable tie 4
040 997-2101 6 inch cable tie 12
041 172-9432 36V horn 1
042 172-2298 Push mount tie 7
043 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
044 272-1853 Angle (OBSOLETE) 1
045 172-9260 Connector Assembly 1
046 272-1854 Connector assembly (OBSOLETE) 1
047 272-1855 Connector assembly (OBSOLETE) 1
KIT 272-1826 Strobe light kit (OBSOLETE) 1
KIT 272-1825 Headlight kit (OBSOLETE) 1
KIT 272-1823 Battery exchange kit (OBSOLETE) 1
KIT 272-1824 Back up alarm kit (OBSOLETE) 1
N/S 172-8829 Battery terminal clamp 12
N/S 272-1857 Display harness (OBSOLETE) 1
N/S 272-1856 Seat switch harness (OBSOLETE) 1
N/S 272-1858 Wiring harness (OBSOLETE) 1
N/S 172-8800 Seat switch 1
N/S 172-8828 Battery cable 5
