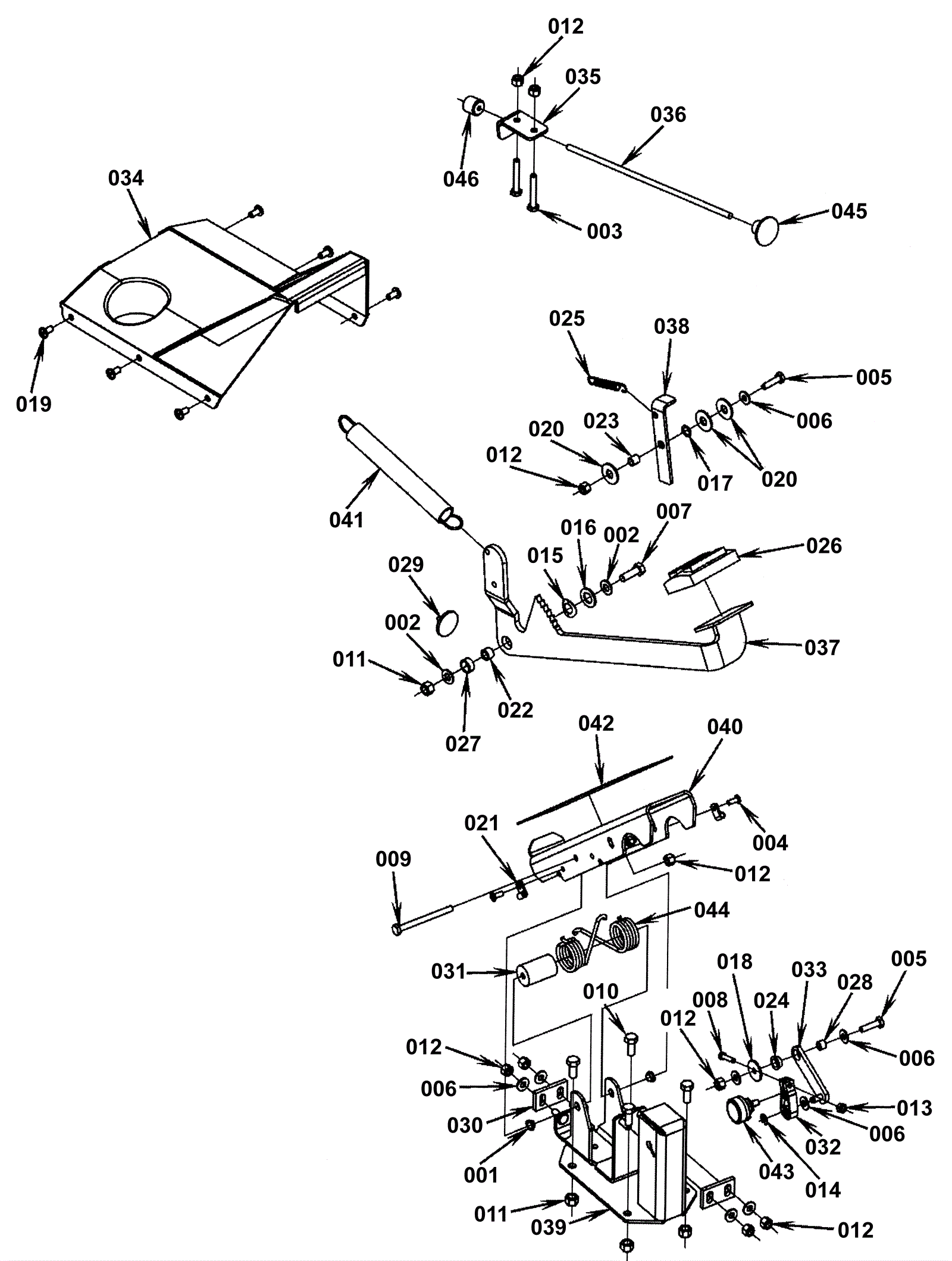

Control System

#PartDescription ReqNotesAvailability
001 172-4120 Flanged bearing 2
002 999-0412 Washer #8 SAE flat 2
003 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated 2
004 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
005 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
006 999-0123 Washer 1/4 SAE flat zinc plated 8
007 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
008 272-1453 Bolt 10-24 x 7/8 hex head 1
010 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 11
013 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
014 172-0392 Retaining ring 1
015 172-4550 Washer 33/64 x 1/64 bowed 1
016 172-0550 Washer 33/64 x 3/4 flat 1
017 172-0398 Washer 3/8 x 9/16 x .020 wave 1
018 172-0548 Washer 17/64 x 47/64 flat stainless steel 1
019 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 6
020 272-1835 Washer flat 3
021 172-8814 P clamp 2
022 272-1834 Bushing (OBSOLETE) 1
023 172-0400 Bushing 1
024 172-8815 Flanged bearing 1
025 172-8059 Control handle return spring 1
026 272-1983 Rubber pedal pad 1
027 172-0139 Bushing 1
028 172-0162 Bushing 1
029 172-8189 Bumper 1
030 172-8816 Side plate 2
031 172-8817 Nylon spacer 1
032 172-8818 Throttle lever 1
033 172-8819 Weldment link 1
034 272-1833 Control panel (OBSOLETE) 1
035 272-1832 Angle (OBSOLETE) 1
037 272-1830 Brake pedal weldment kit (OBSOLETE) 1
038 272-1829 Parking break lever (OBSOLETE) 1
039 272-1811 Pedal mount weldment (OBSOLETE) 1
040 172-9212 Throttle pedal weldment 1
041 272-1809 Spring (OBSOLETE) 1
042 172-8823 Pedal mat 1
043 172-2039 5K potentiometer 1
046 172-8850 Block 1
