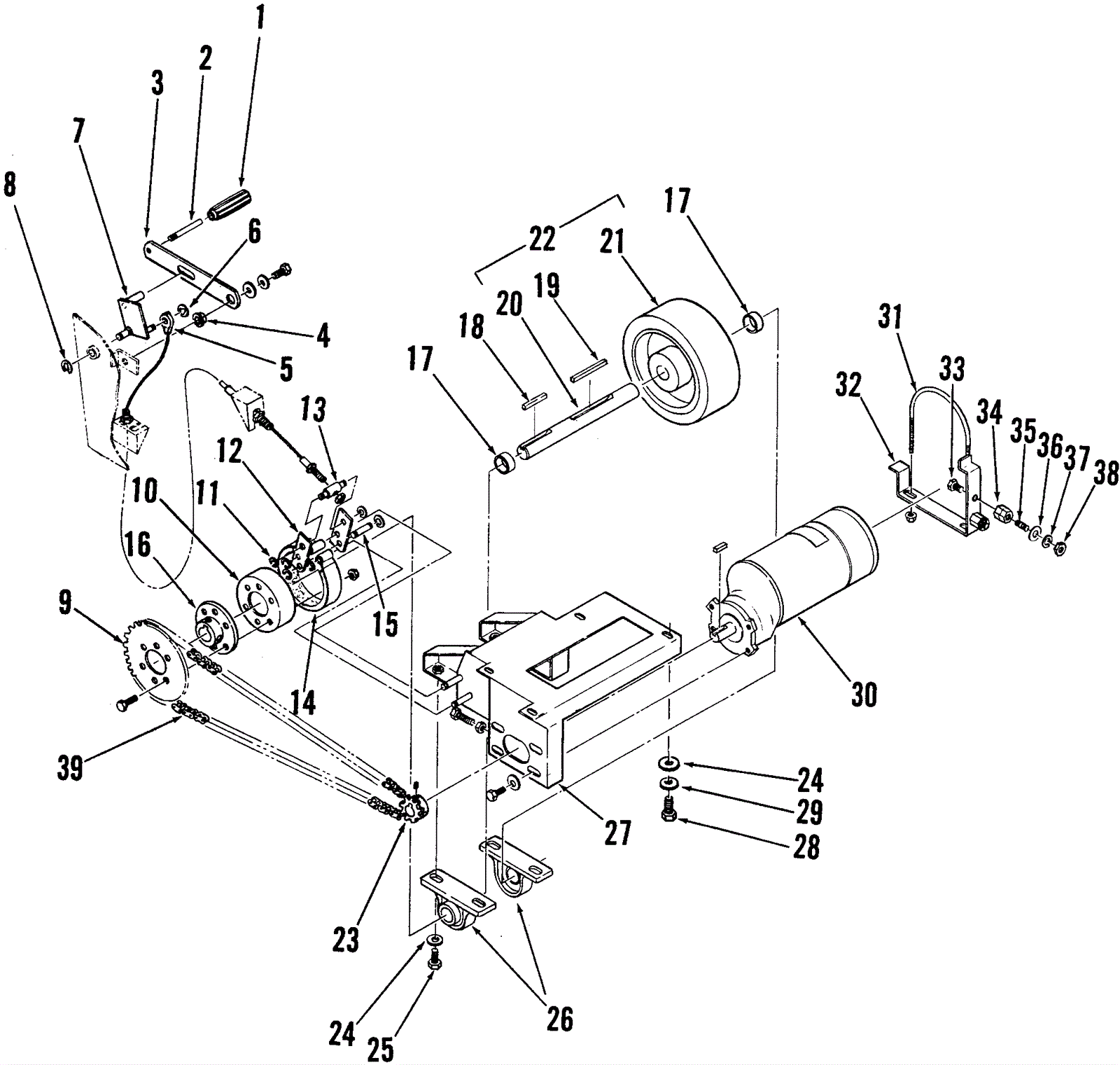

AQUAMATIC 26BF Wheel Drive and Brake Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-8128 Grip $13.40 1 usually ships 1-5 days
002 272-2477 Pin (OBSOLETE) $42.77 1 usually ships 1-5 days
003 N/A Not available Call for price 1 (Lever) usually ships 3-26 days
004 172-9497 Flanged bearing $13.40 1 usually ships 16-41 days
005 272-2503 Cable assembly $70.69 1 usually ships 16-41 days
006 172-0392 Retaining ring $10.56 1 usually ships 16-41 days
007 N/A Not available Call for price 1 Lever weldment usually ships 3-26 days
008 172-4033 3/8 inch retaining ring $10.56 1 usually ships 16-41 days
009 N/A Not available Call for price 1 (Sprocket) usually ships 3-26 days
010 272-2504 Brake drum (OBSOLETE) $123.55 1 usually ships 1-5 days
011 172-4033 3/8 inch retaining ring $10.56 6 usually ships 16-41 days
012 N/A Not available Call for price 2 (Brake arm) usually ships 3-26 days
013 N/A Not available Call for price 1 (Brake pin) usually ships 3-26 days
014 172-2596 Brake strap (OBSOLETE) $61.78 1 usually ships 1-5 days
015 172-8181 Pin (OBSOLETE) $20.65 1 usually ships 1-5 days
016 172-9897 Adapter (OBSOLETE) $288.60 1 usually ships 1-5 days
017 N/A Not available Call for price 2 (Bushing) usually ships 3-26 days
018 172-0437 Square keyway $10.56 1 usually ships 16-41 days
019 172-0555 Square key 1/4 x 3 1/4 (OBSOLETE) $10.52 1 usually ships 16-41 days
020 N/A Not available Call for price 1 (Shaft) usually ships 3-26 days
021 N/A Not available Call for price 1 (Wheel) usually ships 3-26 days
022 N/A Not available Call for price 1 (Wheel and axle assembly) usually ships 3-26 days
023 172-8093 Sprocket $93.14 1 usually ships 16-41 days
024 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
025 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
026 172-2597 Pillow block bearing assembly w/grease fitting (OBSOLETE) $184.12 2 usually ships 16-41 days
027 172-1481 14 inch back bumper gasket $2.90 1 usually ships 6-15 days
028 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
029 N/A Not available Call for price 4 Washer 3/8 spring lock usually ships 3-26 days
030 272-2509 Drive assembly (OBSOLETE) $1,075.73 1 usually ships 1-5 days
031 N/A Not available Call for price 1 Clamp usually ships 3-26 days
032 N/A Not available Call for price 1 Motor hanger usually ships 3-26 days
033 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
034 172-0103 Electrical mount $13.40 2 usually ships 1-5 days
035 172-0346 Stud 1/4-20 $11.99 2 ships same day
036 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
037 N/A Not available Call for price 2 Washer 1/4 spring lock usually ships 3-26 days
038 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
039 N/A Not available Call for price 1 (Roller chain o ring) usually ships 3-26 days
