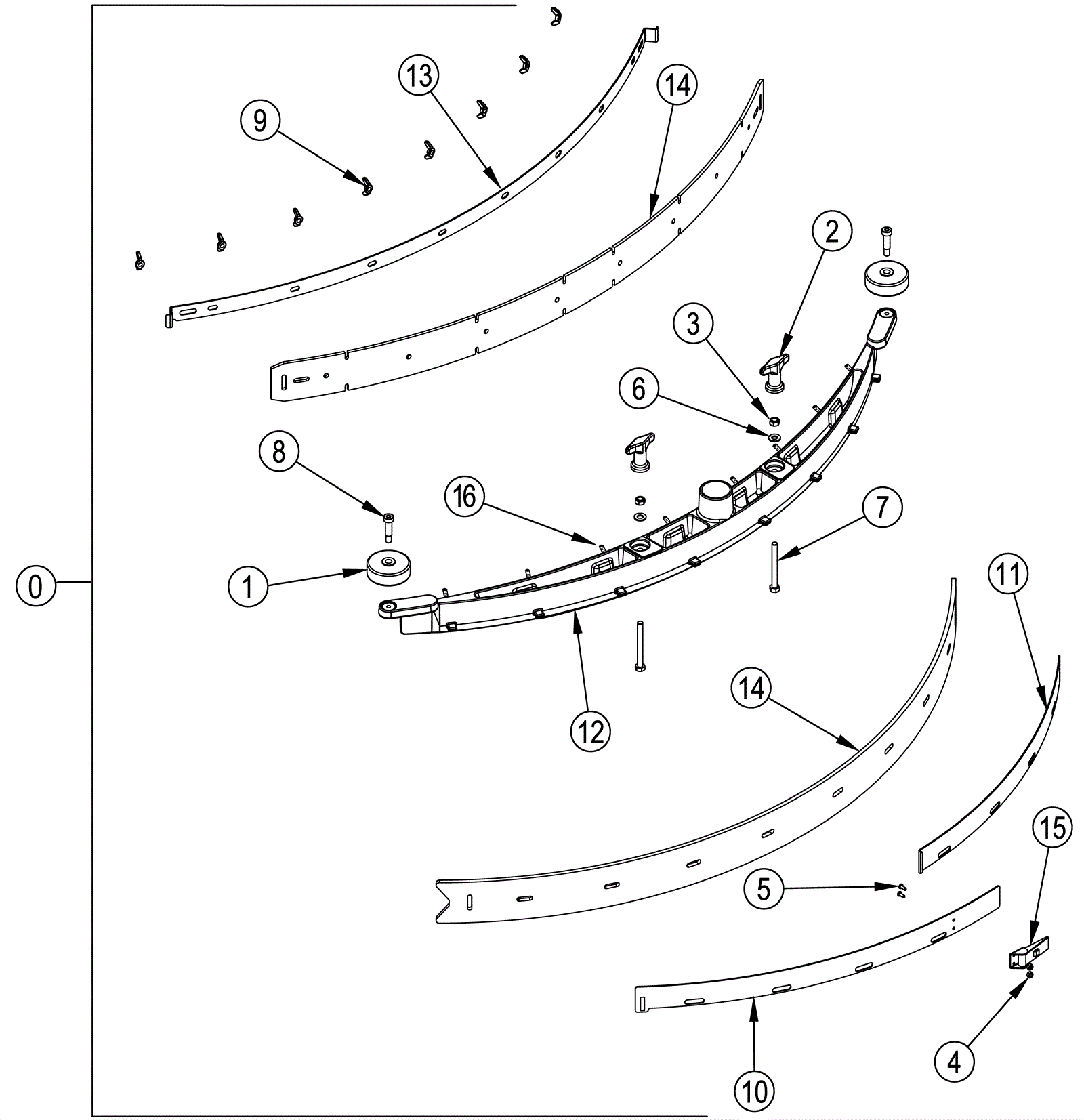

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-2239
|
32 inch squeegee assembly |
$1,103.92
|
1 |
(disc models) (includes 1-10a, 11a, 12a, 13a, 14a, and 15) |
ships same day |
0b |
272-2350
|
26 inch squeegee assembly |
$618.74
|
1 |
(cylindrical models) (includes 1-9, 10b, 11b, 12b, 13b , 14b, and 15) |
ships same day |
1a |
172-0045
|
Guide wheel |
$13.40
|
2 |
(OEM) |
ships same day |
1b |
991-3051
|
Guide wheel |
$4.95
|
2 |
(NON-OEM) |
ships same day |
2 |
172-4099
|
Nut 5/16-18 thumb |
$11.26
|
2 |
|
ships same day |
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
$0.99
|
2 |
|
ships same day |
5 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
6 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
$1.69
|
2 |
|
ships same day |
7 |
272-2754
|
Screw 5/16-18 x 3 hex head full thread |
$10.56
|
2 |
|
ships same day |
8 |
999-1256
|
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
$4.84
|
2 |
|
ships same day |
9 |
999-0603
|
Nut 1/4-20 wing stainless steel |
$7.33
|
8 |
|
ships same day |
10a |
272-2241
|
Left rear strap |
$15.07
|
1 |
(disc models) |
usually ships 16-41 days |
10b |
172-3458
|
Left rear strap |
$11.99
|
1 |
(cylindrical models) |
usually ships 16-41 days |
11a |
272-2247
|
Right rear strap |
$13.40
|
1 |
(disc models) |
usually ships 16-41 days |
11b |
172-3461
|
Right rear strap |
$11.99
|
1 |
(cylindrical models) |
ships same day |
12a |
272-2242
|
Squeegee weldment |
$335.71
|
1 |
(disc models) |
usually ships 16-41 days |
12b |
172-3473
|
Squeegee weldment |
$402.90
|
1 |
(cylindrical models) |
usually ships 16-41 days |
13a |
272-2243
|
Front strap |
$54.10
|
1 |
(disc models) |
usually ships 16-41 days |
13b |
172-3464
|
Front strap |
$54.10
|
1 |
(cylindrical models) |
usually ships 16-41 days |
14a |
272-2244
|
Squeegee blade 32 inch gum rubber kit |
$57.08
|
1 |
(disc models) |
usually ships 16-41 days |
14b |
272-2245
|
Squeegee blade 32 inch linatex kit |
$89.61
|
1 |
(disc models) (optional) |
ships same day |
14c |
272-2246
|
Squeegee blade 32 inch neoprene kit |
$194.27
|
1 |
(disc models) (optional) |
usually ships 16-41 days |
14d |
272-2354
|
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
$49.86
|
1 |
(cylindrical models) |
ships same day |
14e |
272-2355
|
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
$72.26
|
1 |
(cylindrical models) (optional) |
ships same day |
14f |
172-3482
|
Squeegee blade kit 26 and 28 inch neoprene |
$179.06
|
1 |
(cylindrical models) (optional) |
usually ships 16-41 days |
15 |
172-0094
|
Latch |
$43.41
|
1 |
|
ships same day |
16 |
999-1926
|
Screw 1/4-20 x 1 socket set cup point stainless steel |
$0.99
|
8 |
|
ships same day |
N/S |
272-8036
|
Squeegee blade front gum rubber |
$28.46
|
1 |
|
usually ships 16-41 days |
N/S |
272-8037
|
Squeegee blade rear gum rubber |
$36.07
|
1 |
|
usually ships 16-41 days |
