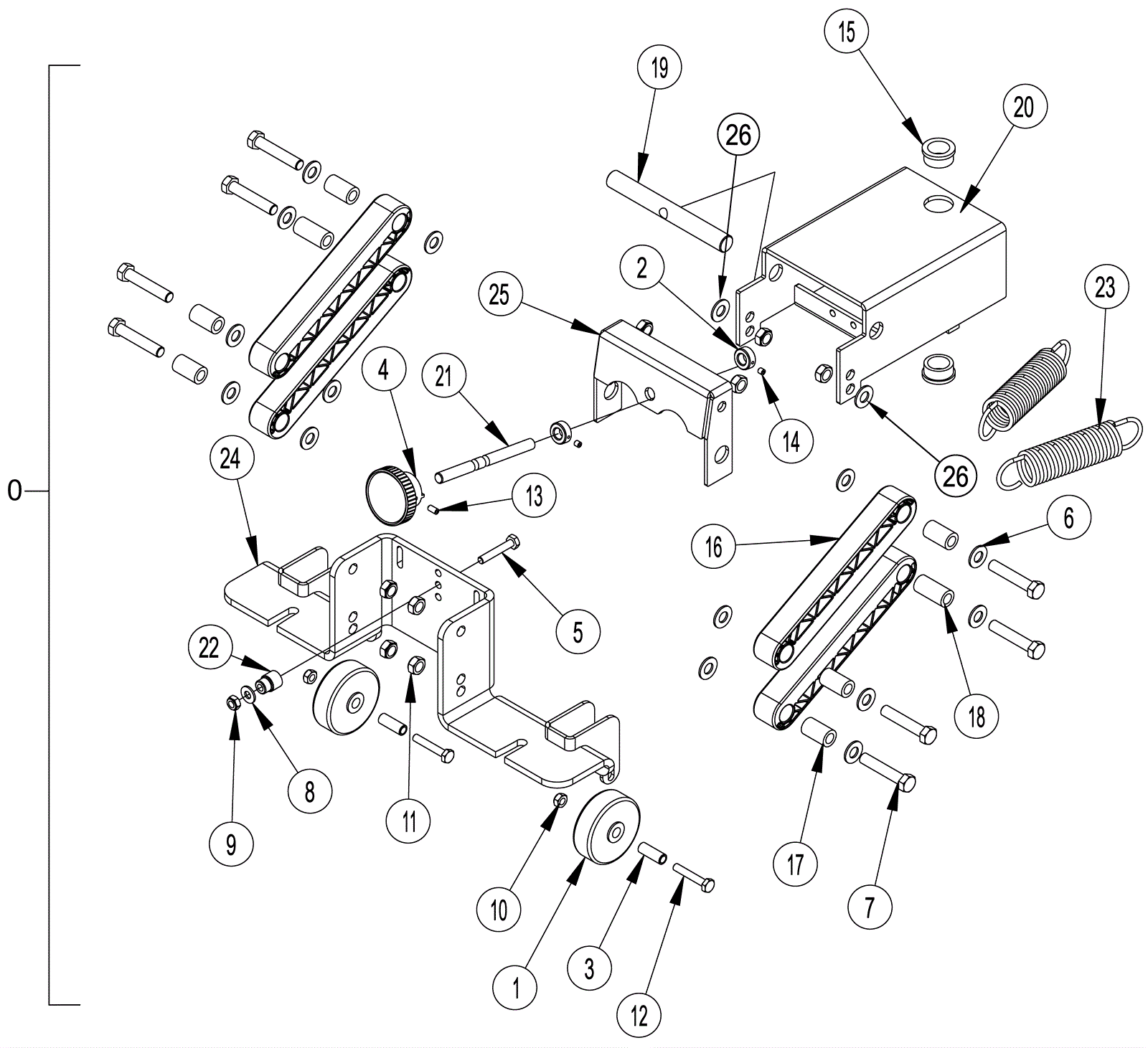

WARRIOR 34RST Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-2294 Squeegee linkage assembly $663.53 1 (includes 1-26) usually ships 16-41 days
1a 172-0045 Guide wheel $13.40 2 (OEM) ships same day
1b 991-3051 Guide wheel $4.95 2 (NON-OEM) ships same day
2 172-0071 Collar $9.02 2 usually ships 16-41 days
3 272-5366 Bushing $14.51 2 ships same day
4 172-0078 Knob $11.99 1 usually ships 16-41 days
5 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 1 ships same day
6 999-0120 Washer 3/8 SAE flat $0.99 14 ships same day
7 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 8 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
9 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
11 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 8 ships same day
12 272-5247 Screw 1/4-20 X 1 3/4 hex lock stainless steel $11.99 2 usually ships 16-41 days
13 999-1121 Screw 10-24 x 3/8 set cup point socket black oxide $0.99 1 ships same day
14 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
15 172-9388 Flanged bearing $13.40 2 usually ships 16-41 days
16 272-8163 Molded linkage arm $11.99 4 ships same day
17 272-9957 Phenolic spacer $11.99 6 usually ships 16-41 days
18 272-8022 Phenolic spacer $11.99 2 ships same day
19 272-2135 Pin $31.83 1 usually ships 16-41 days
20 272-2295 Squeegee weldment $194.27 1 usually ships 1-5 days
21 272-2139 Adjustment rod $54.10 1 usually ships 16-41 days
22 272-2140 Bushing $11.99 1 usually ships 16-41 days
23 272-2141 Extension spring $23.95 2 usually ships 16-41 days
24 272-2296 Squeegee mount weldment $164.67 1 usually ships 16-41 days
25 272-2137 Squeegee leveling bracket $58.48 1 usually ships 16-41 days
26 999-9127 Washer 5/8 SAE flat stainless steel $0.99 2 ships same day
