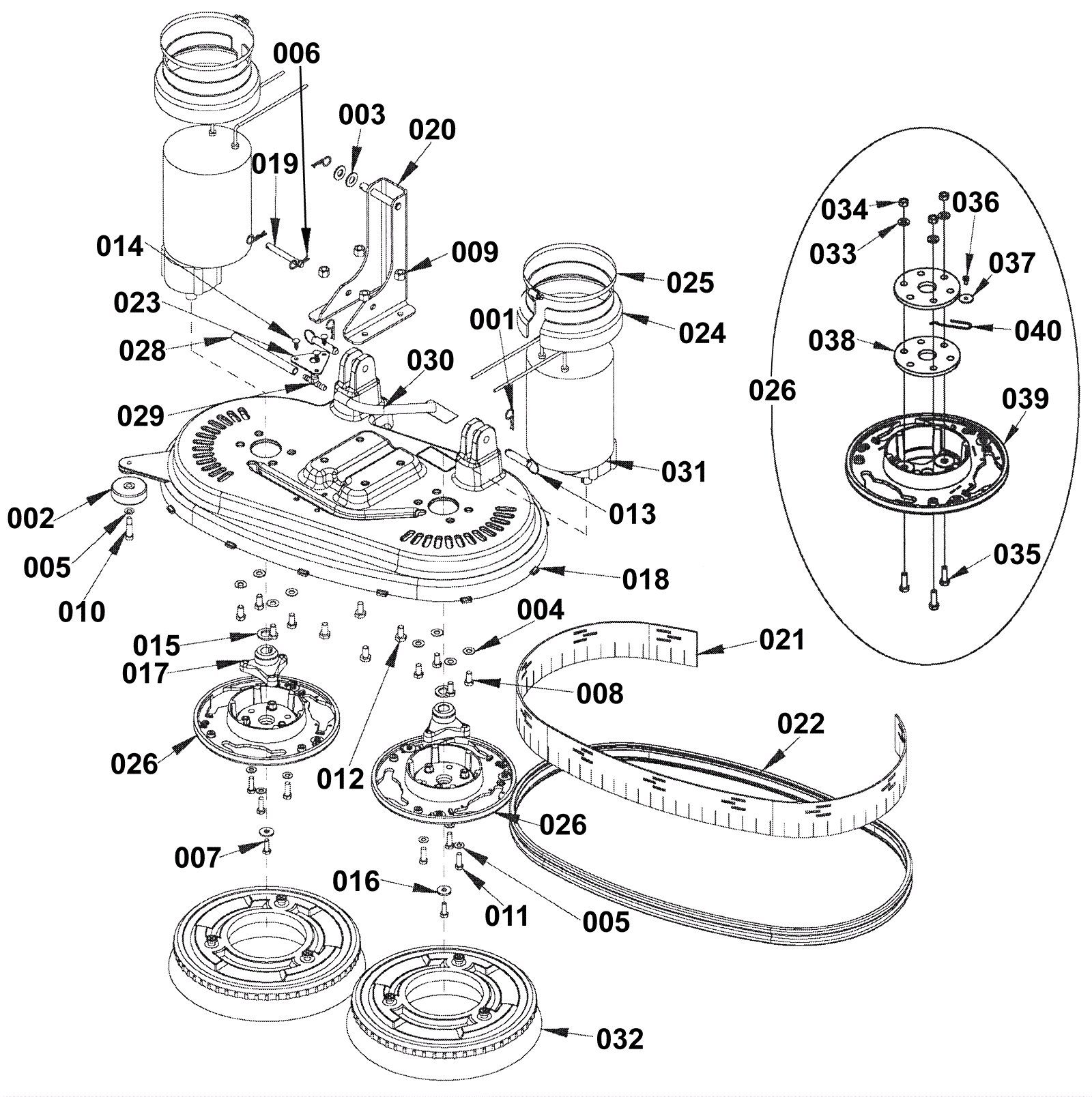

BA 855X Scrub System - Disk

#PartDescriptionPriceReqNotesAvailability
001 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 3 ships same day
002a 172-0045 Guide wheel $13.40 1 ships same day
002b 991-3051 Guide wheel $4.95 1 ships same day
003 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
004 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
006 997-2511 Cotter pin $0.99 2 ships same day
007 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 2 ships same day
008 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
009 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
010 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder $4.84 1 ships same day
011 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 6 ships same day
012 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
013 272-2115 Clevis pin $9.87 2 usually ships 16-41 days
014 272-2117 Nylon tree push-in rivet $11.99 3 usually ships 16-41 days
015 999-1134 Washer 1 1/4 flat stainless steel $6.01 2 ships same day
016 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
017 172-2088 Drive hub (OBSOLETE) $44.79 2 usually ships 16-41 days
018a 272-2751 28 inch scrub deck kit $431.31 1 usually ships 1-5 days
018b 272-9071 32 inch scrub deck kit (OBSOLETE) $462.87 1 usually ships 16-41 days
019 272-2124 Clevis pin $11.99 1 usually ships 16-41 days
020 N/A Not available Call for price 1 (Actuator bracket weldment) usually ships 3-26 days
021a 272-2127 24 inch rubber skirt $33.24 1 (for 28 inch machines) usually ships 16-41 days
021b 272-2311 32 inch rubber skirt $79.45 1 (OEM) usually ships 16-41 days
021c 991-5155 32 inch rubber skirt $35.40 1 (NON-OEM) usually ships 3-12 days
022a 272-2128 28 inch extruded bumber with metal band $89.61 1 usually ships 16-41 days
022b 272-2312 32 inch extruded bumper with metal band $91.00 1 usually ships 16-41 days
023 272-2131 Bracket $17.90 1 usually ships 16-41 days
024 272-2313 Motor shroud $15.70 2 usually ships 1-5 days
025 997-2010 Hose clamp $5.53 2 ships same day
026a 272-1382 Counterclockwise brush plate assembly $387.70 1 (includes 033-040) usually ships 16-41 days
026b 272-1383 Clockwise brush plate assembly $454.91 1 (includes 033-040) usually ships 16-41 days
028 172-1909 PVC hose 3/8 x 6 inch $11.99 1 usually ships 16-41 days
029 272-1384 Tee barb $11.99 1 usually ships 16-41 days
030 272-1385 PVC hose $11.99 1 usually ships 16-41 days
031a 272-1344 36V brush gear motor assembly $1,789.15 2 (OEM) usually ships 1-5 days
031b 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 2 (NON-OEM) (you will also need to order 999-0130) ships same day
031c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 (for NON-OEM brush motor) ships same day
032 SEE NOTE Please See Brushes Page Call for price usually ships 1-5 days
033 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
034 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
035 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 3 ships same day
036 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
037 999-0721 Washer 7/8 USS flat zinc plated $2.79 1 ships same day
038 172-2070 Thermoid disk $9.02 2 ships same day
039 172-2089 Drive plate $81.58 1 usually ships 16-41 days
040 172-2087 Spring retainer $16.93 1 ships same day
