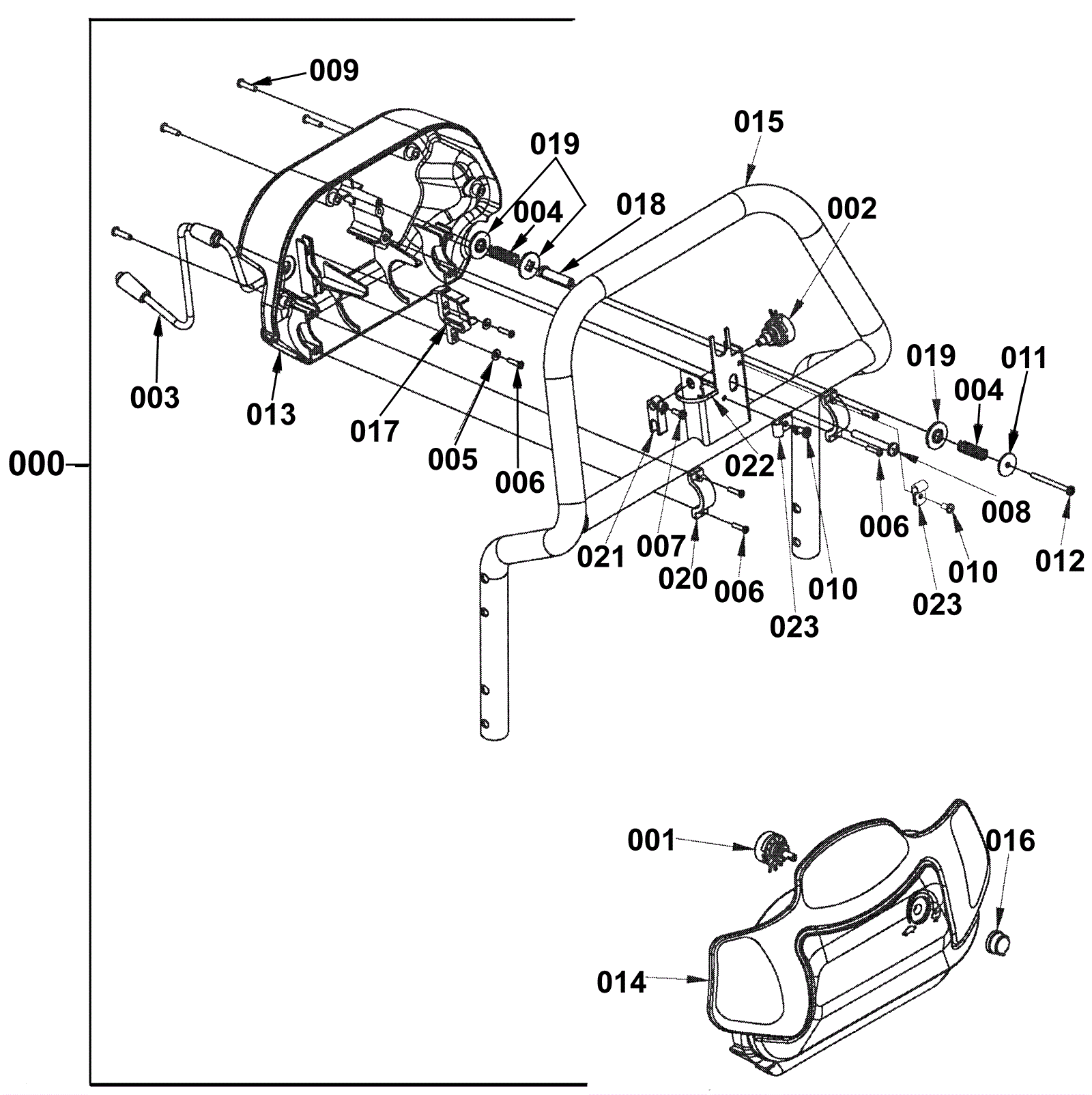

BA 855X Paddle Assembly

#PartDescriptionPriceReqNotesAvailability
000 272-2186 Handle assembly $761.01 1 (includes 001-023) usually ships 16-41 days
001 991-9022 100K Potentiometer (speed control) $57.08 1 usually ships 16-41 days
002 172-2039 5K potentiometer $61.41 1 ships same day
003 272-2187 Paddle harness $106.08 1 (goes from the 5 & 20K potentiometer to the machine, one end is wires and the other end is a connector- swivel end) usually ships 16-41 days
004 172-2036 Compression spring $11.99 2 usually ships 16-41 days
005 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
006 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
007 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 ships same day
008 172-2035 Screw 1/4-10 x 2 pan head phillips $11.99 1 usually ships 16-41 days
009 272-2188 Screw 8-10 x 3/4 pan head phillips plastite $10.56 4 ships same day
010 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
011 999-0721 Washer 7/8 USS flat zinc plated $2.79 1 ships same day
012 172-2037 Screw 8 x 2 pan head phillips type B $10.56 1 ships same day
013 272-2189 Rear paddle $40.45 1 ships same day
014 272-2190 Front paddle $89.61 1 ships same day
015 272-2191 Handle bar weldment $103.26 1 usually ships 1-5 days
016 272-2192 Knob $13.40 1 usually ships 16-41 days
017 172-2038 Cam controller $15.07 1 ships same day
018 172-2043 Sleeve $26.92 1 ships same day
019 172-2045 Washer plastic $10.56 3 ships same day
020 272-1353 Clamp $11.99 2 usually ships 16-41 days
021 172-2047 U clamp $10.56 1 usually ships 16-41 days
022 997-2101 6 inch cable tie $0.99 1 ships same day
023 172-4063 P clamp $11.99 2 usually ships 1-5 days
