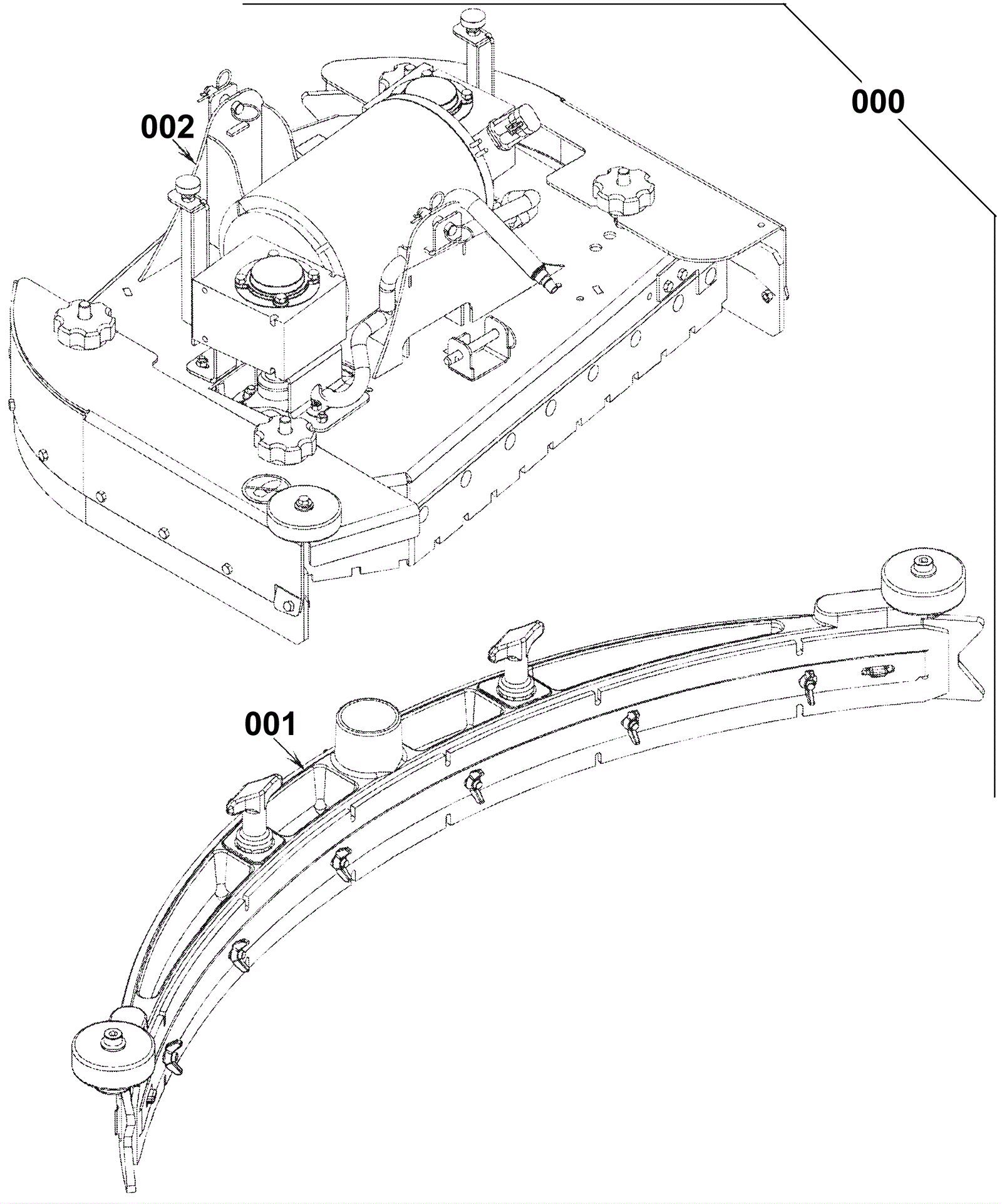

Disk Deck Assembly

#PartDescription ReqNotesAvailability
000 272-1533 Deck kit BR 700S (OBSOLETE) 1
001 172-3454 Squeegee assembly 1
002 272-1532 28 inch Disk deck assembly (OBSOLETE) 1
N/S 272-1444 28 inch disk linatex kit
N/S 172-3480 Squeegee blade kit 32 inch gum rubber (pkg of 2)
N/S 996-0929 Polypropelene scrubbing brush 2
N/S 172-3482 Squeegee blade kit 26 and 28 inch neoprene
N/S 996-0721 Pad driver 2
N/S 996-0927 Extra heavy grit stripping brush - 46 grit 2
N/S 996-3177 Midlite grit brush 2
N/S 272-1442 28 inch blade kit gum rubber
N/S N/A Not available 1 (Instruction sheet)
N/S 272-6075 Disk deck blade kit 28 inch polyurethane
N/S 172-8461 14 inch union mix brush 2
N/S 996-0931 Medium grit scrubbing brush - 180 grit 2
N/S 996-0928 Lite grit scrubbing brush - 500 grit 2
N/S 996-0851 Extra heavy grit stripping brush - 46 grit 2
N/S 172-8114 Prolene brush
N/S 172-3481 Squeegee blade kit 32 inch Linatex (red) (pkg of 2)
N/S 172-3413 28 inch skirt blade kit linatex disk
N/S 172-3411 28 inch skirt blade kit gum rubber disk
