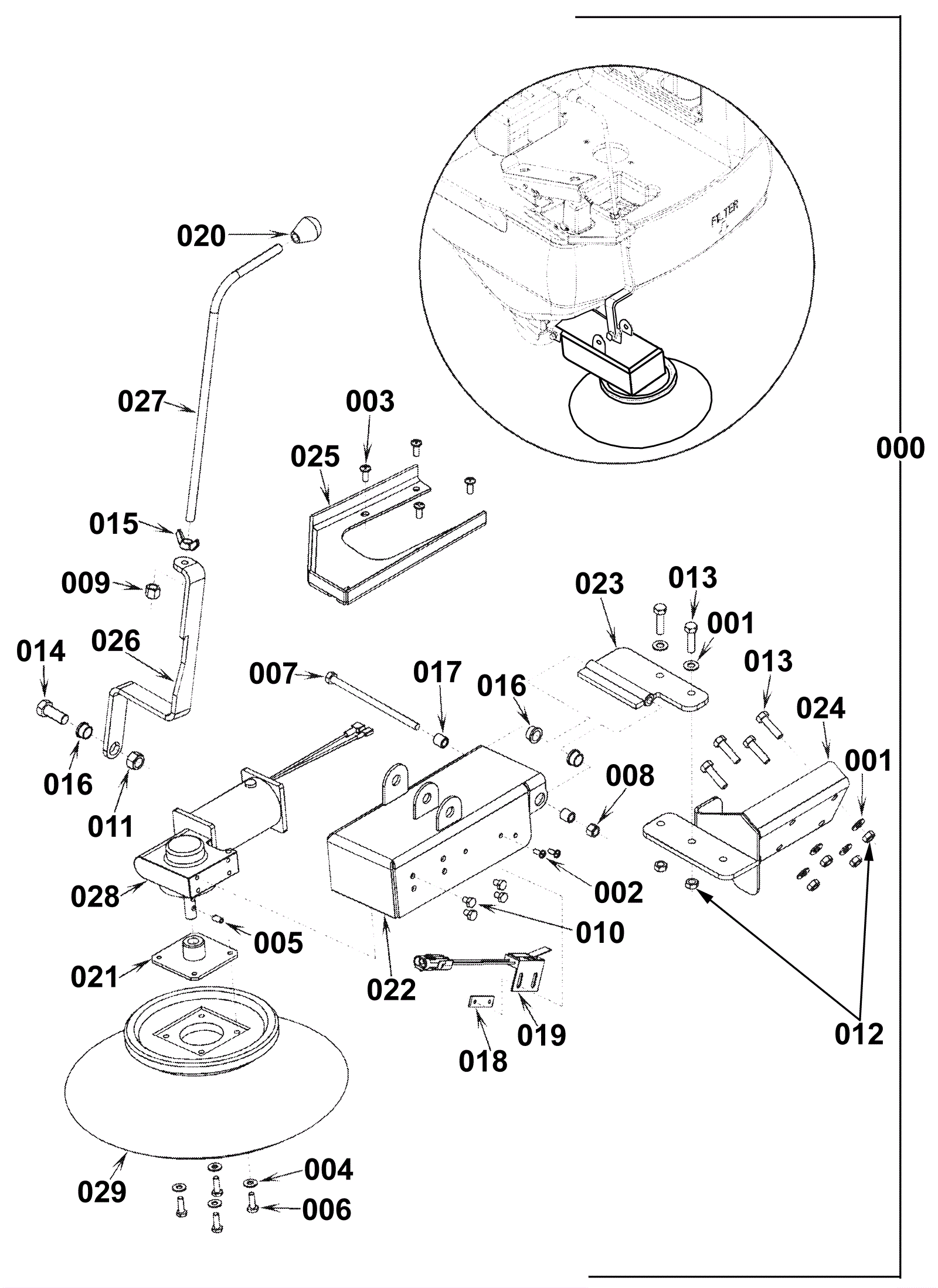

650SC Side Broom Kit

#PartDescriptionPriceReqNotesAvailability
000 272-0465 Right side broom kit $3,050.13 1 Kit includes 001-029 and not shown parts listed usually ships 1-5 days
001 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
002 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
003 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
004 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
005 181-0003 Screw 1/4-20 x 1/2 socket set lock $10.90 1 usually ships 16-41 days
006 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
007 272-0467 Bolt 5/16-18 x 5 1/2 hex head $9.60 1 usually ships 1-5 days
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
009 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
010 272-1538 Bolt 1/4-20 X 3/8 hex head lock $10.90 4 usually ships 1-5 days
011 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
012 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
013 172-4427 Bolt M8-1-1/4 x 30mm hex $10.90 6 usually ships 1-5 days
014 272-1615 Bolt 12mm-1 3/4 x 30mm hex head $10.90 1 usually ships 1-5 days
015 999-0660 Nut 3/8-16 wing stainless steel $2.93 1 ships same day
016 172-9497 Flanged bearing $12.18 3 usually ships 16-41 days
017 272-0468 Bushing $39.46 2 usually ships 1-5 days
018 172-2158 Nut plate $16.27 1 usually ships 1-5 days
019 172-0217 Waterproof switch $257.94 1 usually ships 1-5 days
020 172-0208 Knob (OBSOLETE) $21.24 1 usually ships 16-41 days
021 272-0469 Brush holder weldment $82.73 1 usually ships 1-5 days
022 272-0470 Sidebroom arm weldment $120.78 1 usually ships 1-5 days
023 272-0471 Pivot weldment $81.46 1 usually ships 1-5 days
024 272-0472 Bracket weldment $203.49 1 usually ships 1-5 days
025 272-0473 Lift bracket $55.83 1 usually ships 1-5 days
026 272-0474 Lift bar $59.43 1 usually ships 1-5 days
027 272-0475 Lift rod $78.95 1 usually ships 1-5 days
028 172-9740 Motor assembly $1,301.59 1 24v usually ships 1-5 days
029 172-3669 Polypropelene side broom $142.40 1 ships same day
N/S 272-0476 Sidebroom harness $80.28 1 usually ships 1-5 days
N/S 997-2101 6 inch cable tie $0.99 1 ships same day
