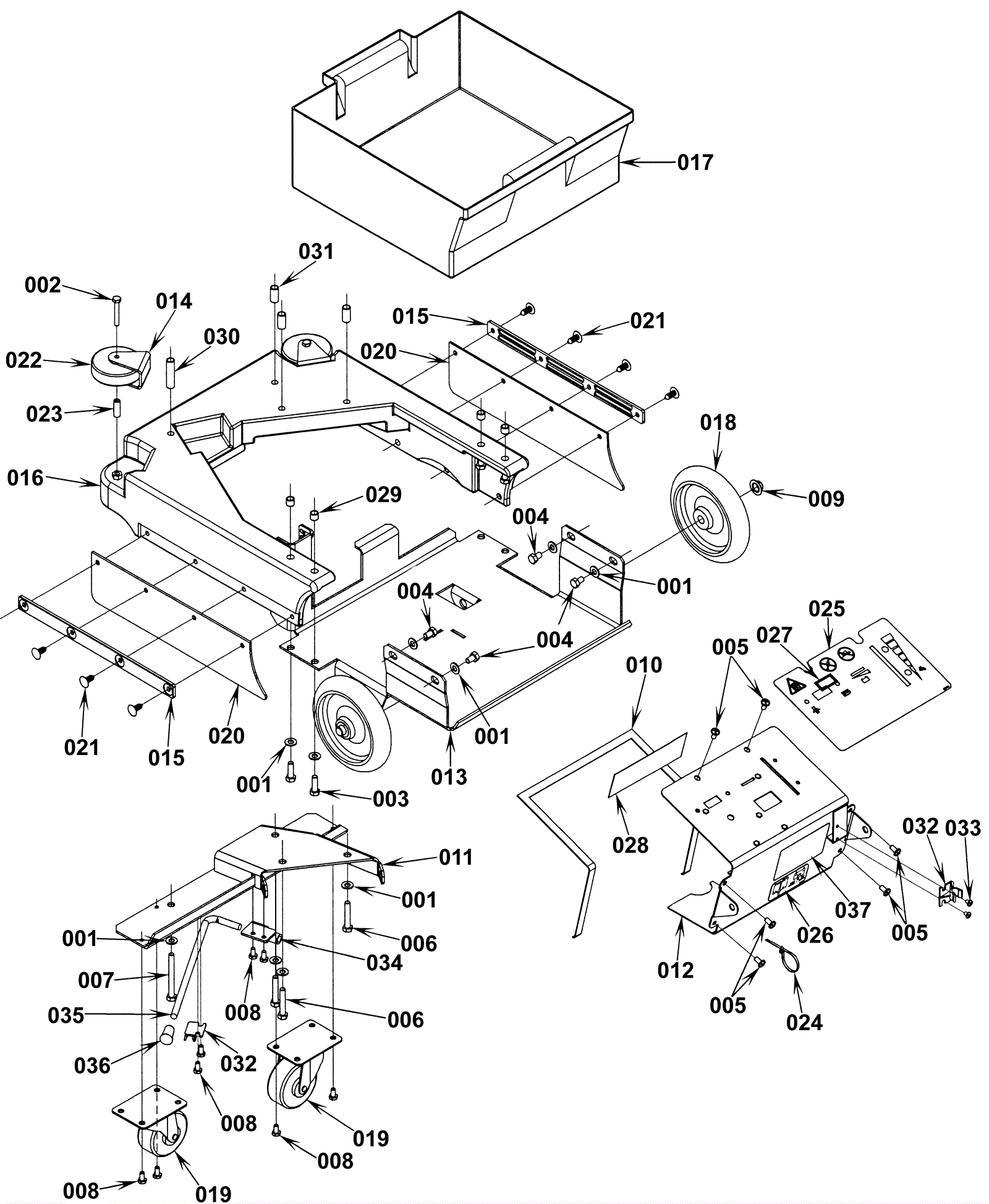

MICROMATIC 17 Chassis System Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0024 Washer 5/16 flat stainless steel $1.34 12 ships same day
002 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
003 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
004 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 4 ships same day
005 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 6 ships same day
006 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 3 ships same day
007 999-1132 Bolt 5/16-18 x 3 hex head stainless steel $2.19 1 ships same day
008 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 4 ships same day
009 172-4017 1/2 inch push cap $9.61 2 usually ships 1-5 days
010 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) $10.90 33 usually ships 16-41 days
011 272-0195 Caster mount (OBSOLETE) $8.09 1 usually ships 1-5 days
012 N/A Not available Call for price 1 (Control panel) usually ships 3-26 days
013 N/A Not available Call for price 1 (Battery box) usually ships 3-26 days
015 172-4181 Squeegee blade strap $19.10 2 usually ships 1-5 days
016 N/A Not available Call for price 1 (Skirt) usually ships 3-26 days
017 N/A Not available Call for price 1 (Battery tray) usually ships 3-26 days
018 172-4191 Wheel $35.48 2 usually ships 16-41 days
019 272-7016 Caster wheel $86.03 2 usually ships 16-41 days
020 172-4182 Squeegee blade (OBSOLETE) $24.60 2 usually ships 16-41 days
021 172-4180 Panel clip $9.56 8 usually ships 16-41 days
022a 172-0083 3 inch guide wheel $12.18 2 usually ships 16-41 days
022b 991-3060 Bumper wheel $4.62 2 usually ships 5-16 days
022c 991-3030 Wheel $3.46 2 (NON-OEM) ships same day
023 172-0044 Bushing (OBSOLETE) $35.73 2 usually ships 16-41 days
024 272-0201 Pushmount tie (OBSOLETE) $5.72 1 usually ships 1-5 days
025 N/A Not available Call for price 1 (Control panel decal) usually ships 3-26 days
026 N/A Not available Call for price 1 (Battery connect decal) usually ships 3-26 days
027 272-0202 Gasket (OBSOLETE) $8.81 1 usually ships 1-5 days
028 991-1818 Electrical tape $5.81 6 usually ships 1-5 days
029 N/A Not available Call for price 4 (Spacer) usually ships 3-26 days
030 N/A Not available Call for price 1 (Spacer) usually ships 3-26 days
031 N/A Not available Call for price 3 (Spacer) usually ships 3-26 days
032 272-0206 Clip $27.64 2 usually ships 16-41 days
033 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 2 ships same day
035 272-0208 Rod $36.50 1 usually ships 1-5 days
036 272-0209 Rubber tip $10.17 1 usually ships 1-5 days
037 N/A Not available Call for price 1 (Wear items decal) usually ships 3-26 days
