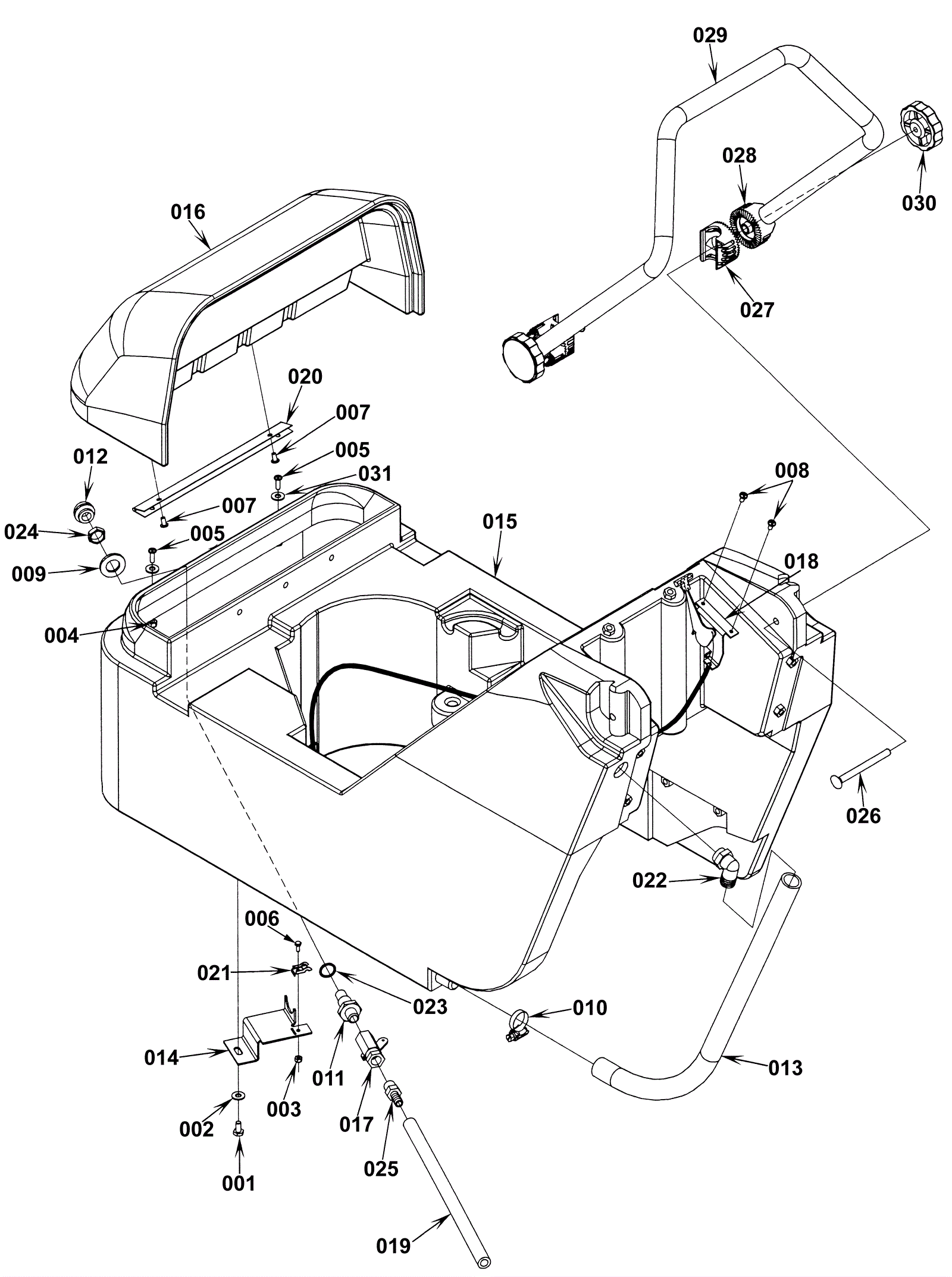

MICROMATIC 17 Solution System Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
002 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
004 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
005 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 2 ships same day
006 172-4377 Screw 6-32 x .38 hex head $12.31 1 usually ships 1-5 days
007 N/A Not available Call for price 2 usually ships 3-26 days
008 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
009 181-1076 Washer 11/16 x 1 1/4 flat $12.31 1 usually ships 1-5 days
010 997-2004 Hose clamp $2.15 1 ships same day
011 181-1078 Nipple (OBSOLETE) $70.94 1 usually ships 17-28 days
012 172-0618 Strainer $26.04 1 usually ships 17-28 days
013 272-1410 Hose $35.60 1 usually ships 17-28 days
014 272-0188 Cable bracket (OBSOLETE) $29.08 1 usually ships 1-5 days
015 272-0189 Solution tank (OBSOLETE) $951.92 1 usually ships 1-5 days
016 272-0190 Solution tank cover (OBSOLETE) $704.39 1 usually ships 1-5 days
017 272-0191 Manual solution valve (OBSOLETE) $84.26 1 usually ships 17-28 days
018 272-1961 Lever with cable $69.01 1 usually ships 17-28 days
019 272-1036 Solution hose $26.04 1 usually ships 1-5 days
020 272-0192 Hinge $81.60 1 usually ships 1-5 days
021 172-9023 Cable clamp $12.31 1 usually ships 17-28 days
022 172-2322 90 degree elbow barb 3/4 x 3/8 $26.04 1 usually ships 17-28 days
023 181-1097 O-ring (OBSOLETE) $10.52 1 usually ships 17-28 days
025 272-0193 Barb adapter $12.31 1 usually ships 1-5 days
026 272-5245 Screw 5/16-18 X 3.50 carriage $10.52 2 usually ships 1-5 days
027 272-5069 Handle adjustment ratchet $24.60 2 usually ships 17-28 days
028 272-5068 Handle adjustment ratchet $34.14 2 usually ships 17-28 days
029 272-0194 Handle tube (OBSOLETE) $290.42 1 usually ships 1-5 days
030 272-5070 Knob (OBSOLETE) $6.06 2 usually ships 17-28 days
031 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
