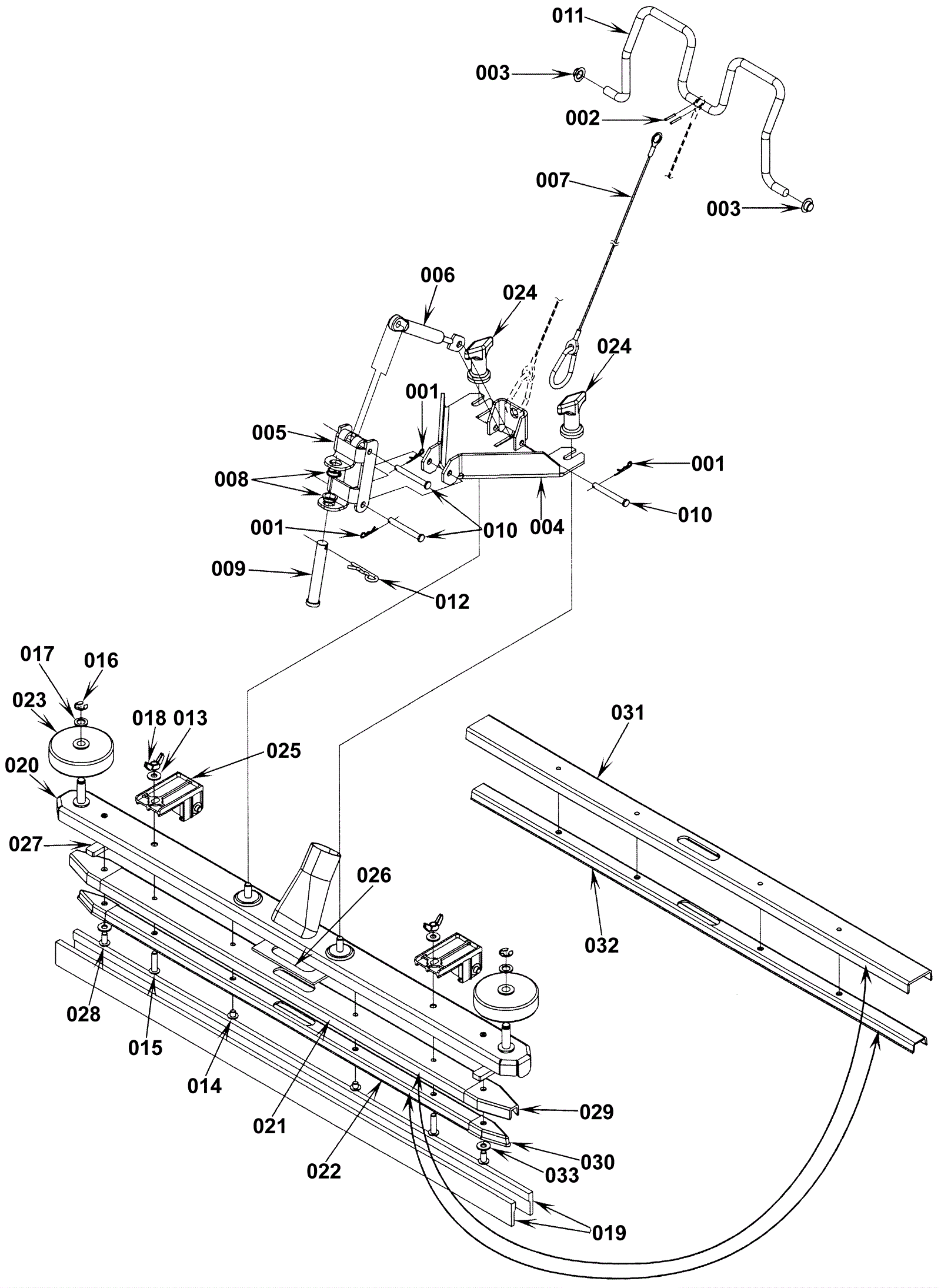

MICROMATIC 17 Squeegee System Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-4415 Pin .042 x .188 cot hair $10.90 3 usually ships 1-5 days
002 172-4417 Pin spring .09 x .625 $8.43 2 usually ships 1-5 days
003 172-4142 Nut 3/8 push cap $9.60 2 usually ships 16-41 days
004 272-0171 Squeegee mount $48.98 1 usually ships 1-5 days
005 272-0172 Pivot bracket $61.01 1 usually ships 1-5 days
006 272-0173 Spring gas $95.16 1 usually ships 16-41 days
007 272-0174 Cable assembly $31.12 1 usually ships 1-5 days
008 172-8919 Flanged bearing $10.90 2 usually ships 16-41 days
009 172-4393 Pin .50 x 3.00 clevis $10.90 1 usually ships 1-5 days
010 172-4394 Pin .250x 2.00 clevis $12.18 3 usually ships 1-5 days
011 272-0175 Handle $25.39 1 usually ships 1-5 days
012a 997-2518 Hitch pin $0.99 1 ships same day
012b 172-4170 Squeegee assembly $487.71 1 usually ships 1-5 days
013 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
014 999-0343 Screw 1/4-20 x 1/4 pan head phillips stainless steel $0.99 2 ships same day
015 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
016 172-0315 Retaining ring $9.60 2 usually ships 16-41 days
018 999-1948 Nut 1/4-20 wing lock $2.12 2 ships same day
019 172-8027 Squeegee blade blue $35.48 2 ships same day
020 272-0176 Squeegee tool $283.55 1 usually ships 1-5 days
021 272-0177 Channel $33.37 1 usually ships 16-41 days
022 272-0178 Retainer $40.72 1 usually ships 1-5 days
023a 172-0083 3 inch guide wheel $12.18 2 usually ships 16-41 days
023b 991-3060 Bumper wheel $4.62 2 usually ships 5-16 days
023c 991-3030 Wheel $3.46 2 (NON-OEM) ships same day
024 172-4099 Nut 5/16-18 thumb $10.24 2 ships same day
025 172-0276 Roller assembly $54.43 2 usually ships 16-41 days
026 172-0238 Gasket $9.60 1 usually ships 16-41 days
027 172-0275 Gasket $9.60 2 usually ships 16-41 days
028 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
029 272-0179 Squeegee housing (OBSOLETE) $10.68 2 usually ships 16-41 days
030 272-0180 Squeegee cartridge end cap (OBSOLETE) $10.68 2 usually ships 16-41 days
031 272-0181 Squeegee blade channel (OBSOLETE) $39.77 1 usually ships 16-41 days
032 272-0182 Squeegee blade retainer (OBSOLETE) $32.79 1 usually ships 16-41 days
033 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
KIT 172-4467 Squeegee cartridge assembly $156.25 usually ships 16-41 days
KIT 272-0183 Squeegee blade cartridge (OBSOLETE) $118.08 usually ships 1-5 days
