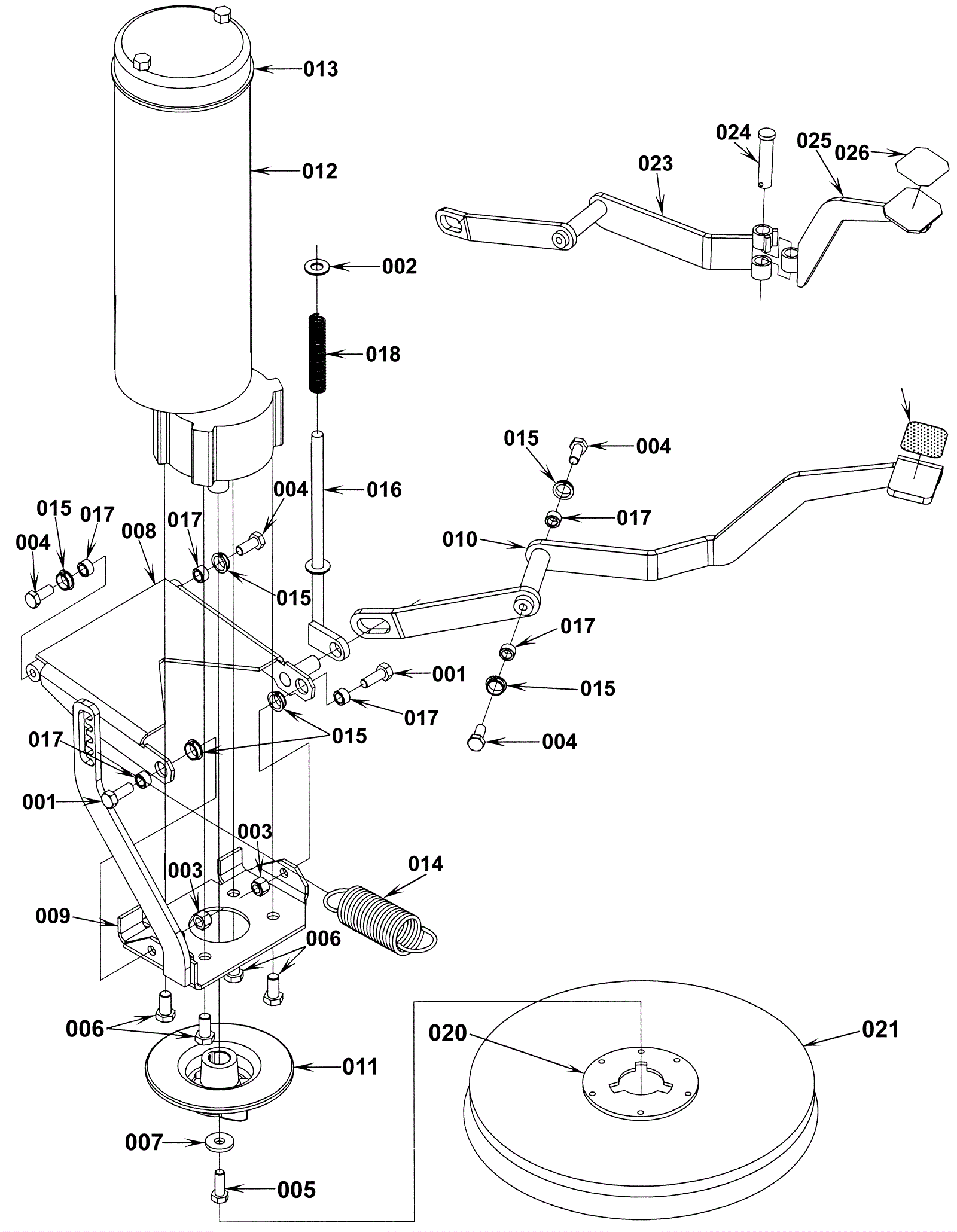

MICROMATIC 17 Brush Drive System Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
002 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
004 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
005 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
006 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
007 172-2067 Washer 11/32 x 1/8 flat $10.90 1 usually ships 16-41 days
008 N/A Not available Call for price 1 (Linkage) usually ships 3-26 days
009 N/A Not available Call for price 1 (Motor mount) usually ships 3-26 days
010 272-0161 Pedal assembly (OBSOLETE) $254.34 1 usually ships 1-5 days
011 272-0162 Lug and plate kit (OBSOLETE) $146.30 1 usually ships 1-5 days
012 N/A Not available Call for price 1 (Brush drive motor) usually ships 3-26 days
013 N/A Not available Call for price 1 (Gasket) usually ships 3-26 days
014 N/A Not available Call for price 1 (Extension spring) usually ships 3-26 days
015 172-8919 Flanged bearing $10.90 6 usually ships 16-41 days
016 N/A Not available Call for price 1 (Rod) usually ships 3-26 days
017 172-4008 Bushing $29.59 6 usually ships 16-41 days
018 272-0166 Spring $23.00 1 usually ships 1-5 days
019 N/A Not available Call for price 1 (Grip surface) usually ships 3-26 days
020 172-4600 Plastic clutch plate for NP92 $18.00 1 usually ships 1-5 days
021 996-0070 17 inch pad driver $51.75 1 usually ships 6-18 days
022 272-0161 Pedal assembly (OBSOLETE) $254.34 1 usually ships 1-5 days
023 N/A Not available Call for price 1 (Lower pedal weldment) usually ships 3-26 days
024 172-4463 Clevis pin $10.90 1 usually ships 1-5 days
025 N/A Not available Call for price 1 (Upper panel weldment) usually ships 3-26 days
026 181-0783 Foot pedal pad (OBSOLETE) $7.98 1 usually ships 1-5 days
