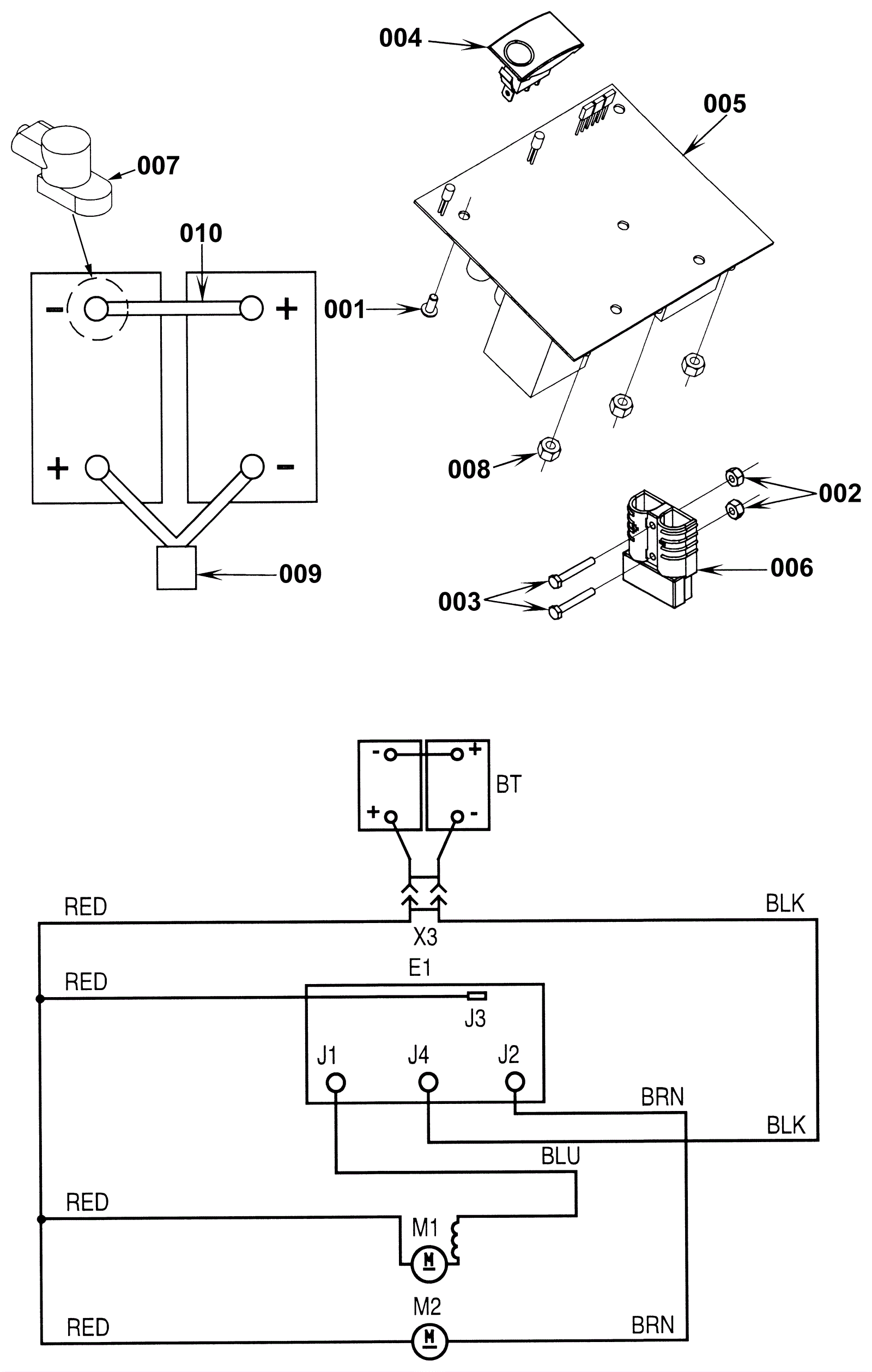

MICROMATIC 17 Electrical System-Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 5 ships same day
002 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
003 999-0102 Screw 6-32 x 1 round head slotted zinc plated $0.99 2 ships same day
004 272-1846 Rocker switch $43.93 1 usually ships 16-41 days
005 272-0145 Controller assembly (OBSOLETE) $328.50 1 usually ships 16-41 days
006 991-2102 50amp charger plug SB50 only (red) $11.16 1 ships same day
007 N/A Not available Call for price 4 (Insulator cap) usually ships 3-26 days
008 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
009 272-0156 Plug assembly $119.48 1 usually ships 1-5 days
010a 272-0157 Cable Assy (OBSOLETE) $25.50 1 usually ships 1-5 days
010b 272-0158 Optional hour meter kit $149.70 1 usually ships 1-5 days
010c N/A Not available Call for price 1 Optional battery cart usually ships 3-26 days
010d N/A Not available Call for price 1 (Wiring harness) usually ships 3-26 days
E1 272-0145 Controller assembly (OBSOLETE) $328.50 1 usually ships 16-41 days
M1 172-0787 24V 3 stage vacuum motor assembly (OBSOLETE) $258.02 1 usually ships 16-41 days
M2 N/A Not available Call for price 1 (Brush drive motor) usually ships 3-26 days
N/S 272-1846 Rocker switch $43.93 1 usually ships 16-41 days
N/S 991-1224 Plastic covered carbon brush (sold individually) $8.22 2 ships same day
X3 991-2102 50amp charger plug SB50 only (red) $11.16 1 ships same day
