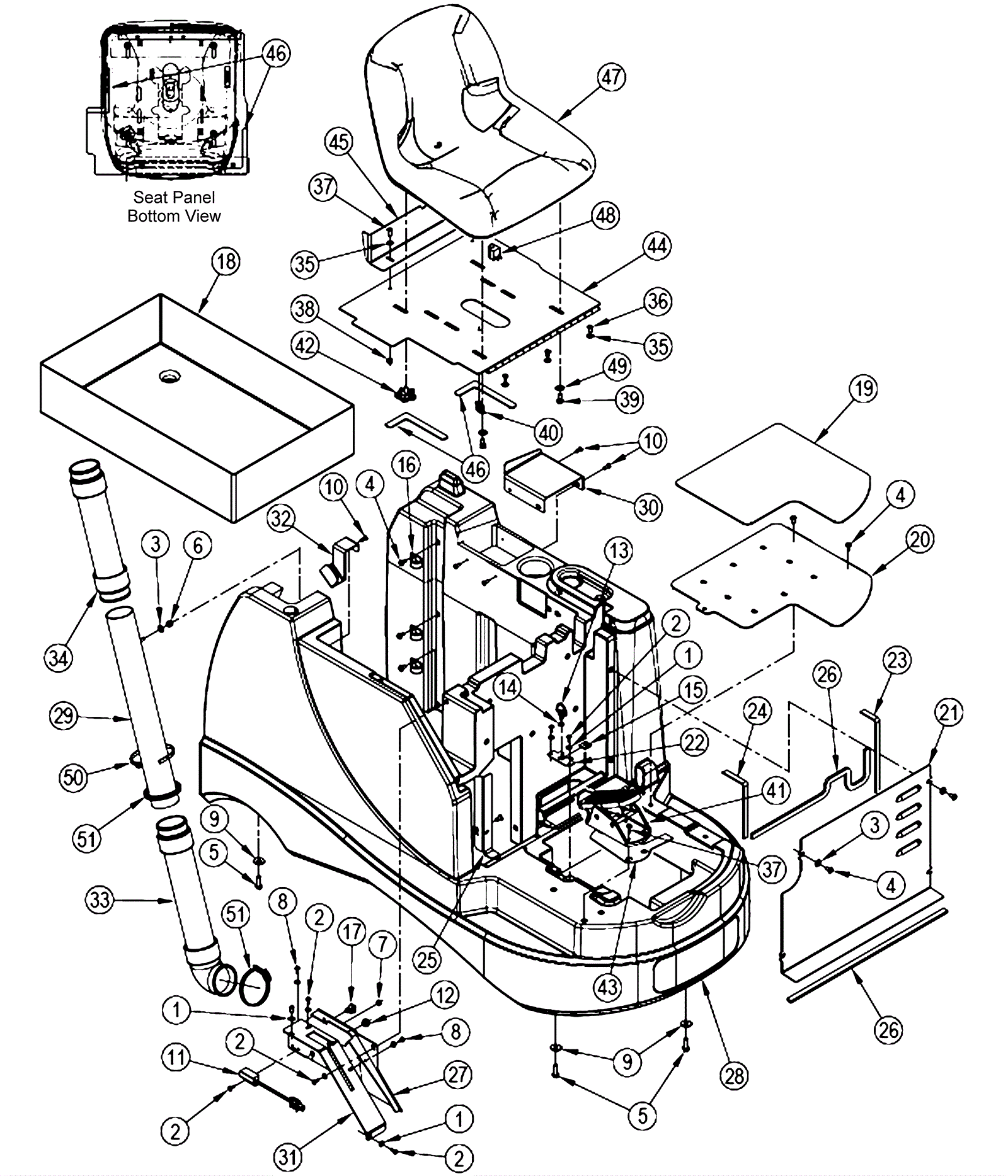

VACRIDE Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1862 Washer #10 flat SAE stainless steel $0.99 8 ships same day
2 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 7 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
4 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 10 ships same day
5 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
8 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
9 172-2067 Washer 11/32 x 1/8 flat $12.31 4 usually ships 17-28 days
10 182-0034 Screw 10-14 x 1/2 pan head plastite $4.61 5 ships same day
11 272-8850 Proximity sensor $169.11 1 ships same day
12 172-1228 Grommet $10.85 1 usually ships 1-5 days
13 172-8218 Fastener $8.69 1 usually ships 17-28 days
14 272-2424 Retainer $13.76 1 usually ships 17-28 days
15 272-2426 Receptacle $13.76 1 usually ships 17-28 days
16 172-1154 P clamp $12.31 3 usually ships 1-5 days
17 272-8754 Conduit clip $12.31 1 usually ships 1-5 days
18 272-8863 Battery box $215.00 1 usually ships 17-28 days
19 272-8864 Mat $48.18 1 usually ships 17-28 days
20 272-8865 Charger cover weldment $121.68 1 usually ships 1-5 days
21 272-6379 Electrical cover panel $121.68 1 usually ships 1-5 days
22 272-6378 Plate $12.31 1 usually ships 1-5 days
23 272-8868 Gasket $12.31 1 usually ships 1-5 days
24 272-8869 Gasket $12.31 1 usually ships 1-5 days
25 272-8870 L bracket $26.04 1 usually ships 1-5 days
26 272-8871 Gasket $12.31 2 usually ships 1-5 days
27 272-8872 Handle cover weldment $55.56 1 usually ships 1-5 days
28 272-8873 Solution tank (OBSOLETE) $625.79 1 usually ships 1-5 days
29 272-8874 Tube weldment $45.10 1 usually ships 1-5 days
30 272-8875 Panel accessory $36.30 1 usually ships 1-5 days
31 272-8876 Handle cover top panel $99.22 1 usually ships 1-5 days
32 272-8877 Handle bracket $34.23 1 usually ships 1-5 days
33 272-8878 Hose assembly $35.48 1 usually ships 1-5 days
34 272-8879 Hose assembly $26.60 1 usually ships 1-5 days
35 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
36 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
37 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 5 ships same day
38 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
39 999-0646 Screw 5/16-18 x 3/8 socket head shoulder $3.08 3 ships same day
40 172-1793 Clip $12.31 1 usually ships 1-5 days
41 272-8880 Foot pedal assembly $268.38 1 usually ships 17-28 days
42 272-8881 Knob $12.31 1 usually ships 1-5 days
43 272-8882 Foot pedal plate $13.17 1 usually ships 1-5 days
44 272-8883 Seat panel weldment (OBSOLETE) $151.37 1 usually ships 1-5 days
45 272-8884 Bracket $39.60 1 usually ships 1-5 days
46 272-8885 Panel pad $8.80 2 usually ships 1-5 days
47 275-9153 Handle grip (OBSOLETE) Call for price 1 usually ships 10-16 days
48 272-9417 Seat switch $23.01 1 usually ships 17-28 days
49 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
50 997-2102 Cable tie $1.24 1 ships same day
51 272-8886 Ratchet lock band $47.85 2 usually ships 1-5 days
