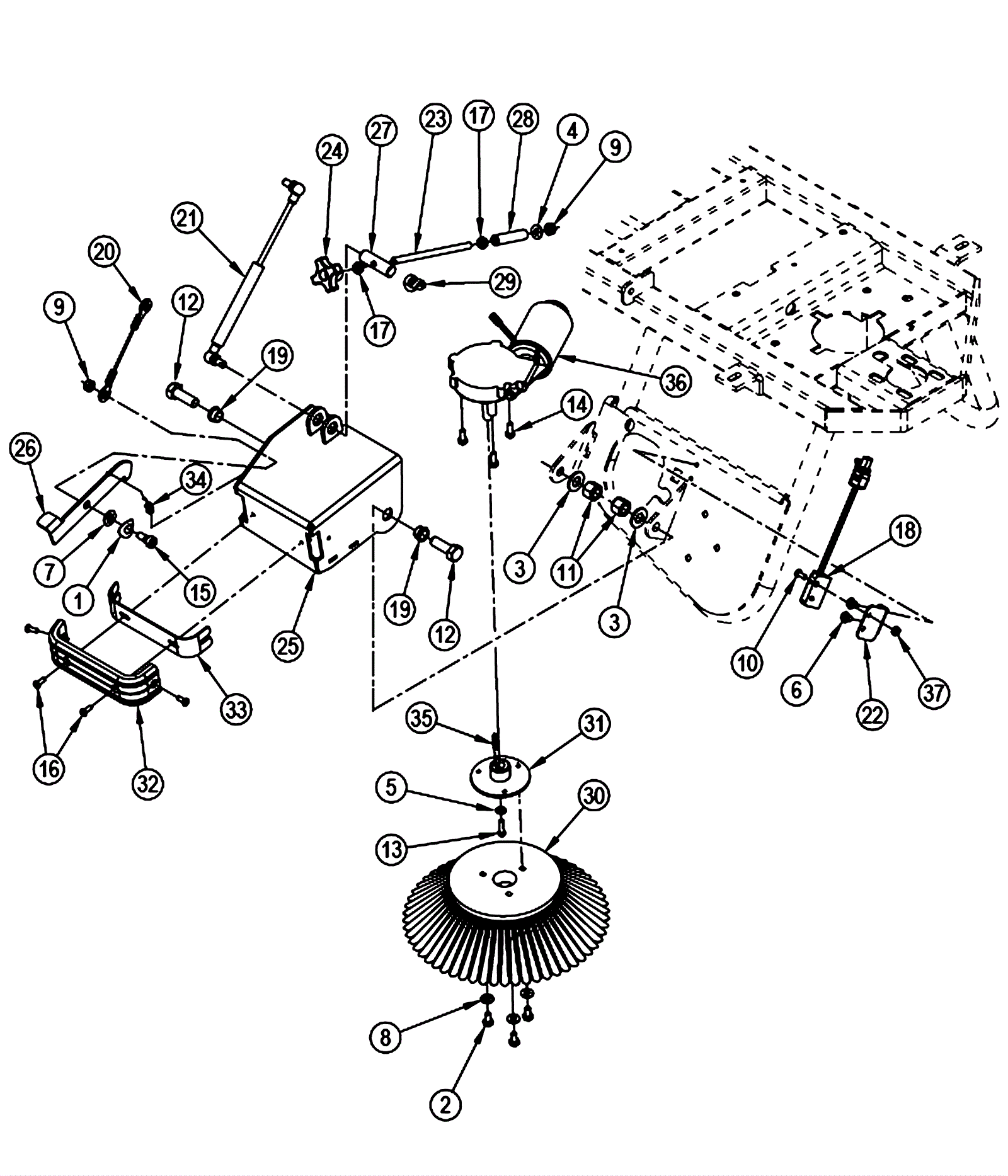

VACRIDE Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8849 Wave washer $10.52 1 usually ships 1-5 days
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 3 ships same day
3 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
4 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
5 999-1862 Washer #10 flat SAE stainless steel $0.99 1 ships same day
6 272-1562 Screw 1/4-20 x 3/5 pan head thread forming $10.85 2 ships same day
7 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
10 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
12 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread $6.60 2 ships same day
13 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 1 ships same day
14 272-1599 Bolt M6 x 15mm hex head nylok $12.31 3 usually ships 1-5 days
15 999-0646 Screw 5/16-18 x 3/8 socket head shoulder $3.08 1 ships same day
16 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 4 ships same day
17 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
18 272-8850 Proximity sensor $169.11 1 ships same day
19 172-9497 Flanged bearing $13.76 2 usually ships 17-28 days
20 272-9315 Cable assembly $13.76 1 usually ships 17-28 days
21 272-0420 Gas spring $90.43 1 ships same day
22 272-8851 Bracket $9.13 1 usually ships 1-5 days
23 272-8852 Threaded rod $8.80 1 usually ships 1-5 days
24 172-2150 Knob $10.85 1 ships same day
25 272-8853 Sidebroom arm weldment $96.80 1 usually ships 1-5 days
26 272-8854 Catch $13.20 1 usually ships 1-5 days
27 272-8855 Pin $17.60 1 usually ships 1-5 days
28 272-8856 Bushing $10.01 1 usually ships 1-5 days
29 272-8857 Strap lock $12.31 1 usually ships 1-5 days
30 272-6557 Side broom $107.80 1 usually ships 17-28 days
31 272-8858 Brush drive hub weldment $160.40 1 usually ships 17-28 days
32 272-8859 Sidebroom bumper (OBSOLETE) $7.59 1 usually ships 1-5 days
33 272-8860 Strap $14.30 1 usually ships 1-5 days
34 182-0011 Foot pedal spring $4.09 1 ships same day
35 172-3676 Square keyway $10.85 1 usually ships 17-28 days
36a 272-8861 24V side brush motor $681.45 1 usually ships 17-28 days
36b 272-8862 Carbon brush with cover (OBSOLETE) $42.17 1 usually ships 1-5 days
37 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
